Green Pin® Bow Shackle with Safety Bolt - 12 Ton Load Capacity, Hot Dip Galvanized
Green Pin® Bow Shackle with Safety Bolt - 12 Ton Load Capacity, Hot Dip Galvanized
SKU:WIR-173209
High-quality Green Pin® Bow Shackle with Safety Bolt - 12 Ton Load, Hot Dipped Galvanized Finish
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

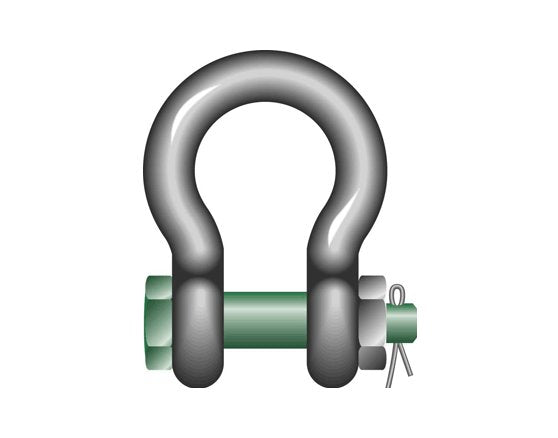

The Green Pin® Standard Bow Shackle with Safety Bolt is a premium lifting hardware designed to meet the performance requirements of US Fed. Spec. RR-C-271 and EN 13889 standards. Crafted in Holland, this shackle features a hot-dipped galvanized finish for enhanced durability. With a Working Load Limit of 12 tons, this shackle is ideal for heavy-duty lifting and towing applications. The precise dimensions and sturdy construction ensure reliable performance in demanding environments.

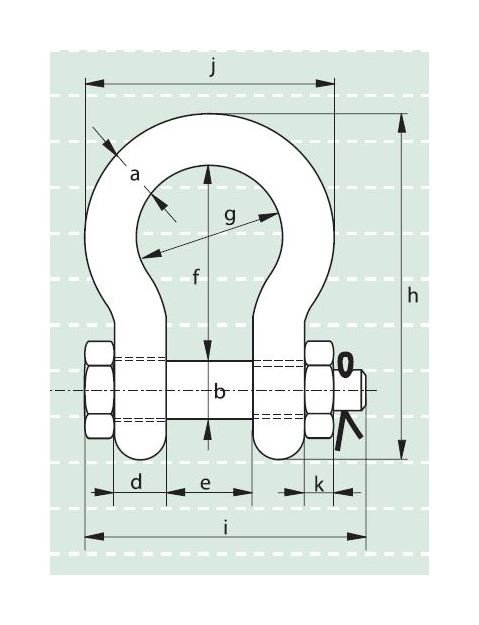

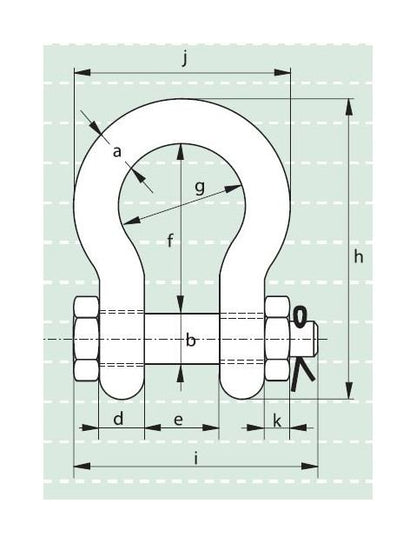

Product Specifications
Specifications Diam Bow A Inch
1-1/4

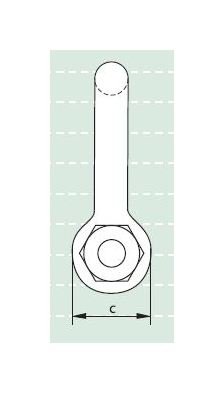

Specifications Diam Eye C Inch
2-29/32
Specifications Diam Pin B Inch
1-3/8
Specifications Length Bolt I Inch
7-1/32
Specifications Length H Inch
8-9/16
Specifications Length Inside F Inch
4-17/32
Specifications Thickness Nut K Inch
1-1/4
Specifications Weight Each Lbs
10.81
Specifications Width Bow G Inch
3-9/32
Specifications Width Eye D Inch
1-9/32
Specifications Width Inside E Inch
2
Specifications Width J Inch
6-3/32
Specifications Wll Tons
12
CAGE
0T9L4
NAICS
332722
PSC
5306
