Green Pin® Bow Shackle with Screw Collar Pin - 42.5T WLL

Green Pin® Bow Shackle with Screw Collar Pin - 42.5T WLL

SKU:WIR-eea1d0

Green Pin® Bow Shackle - 42.5T WLL, EN 13889 & US Fed. Spec. RR-C-271 compliant

Regular price $239.99
Regular price Sale price $239.99
Sale

Initiate Order

Green Pin® Bow Shackle with Screw Collar Pin - 42.5T WLL

Green Pin® Bow Shackle with Screw Collar Pin - 42.5T WLL

$239.99

Quantity: 1

Claim Your Seller Account

Green Pin® Bow Shackle with Screw Collar Pin - 42.5T WLL

Green Pin® Bow Shackle with Screw Collar Pin - 42.5T WLL

$239.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

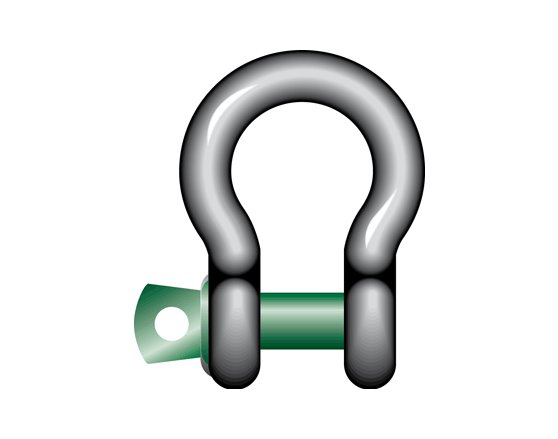

The Green Pin® Standard Shackles Bow Shackles with Screw Collar Pin are engineered to meet stringent standards, including EN 13889 and US Federal Specification RR-C-271. Crafted in Holland and finished with hot dip galvanization, these shackles are ideal for lifting and towing applications. With a Working Load Limit (WLL) of 42.5 tons, these shackles offer exceptional strength and reliability. The precise dimensions ensure a secure fit for wire rope loops, providing a dependable solution for your rigging needs.

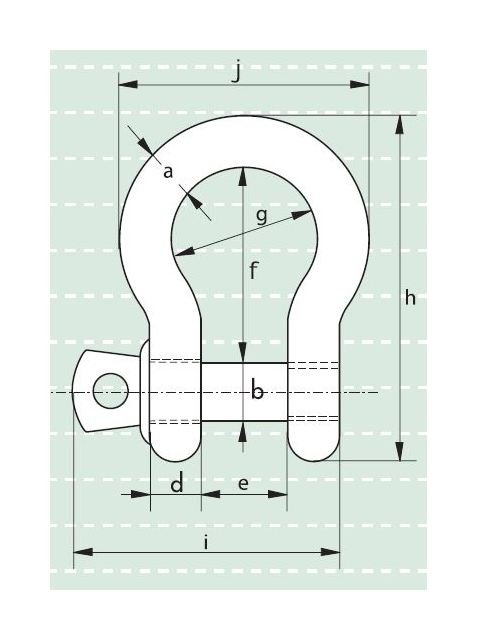

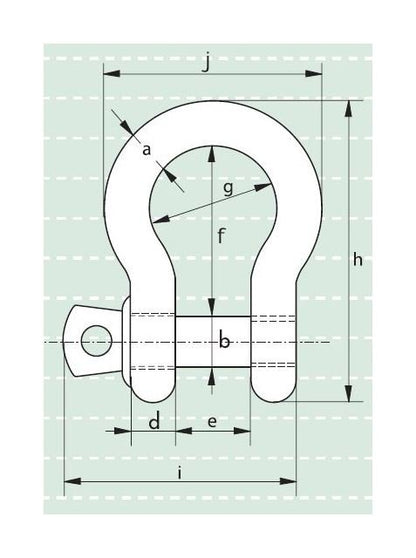

Product Specifications

Specifications Diam Bow A Inch
2-1/4

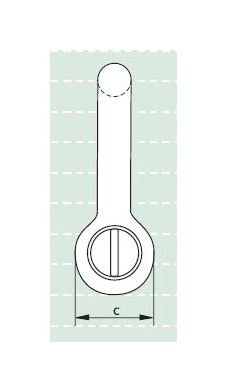

Specifications Diam Eye C Inch
5-9/32
Specifications Diam Pin B Inch
2-9/16
Specifications Length Bolt I Inch
12-5/8
Specifications Length H Inch
16-5/16
Specifications Length Inside F Inch
8-3/4
Specifications Weight Each Lbs
57.96
Specifications Width Bow G Inch
6-9/32
Specifications Width Eye D Inch
2-1/4
Specifications Width Inside E Inch
3-3/4
Specifications Width J Inch
11-5/16
Specifications Wll Tons
42.5
CAGE
0T9L4
NAICS
332999
PSC
5340
