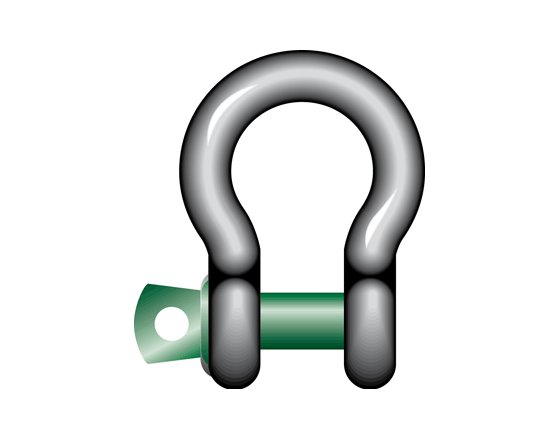

Green Pin® Bow Shackles with Screw Collar Pin

Green Pin® Bow Shackles with Screw Collar Pin

SKU:WIR-389872

Green Pin® Bow Shackles - 25T WLL, Hot Dipped Galvanized, Holland-made for lifting and towing.

Regular price $99.99
Regular price Sale price $99.99
Sale

Initiate Order

Green Pin® Bow Shackles with Screw Collar Pin

Green Pin® Bow Shackles with Screw Collar Pin

$99.99

Quantity: 1

Claim Your Seller Account

Green Pin® Bow Shackles with Screw Collar Pin

Green Pin® Bow Shackles with Screw Collar Pin

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green Pin® Bow Shackles with Screw Collar Pin are engineered to meet the rigorous requirements of US Fed. Spec. RR-C-271 and carry a Working Load Limit (WLL) of 25 tons. Crafted with hot dipped galvanized finish for superior durability, these shackles from Holland are essential for safe lifting and towing operations. With a diameter of 1-3/4 inches, a length of 12-11/32 inches, and weighing 28.31 lbs each, these shackles offer unparalleled strength and reliability for industrial applications.

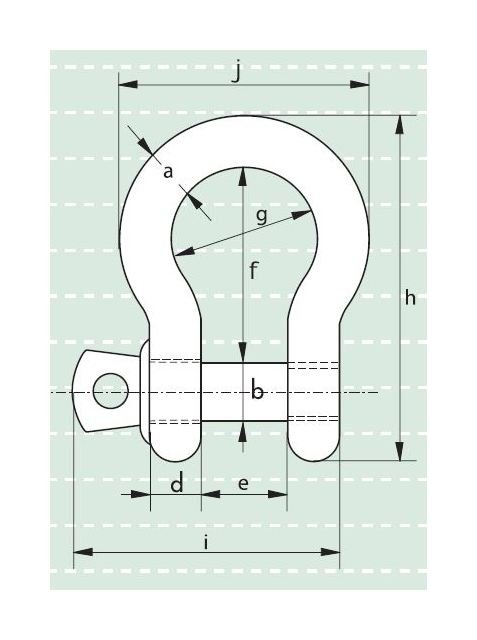

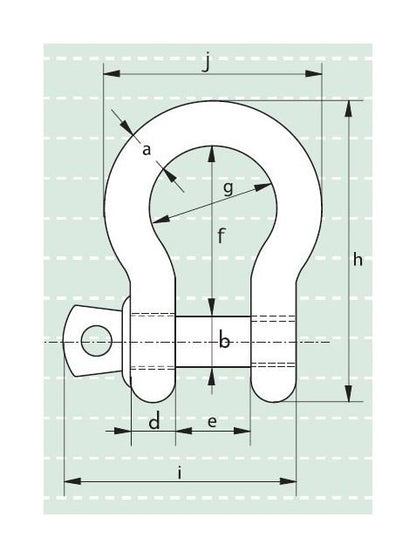

Product Specifications

Specifications Diam Bow A Inch
1-3/4

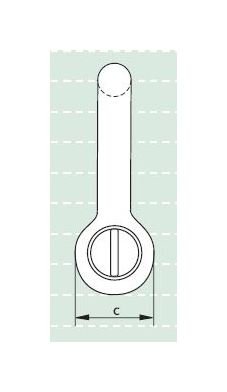

Specifications Diam Eye C Inch
4-1/8
Specifications Diam Pin B Inch
2
Specifications Length Bolt I Inch
9-13/16
Specifications Length H Inch
12-11/32
Specifications Length Inside F Inch
7
Specifications Weight Each Lbs
28.31
Specifications Width Bow G Inch
4-15/16
Specifications Width Eye D Inch
1-25/32
Specifications Width Inside E Inch
2-29/32
Specifications Width J Inch
8-29/32
Specifications Wll Tons
25
CAGE
0T9L4
NAICS
332999
PSC
5340
