Green Pin® Bow Shackles with Screw Collar Pin - Hot-Dipped Galvanized
Green Pin® Bow Shackles with Screw Collar Pin - Hot-Dipped Galvanized
SKU:WIR-a4b336
Premium Green Pin® Bow Shackles for heavy-duty lifting needs, meets US Fed. Spec RR-C-271 standards
Regular price
$54.99
Regular price
Sale price
$54.99
Unit price
per
Initiate Order
Green Pin® Bow Shackles with Screw Collar Pin - Hot-Dipped Galvanized
$54.99
Quantity: 1
Claim Your Seller Account
Green Pin® Bow Shackles with Screw Collar Pin - Hot-Dipped Galvanized
$54.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

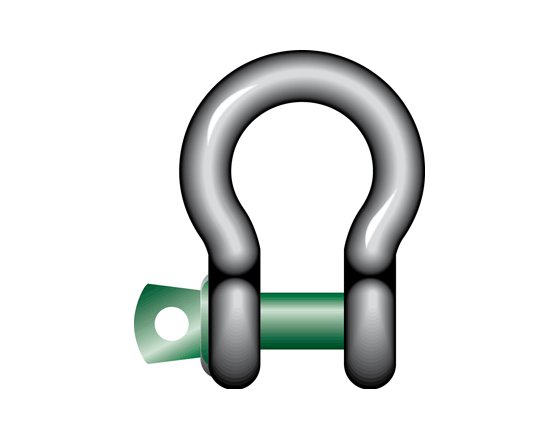

The Green Pin® Bow Shackles with Screw Collar Pin are engineered to meet the stringent performance requirements of US Federal Specification RR-C-271. With a Working Load Limit of 4.75 tons, these shackles feature a durable hot-dipped galvanized finish. Made in Holland, these shackles are designed for heavy-duty lifting and towing applications, ensuring reliability and safety in industrial operations.

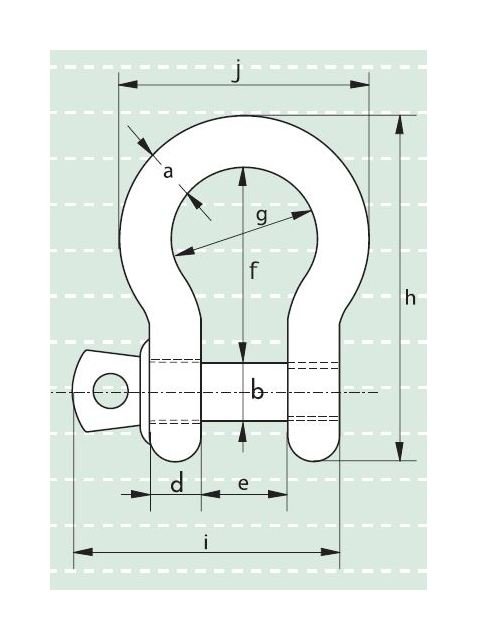

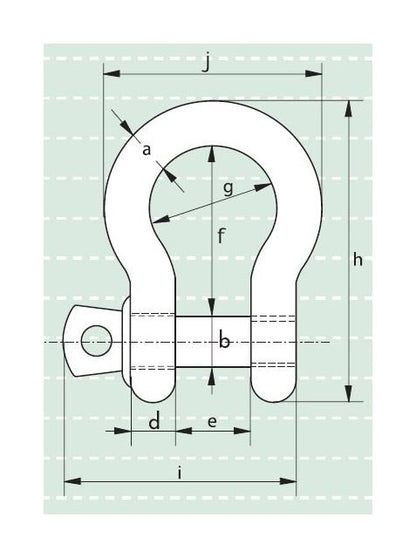

Product Specifications
Specifications Diam Bow A Inch
3/4

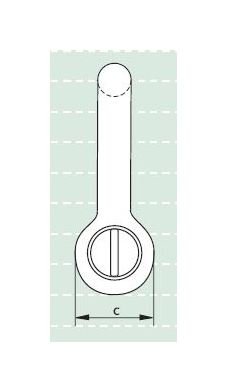

Specifications Diam Eye C Inch
1-7/8
Specifications Diam Pin B Inch
7/8
Specifications Length Bolt I Inch
4-3/16
Specifications Length H Inch
5-11/32
Specifications Length Inside F Inch
3
Specifications Weight Each Lbs
2.22
Specifications Width Bow G Inch
2
Specifications Width Eye D Inch
3/4
Specifications Width Inside E Inch
1-1/4
Specifications Width J Inch
3-23/32
Specifications Wll Tons
4.75
CAGE
0T9L4
NAICS
332999
PSC
5340
