Green Pin® Dee Shackle with Screw Collar Pin - Hot Dip Galvanized - 17T WLL

Green Pin® Dee Shackle with Screw Collar Pin - Hot Dip Galvanized - 17T WLL

SKU:WIR-9e73a1

Green Pin® Dee Shackle - Hot Dip Galvanized - 17T WLL - Premium Quality

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

Green Pin® Dee Shackle with Screw Collar Pin - Hot Dip Galvanized - 17T WLL

Green Pin® Dee Shackle with Screw Collar Pin - Hot Dip Galvanized - 17T WLL

$89.99

Quantity: 1

Claim Your Seller Account

Green Pin® Dee Shackle with Screw Collar Pin - Hot Dip Galvanized - 17T WLL

Green Pin® Dee Shackle with Screw Collar Pin - Hot Dip Galvanized - 17T WLL

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

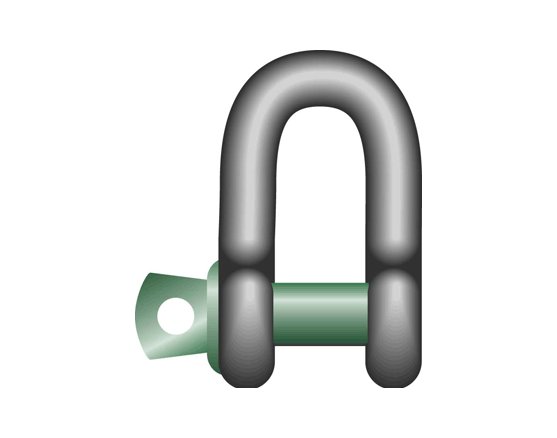

The Green Pin® Standard Shackles Dee Shackles with Screw Collar Pin are designed to meet the stringent performance requirements of US Federal Specification RR-C-271. Crafted in Holland and finished with hot-dip galvanization, these shackles offer a safe and reliable solution for lifting or towing applications. With a Working Load Limit (WLL) of 17 tons, precise dimensions, and a weight of 15.1 lbs each, these shackles ensure durability, strength, and performance. Count on Green Pin® for top-quality wire rope hardware that exceeds industry standards.

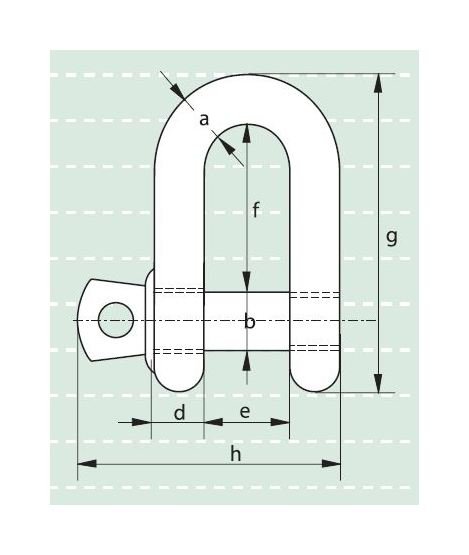

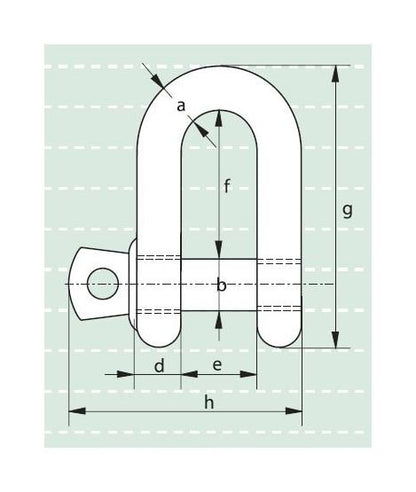

Product Specifications

Specifications Diam Bow A Inch
1-1/2

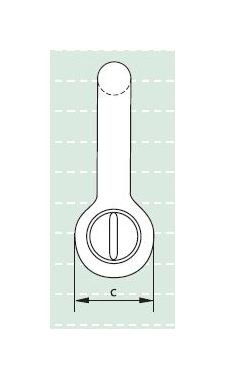

Specifications Diam Eye C Inch
3-1/2
Specifications Diam Pin B Inch
1-5/8
Specifications Length Bolt H Inch
8-3/16
Specifications Length G
9-3/8
Specifications Length Inside F Inch
5
Specifications Weight Each Lbs
15.1
Specifications Width Eye D Inch
1-17/32
Specifications Width Inside E Inch
2-11/32
Specifications Wll Tons
17
CAGE
0T9L4
NAICS
332999
PSC
5340
