Green Pin® Dee Shackle with Screw Collar Pin, Hot Dip Galvanized, 8.5 Ton WLL
Green Pin® Dee Shackle with Screw Collar Pin, Hot Dip Galvanized, 8.5 Ton WLL
SKU:WIR-2b2cc0
Green Pin® Dee Shackle with Screw Collar Pin, Hot Dip Galvanized, 8.5 Ton WLL. Meets US Fed. Spec. RR-C-271 & EN 13889.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Green Pin® Dee Shackle with Screw Collar Pin, Hot Dip Galvanized, 8.5 Ton WLL
$89.99
Quantity: 1
Claim Your Seller Account
Green Pin® Dee Shackle with Screw Collar Pin, Hot Dip Galvanized, 8.5 Ton WLL
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

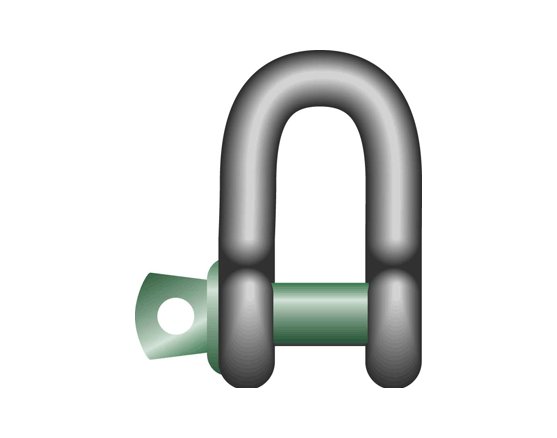

The Green Pin® Standard Dee Shackle with Screw Collar Pin is designed to meet the rigorous performance standards outlined in US Fed. Spec. RR-C-271 and EN 13889. Crafted with hot-dipped galvanized finish for enhanced durability, this shackle, made in Holland, is ideal for lifting and towing operations. With a Working Load Limit (WLL) of 8.5 tons, this shackle offers secure attachment and reliable performance in demanding industrial settings.
Product Specifications

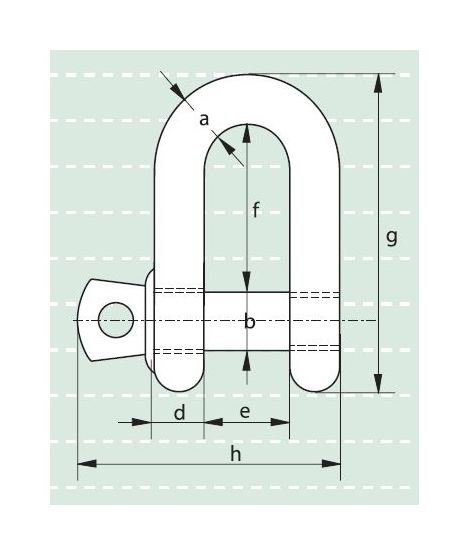

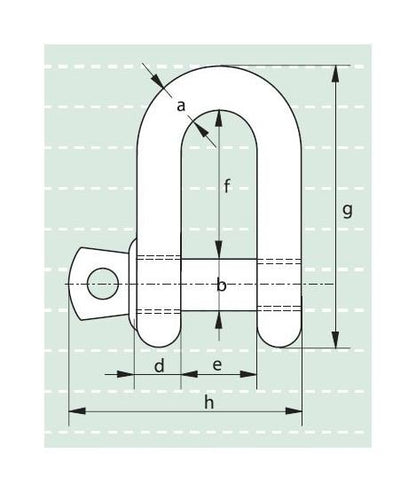

Specifications Diam Bow A Inch
1

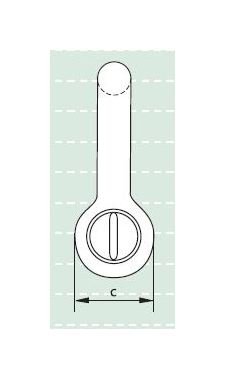

Specifications Diam Eye C Inch
2-11/32
Specifications Diam Pin B Inch
1-1/8
Specifications Length Bolt H Inch
5-9/16
Specifications Length G
6-5/16
Specifications Length Inside F Inch
3-11/32
Specifications Weight Each Lbs
4.59
Specifications Width Eye D Inch
1
Specifications Width Inside E Inch
1-23/32
Specifications Wll Tons
8.5
CAGE
0T9L4
NAICS
332999
PSC
5340
