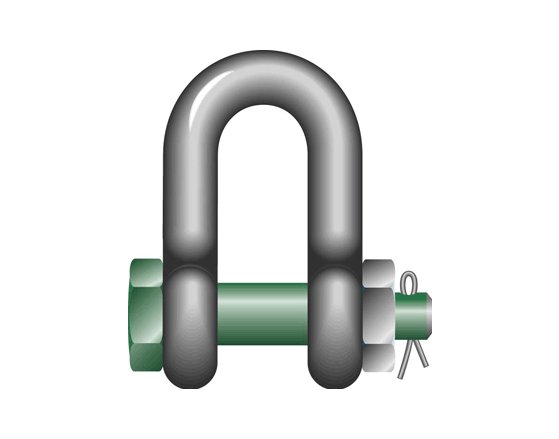

Green Pin® Galvanized Safety Bolt Dee Shackle (25 Ton WLL)
Green Pin® Galvanized Safety Bolt Dee Shackle (25 Ton WLL)
SKU:WIR-d6b700
Premium Green Pin® Dee Shackle with Safety Bolt - 25 Ton WLL, Hot Dipped Galvanized Finish, Meets EN 13889 & US Fed. Spec. RR-C-271
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.



The Green Pin® Standard Shackles Dee Shackles with Safety Bolt are engineered to meet the stringent performance requirements of US Fed. Spec. RR-C-271 and the standard EN 13889. With a working load limit (WLL) of 25 tons, these shackles feature a hot-dipped galvanized finish for superior corrosion resistance. Made in Holland, these shackles are ideal for lifting or towing applications, providing durability and reliability in demanding environments.

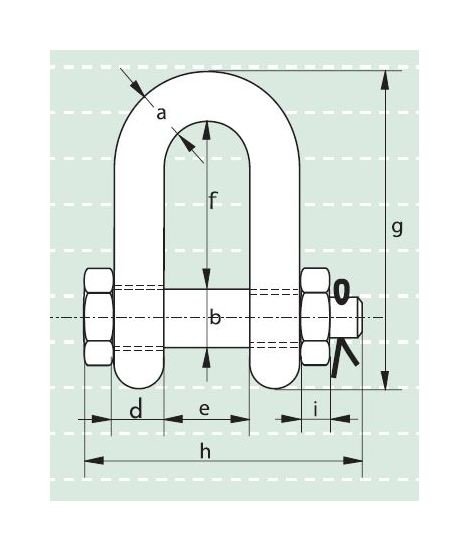

Product Specifications
Specifications Diam Bow A Inch
1-3/4

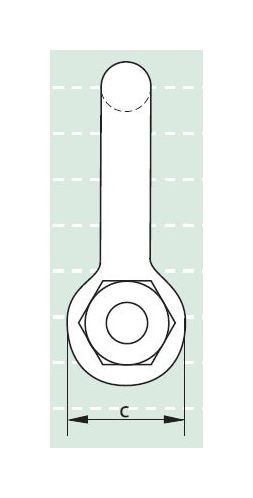

Specifications Diam Eye C Inch
4-1/8
Specifications Diam Pin B Inch
2
Specifications Length Bolt H Inch
9-19/32
Specifications Length G
11-5/32
Specifications Length Inside F Inch
5-7/8
Specifications Thickness Nut I Inch
1-15/16
Specifications Weight Each Lbs
29.21
Specifications Width Eye D Inch
1-25/32
Specifications Width Inside E Inch
2-29/32
Specifications Wll Tons
25
CAGE
0T9L4
NAICS
332722
PSC
5306
