Green Pin® Hot Dipped Galvanized Standard Dee Shackles with Safety Bolt - 55 Ton WLL

Green Pin® Hot Dipped Galvanized Standard Dee Shackles with Safety Bolt - 55 Ton WLL

SKU:WIR-0980a7

Green Pin® Hot Dipped Galvanized Standard Dee Shackles with Safety Bolt - 55 Ton WLL. Meets US Fed. Spec. RR-C-271 & EN 13889 standards.

Regular price $189.99
Regular price Sale price $189.99
Sale

Initiate Order

Green Pin® Hot Dipped Galvanized Standard Dee Shackles with Safety Bolt - 55 Ton WLL

Green Pin® Hot Dipped Galvanized Standard Dee Shackles with Safety Bolt - 55 Ton WLL

$189.99

Quantity: 1

Claim Your Seller Account

Green Pin® Hot Dipped Galvanized Standard Dee Shackles with Safety Bolt - 55 Ton WLL

Green Pin® Hot Dipped Galvanized Standard Dee Shackles with Safety Bolt - 55 Ton WLL

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

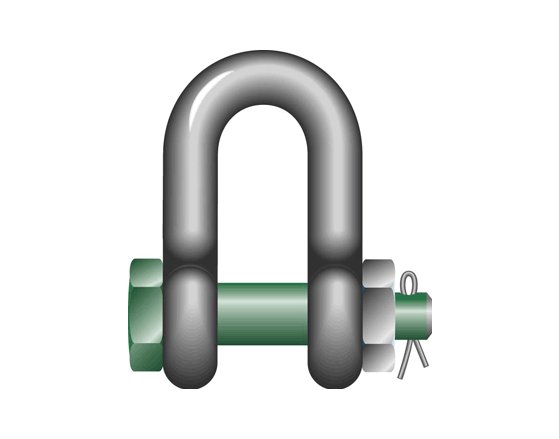

The Green Pin® Standard Dee Shackles with Safety Bolt are engineered to meet the rigorous performance requirements of US Fed. Spec. RR-C-271 and EN 13889 standards. Made in Holland and finished with hot-dipped galvanization, these shackles ensure reliable durability in lifting and towing applications. With a Working Load Limit (WLL) of 55 tons, a 2-1/2" bow diameter, and a 2-3/4" pin diameter, these shackles provide robust strength and security for wire rope loops. Trust in the quality and precision of Green Pin for your critical lifting needs.

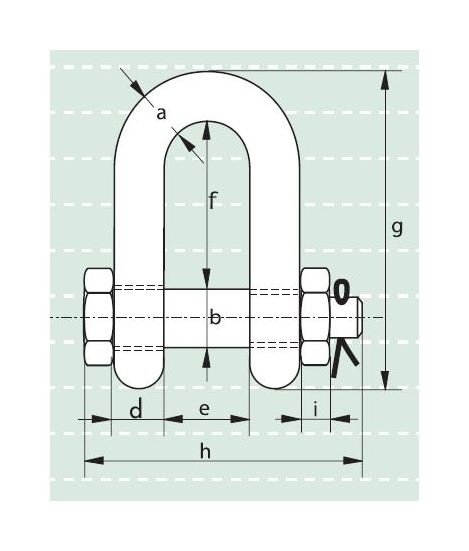

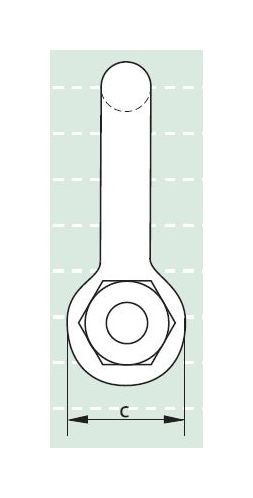

Product Specifications

Specifications Diam Bow A Inch
2-1/2
Specifications Diam Eye C Inch
5-3/4
Specifications Diam Pin B Inch
2-3/4
Specifications Length Bolt H Inch
13
Specifications Length G
15/23/32
Specifications Length Inside F Inch
8
Specifications Thickness Nut I Inch
1-5/16
Specifications Weight Each Lbs
77.89
Specifications Width Eye D Inch
2-9/16
Specifications Width Inside E Inch
4-1/8
Specifications Wll Tons
55
CAGE
0T9L4
NAICS
332722
PSC
5306
