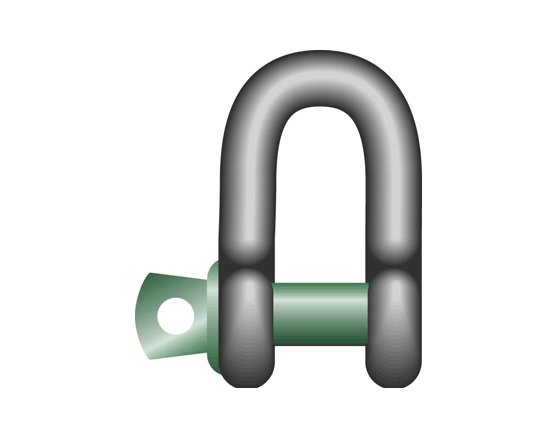

Green Pin® Hot Dipped Galvanized Standard Shackles Dee with Screw Collar Pin

Green Pin® Hot Dipped Galvanized Standard Shackles Dee with Screw Collar Pin

SKU:WIR-dbe921

High-quality Green Pin® Shackles for secure lifting and towing applications. Hot-dipped galvanized, EN 13889 and US Fed. Spec. RR-C-271 compliant.

Regular price $349.99
Regular price Sale price $349.99
Sale

Initiate Order

Green Pin® Hot Dipped Galvanized Standard Shackles Dee with Screw Collar Pin

Green Pin® Hot Dipped Galvanized Standard Shackles Dee with Screw Collar Pin

$349.99

Quantity: 1

Claim Your Seller Account

Green Pin® Hot Dipped Galvanized Standard Shackles Dee with Screw Collar Pin

Green Pin® Hot Dipped Galvanized Standard Shackles Dee with Screw Collar Pin

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green Pin® Standard Shackles Dee Shackles with Screw Collar Pin are designed to meet the highest performance requirements, compliant with US Federal Specification RR-C-271 and EN 13889 standards. Made in Holland, these shackles are hot-dipped galvanized for enhanced durability and corrosion resistance. With a Working Load Limit (WLL) of 55 tons, these shackles are ideal for heavy lifting and towing applications. The precise dimensions ensure a secure fit, with a Diameter bow of 2-1/2 inches, Diameter pin of 2-3/4 inches, and eye Width of 5-3/4 inches among other specifications.

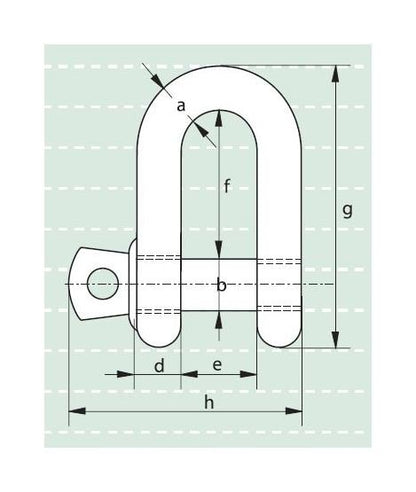

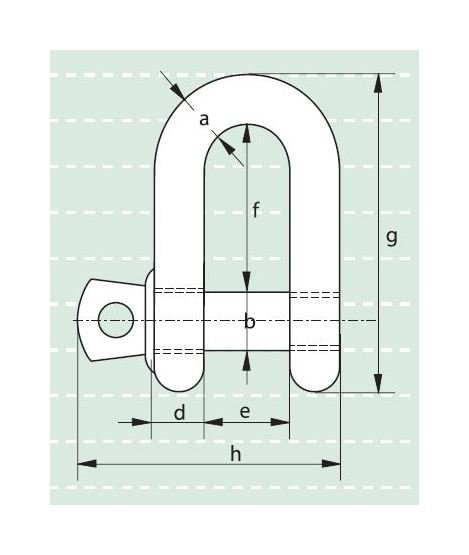

Product Specifications

Specifications Diam Bow A Inch
2-1/2

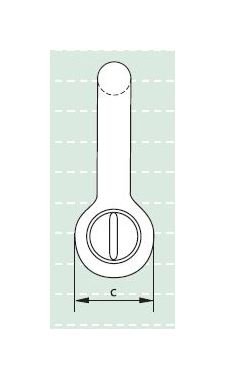

Specifications Diam Eye C Inch
5-3/4
Specifications Diam Pin B Inch
2-3/4
Specifications Length Bolt H Inch
14
Specifications Length G
15-23/32
Specifications Length Inside F Inch
8
Specifications Weight Each Lbs
71.98
Specifications Width Eye D Inch
2-9/16
Specifications Width Inside E Inch
4-1/8
Specifications Wll Tons
55
CAGE
0T9L4
NAICS
332999
PSC
5340
