Green Pin® Standard Bow Shackles with Safety Bolt
Green Pin® Standard Bow Shackles with Safety Bolt
SKU:WIR-630b76
High-quality Green Pin® Bow Shackles with Safety Bolt, hot-dipped galvanized finish, 1.5-ton WLL, ideal for lifting and towing.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Green Pin® Standard Bow Shackles with Safety Bolt
$29.99
Quantity: 1
Claim Your Seller Account
Green Pin® Standard Bow Shackles with Safety Bolt
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

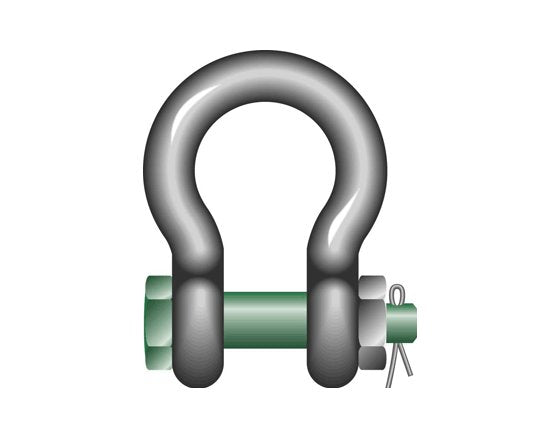

The Green Pin® Standard Bow Shackles with Safety Bolt is a high-quality shackle designed to meet the rigorous performance requirements of US Federal Specification RR-C-271. Made in Holland and finished with hot-dipped galvanization for enhanced durability, these shackles have a Working Load Limit (WLL) of 1.5 tons. Ideal for lifting and towing applications, the shackles feature precise dimensions and a safety bolt mechanism for added security.

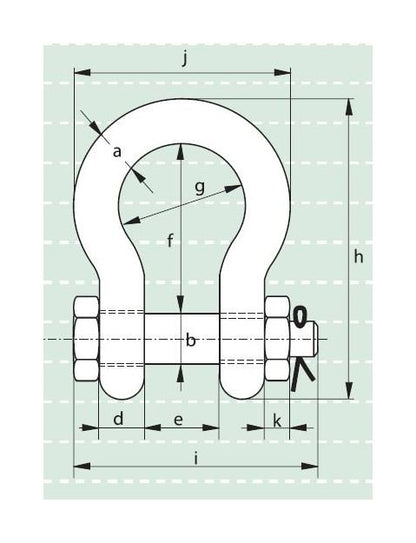

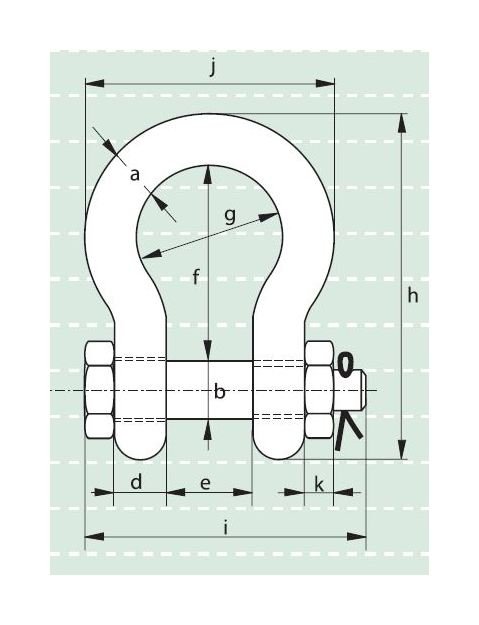

Product Specifications
Specifications Diam Bow A Inch
7/16

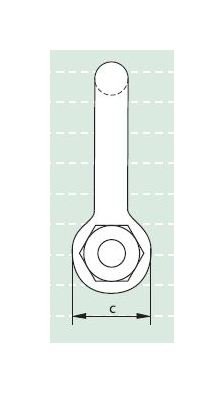

Specifications Diam Eye C Inch
1-1/32
Specifications Diam Pin B Inch
1/2
Specifications Length Bolt I Inch
2-11/16
Specifications Length H Inch
3-5/32
Specifications Length Inside F Inch
1-23/32
Specifications Thickness Nut K Inch
7/16
Specifications Weight Each Lbs
0.48
Specifications Width Bow G Inch
1-5/32
Specifications Width Eye D Inch
7/16
Specifications Width Inside E Inch
3/4
Specifications Width J Inch
2-1/8
Specifications Wll Tons
1.5
CAGE
0T9L4
NAICS
332722
PSC
5306
