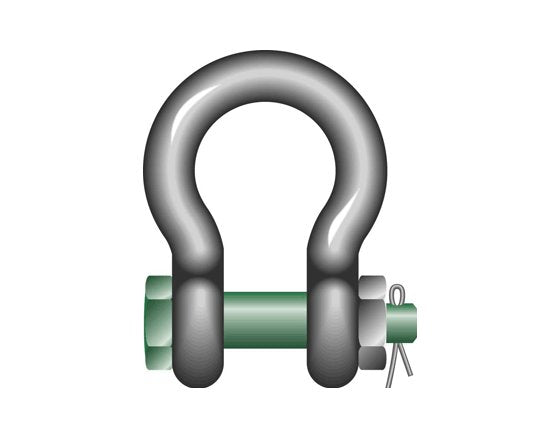

Green Pin® Standard Bow Shackles with Safety Bolt, 17 Ton Capacity

Green Pin® Standard Bow Shackles with Safety Bolt, 17 Ton Capacity

SKU:WIR-b53478

Discover top-quality, hot-dip galvanized Green Pin® Bow Shackles with Safety Bolt. Ideal for lifting/towing, meeting US Fed. Spec. RR-C-271.

Regular price $129.99
Regular price Sale price $129.99
Sale

Initiate Order

Green Pin® Standard Bow Shackles with Safety Bolt, 17 Ton Capacity

Green Pin® Standard Bow Shackles with Safety Bolt, 17 Ton Capacity

$129.99

Quantity: 1

Claim Your Seller Account

Green Pin® Standard Bow Shackles with Safety Bolt, 17 Ton Capacity

Green Pin® Standard Bow Shackles with Safety Bolt, 17 Ton Capacity

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green Pin® Standard Bow Shackles with Safety Bolt are expertly crafted to meet the performance requirements of US Fed. Spec. RR-C-271. These shackles, hot-dip galvanized for enhanced durability, are manufactured in Holland and designed for lifting or towing applications. With a Working Load Limit (WLL) of 17 tons and precise dimensions, including a 1-1/2" bow diameter and a 1-5/8" pin diameter, these shackles are reliable and efficient for a wide range of heavy-duty tasks.

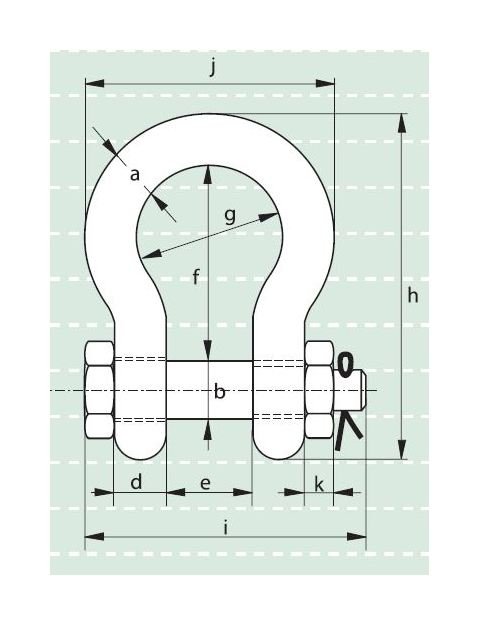

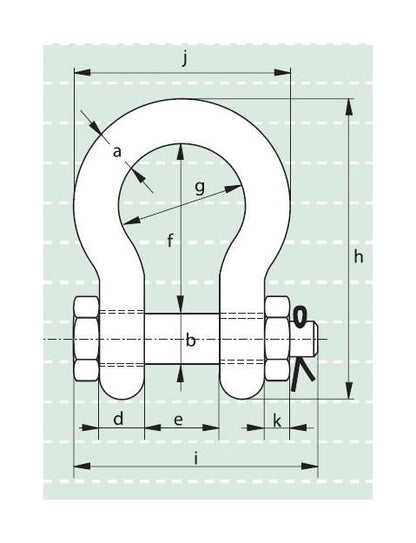

Product Specifications

Specifications Diam Bow A Inch
1-1/2

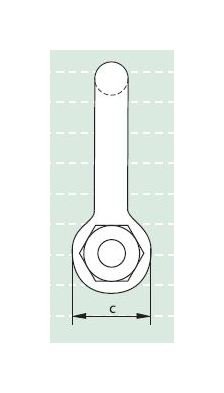

Specifications Diam Eye C Inch
3-1/2
Specifications Diam Pin B Inch
1-5/8
Specifications Length Bolt I Inch
7-15/16
Specifications Length H Inch
10-5/16
Specifications Length Inside F Inch
5-3/4
Specifications Thickness Nut K Inch
3/4
Specifications Weight Each Lbs
18.06
Specifications Width Bow G Inch
3-29/32
Specifications Width Eye D Inch
1-17/32
Specifications Width Inside E Inch
2-11/32
Specifications Width J Inch
7-3/16
Specifications Wll Tons
17
CAGE
0T9L4
NAICS
332722
PSC
5306
