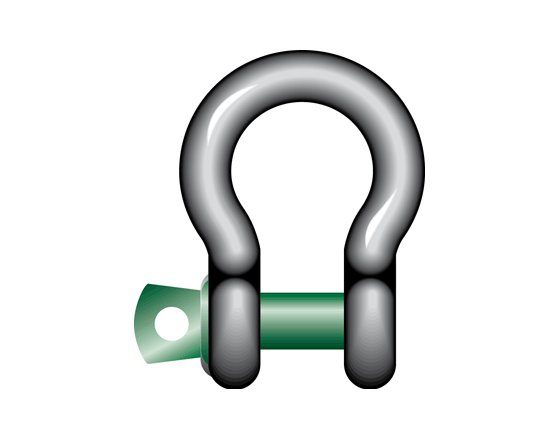

Green Pin® Standard Bow Shackles with Screw Collar Pin

Green Pin® Standard Bow Shackles with Screw Collar Pin

SKU:WIR-993933

High-performance Green Pin® Standard Bow Shackles with Screw Collar Pin for lifting/towing, meeting EN 13889 & US Fed. Spec. RR-C-271.

Regular price $45.99
Regular price Sale price $45.99
Sale

Initiate Order

Green Pin® Standard Bow Shackles with Screw Collar Pin

Green Pin® Standard Bow Shackles with Screw Collar Pin

$45.99

Quantity: 1

Claim Your Seller Account

Green Pin® Standard Bow Shackles with Screw Collar Pin

Green Pin® Standard Bow Shackles with Screw Collar Pin

$45.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green Pin® Standard Bow Shackles with Screw Collar Pin is manufactured in Holland, meeting the stringent performance requirements of US Fed. Spec. RR-C-271 and EN 13889 standards. These hot-dipped galvanized shackles are designed to be used on wire rope loops for lifting or towing applications. With a Working Load Limit (WLL) of 3.25 tons, precise dimensions, and a durable construction, these shackles ensure reliability and safety in industrial operations.

Product Specifications

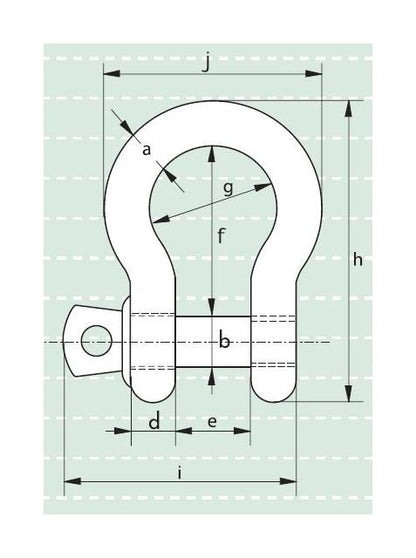

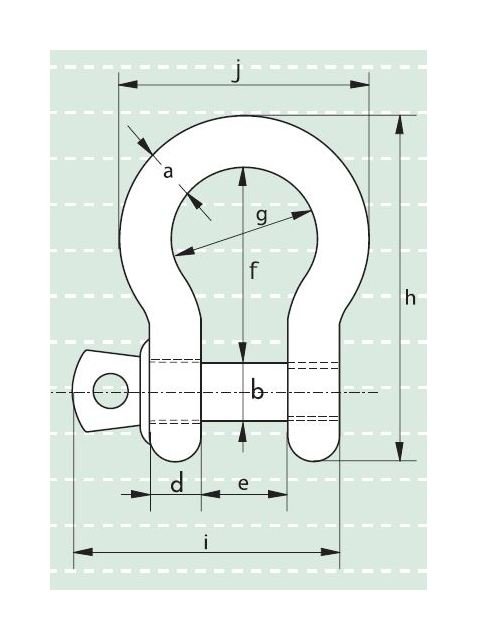

Specifications Diam Bow A Inch
5/8

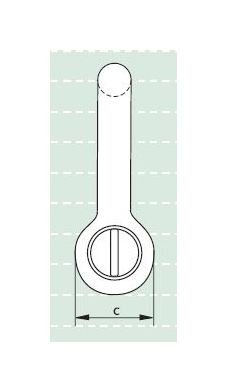

Specifications Diam Eye C Inch
1-19/32
Specifications Diam Pin B Inch
3/4
Specifications Length Bolt I Inch
3-11/16
Specifications Length H Inch
4-1/2
Specifications Length Inside F Inch
2-17/32
Specifications Weight Each Lbs
1.38
Specifications Width Bow G Inch
1-23/32
Specifications Width Eye D Inch
5/8
Specifications Width Inside E Inch
1-3/32
Specifications Width J Inch
3-1/8
Specifications Wll Tons
3.25
CAGE
0T9L4
NAICS
332999
PSC
5340
