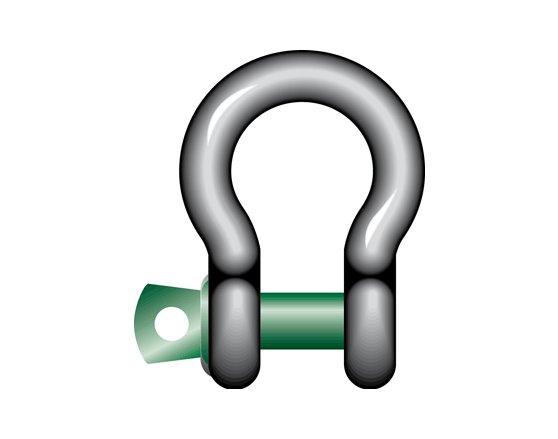

Green Pin® Standard Bow Shackles with Screw Collar Pin
Green Pin® Standard Bow Shackles with Screw Collar Pin
SKU:WIR-c976a6
High-performance Green Pin® Bow Shackles with Screw Collar Pin, WLL 55 tons, hot-dipped galvanized, ideal for lifting and towing.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Green Pin® Standard Bow Shackles with Screw Collar Pin
$1,499.99
Quantity: 1
Claim Your Seller Account
Green Pin® Standard Bow Shackles with Screw Collar Pin
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Green Pin® Standard Bow Shackles with Screw Collar Pin are engineered to meet the demanding requirements of US Fed. Spec. RR-C-271 and European standard EN 13889. With a Working Load Limit (WLL) of 55 tons, hot-dipped galvanized finish, and precision dimensions, these shackles are ideal for lifting and towing applications. Made in Holland, these shackles provide reliable performance and durability in critical operations.
Product Specifications

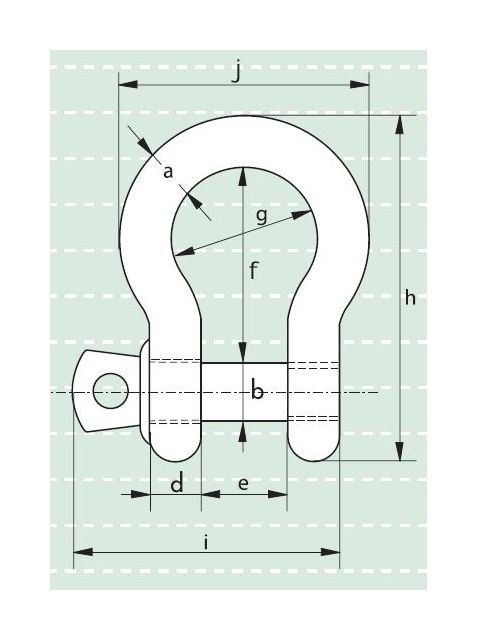

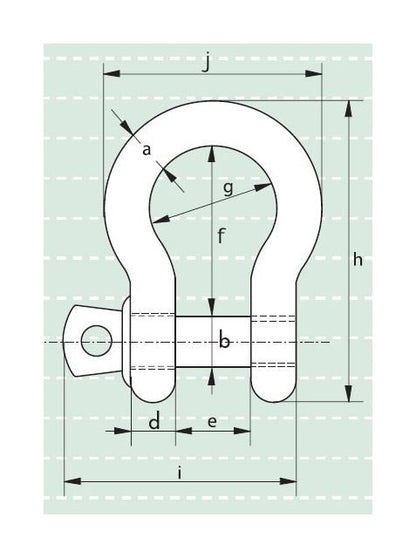

Specifications Diam Bow A Inch
2-1/2

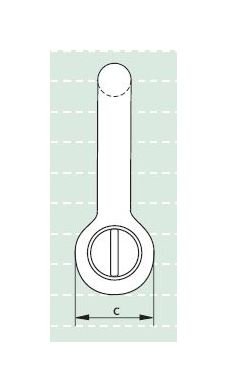

Specifications Diam Eye C Inch
5-3/4
Specifications Diam Pin B Inch
2-3/4
Specifications Length Bolt I Inch
14
Specifications Length H Inch
18-1/4
Specifications Length Inside F Inch
10-1/4
Specifications Weight Each Lbs
82.89
Specifications Width Bow G Inch
7-3/32
Specifications Width Eye D Inch
2-9/16
Specifications Width Inside E Inch
4-1/8
Specifications Width J Inch
12-15/16
Specifications Wll Tons
55
CAGE
0T9L4
NAICS
332999
PSC
5340
