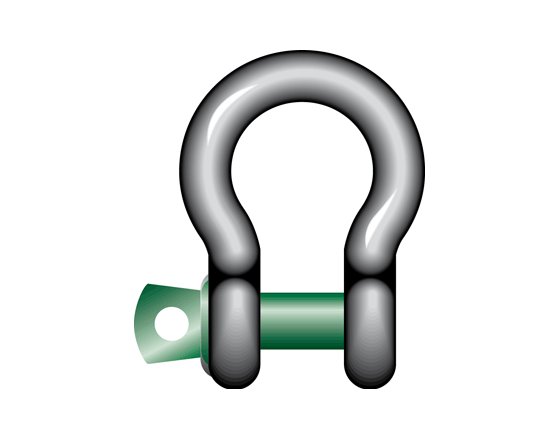

Green Pin® Standard Bow Shackles with Screw Collar Pin - Hot Dipped Galvanized
Green Pin® Standard Bow Shackles with Screw Collar Pin - Hot Dipped Galvanized
SKU:WIR-73bae3
Premium Green Pin® Bow Shackles for heavy lifting, towing. Exceeds US Fed. Spec. RR-C-271 standards.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Green Pin® Standard Bow Shackles with Screw Collar Pin - Hot Dipped Galvanized
$69.99
Quantity: 1
Claim Your Seller Account
Green Pin® Standard Bow Shackles with Screw Collar Pin - Hot Dipped Galvanized
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Green Pin® Standard Bow Shackles are engineered to meet the stringent performance requirements of US Federal Spec. RR-C-271 and European standard EN 13889. Crafted in Holland, these hot-dipped galvanized shackles offer a Working Load Limit (WLL) of 13.5 tons, making them ideal for heavy-duty lifting and towing applications. With precise dimensions and a sturdy construction, these shackles ensure reliable performance and safety in industrial settings.

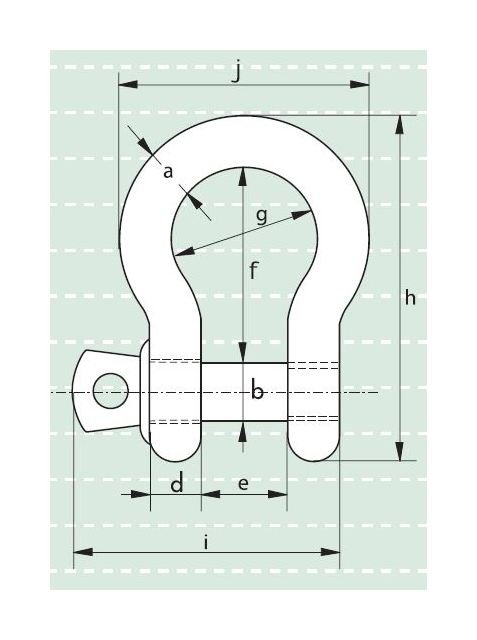

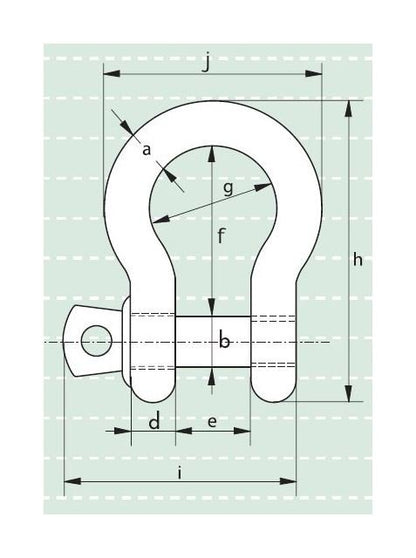

Product Specifications
Specifications Diam Bow A Inch
1-3/8

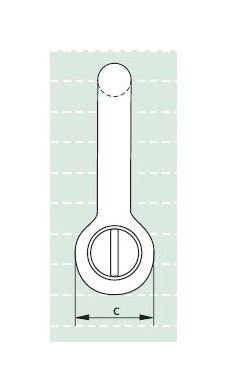

Specifications Diam Eye C Inch
3-5/32
Specifications Diam Pin B Inch
1-1/2
Specifications Length Bolt I Inch
7-9/16
Specifications Length H Inch
9-7/16
Specifications Length Inside F Inch
5-1/4
Specifications Weight Each Lbs
12.24
Specifications Width Bow G Inch
3-5/8
Specifications Width Eye D Inch
1-3/8
Specifications Width Inside E Inch
2-1/4
Specifications Width J Inch
6-11/16
Specifications Wll Tons
13.5
CAGE
0T9L4
NAICS
332999
PSC
5340
