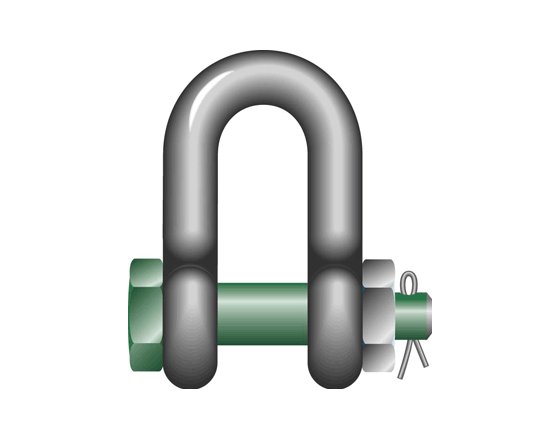

Green Pin® Standard Shackles Dee Shackles with Safety Bolt - 35 Ton Capacity
Green Pin® Standard Shackles Dee Shackles with Safety Bolt - 35 Ton Capacity
SKU:WIR-7bf8a0
Heavy-duty Green Pin® Dee Shackles with Safety Bolt - 35 Ton Capacity, hot-dip galvanized finish, Holland-made
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.



The Green Pin® Standard Shackles Dee Shackles with Safety Bolt are designed to meet stringent performance requirements, including those of US Fed. Spec. RR-C-271. With a Working Load Limit (WLL) of 35 tons, hot dipped galvanized finish, and precision engineering made in Holland, these shackles are ideal for heavy-duty lifting and towing applications. Their robust construction, specific dimensions, and safety features make them a reliable choice for industrial and institutional use.

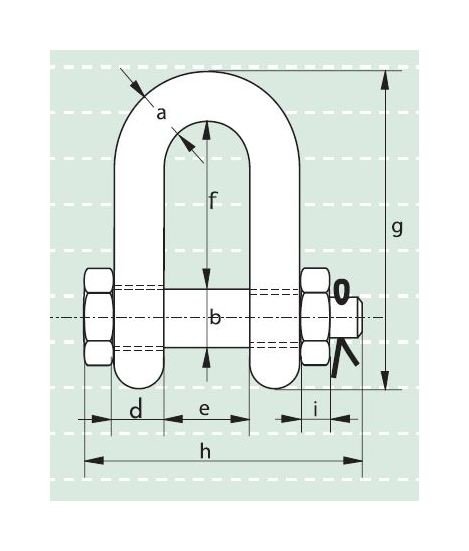

Product Specifications
Specifications Diam Bow A Inch
2

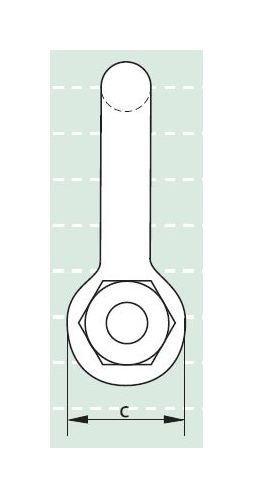

Specifications Diam Eye C Inch
4-11/32
Specifications Diam Pin B Inch
2-1/4
Specifications Length Bolt H Inch
10-5/8
Specifications Length G
13-1/8
Specifications Length Inside F Inch
6-3/4
Specifications Thickness Nut I Inch
1-3/32
Specifications Weight Each Lbs
40.86
Specifications Width Eye D Inch
1-31/32
Specifications Width Inside E Inch
3-9/32
Specifications Wll Tons
35
CAGE
0T9L4
NAICS
332722
PSC
5306
