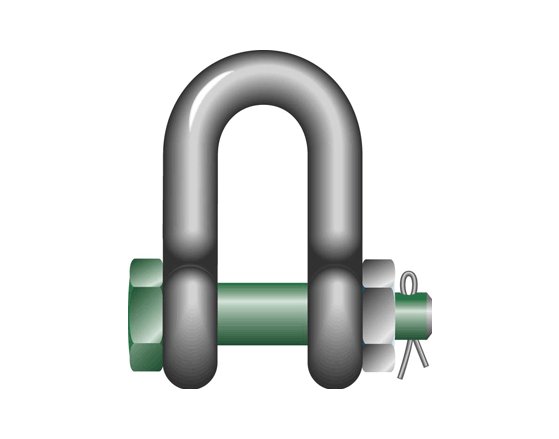

Green Pin® Standard Shackles with Safety Bolt - Hot Dip Galvanized

Green Pin® Standard Shackles with Safety Bolt - Hot Dip Galvanized

SKU:WIR-cf073c

Premium Green Pin® Standard Shackles with Safety Bolt - Hot Dip Galvanized, meet EN 13889 & US Fed. Spec. RR-C-271 standards.

Regular price $129.99
Regular price Sale price $129.99
Sale

Initiate Order

Green Pin® Standard Shackles with Safety Bolt - Hot Dip Galvanized

Green Pin® Standard Shackles with Safety Bolt - Hot Dip Galvanized

$129.99

Quantity: 1

Claim Your Seller Account

Green Pin® Standard Shackles with Safety Bolt - Hot Dip Galvanized

Green Pin® Standard Shackles with Safety Bolt - Hot Dip Galvanized

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green Pin® Standard Shackles with Safety Bolt are expertly crafted in Holland to meet the stringent requirements of EN 13889 and US Fed. Spec. RR-C-271. These dee shackles are hot-dip galvanized for enhanced durability and corrosion resistance, making them ideal for heavy-duty lifting and towing applications. With a Working Load Limit (WLL) of 42.5 tons and precise dimensions, these shackles offer unmatched reliability and safety in demanding environments.

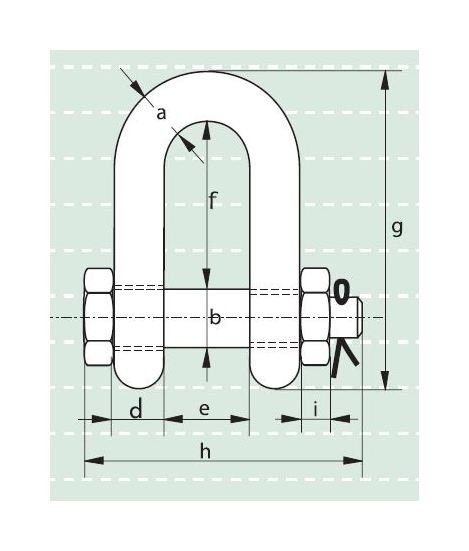

Product Specifications

Specifications Diam Bow A Inch
2-1/4

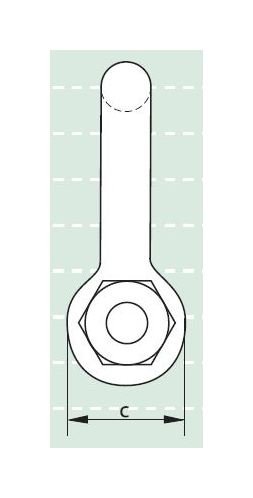

Specifications Diam Eye C Inch
5-9/32
Specifications Diam Pin B Inch
2-9/16
Specifications Length Bolt H Inch
11-29/32
Specifications Length G
14-5/32
Specifications Length Inside F Inch
7-1/2
Specifications Thickness Nut I Inch
1-3/16
Specifications Weight Each Lbs
57.19
Specifications Width Eye D Inch
2-1/4
Specifications Width Inside E Inch
3-3/4
Specifications Wll Tons
42.5
CAGE
0T9L4
NAICS
332722
PSC
5306
