Green Pin Standard Bow Shackle with Safety Bolt
Green Pin Standard Bow Shackle with Safety Bolt
SKU:WIR-f5ba65
High-performance Green Pin® Bow Shackle for lifting and towing, hot-dipped galvanized finish, EN 13889 and US Fed. Spec. RR-C-271 compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Green Pin Standard Bow Shackle with Safety Bolt
$59.99
Quantity: 1
Claim Your Seller Account
Green Pin Standard Bow Shackle with Safety Bolt
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

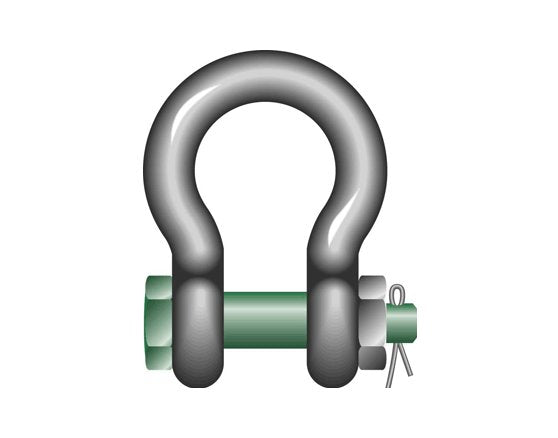

The Green Pin® Standard Bow Shackle with Safety Bolt is a top-quality wire rope hardware designed for lifting and towing applications. Compliant with EN 13889 and US Fed. Spec. RR-C-271 standards, this shackle features a hot-dipped galvanized finish for durability. With a working load limit of 6.5 tons and precise dimensions, this shackle offers reliability and safety in heavy-duty settings.

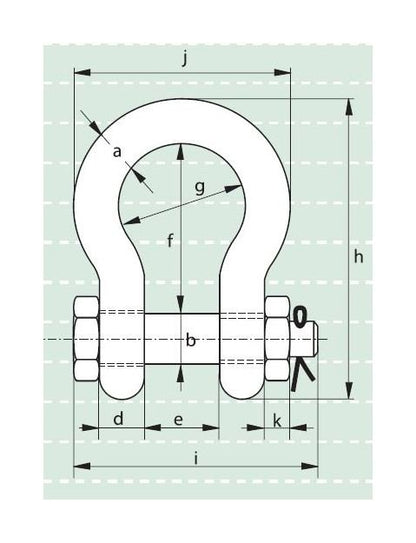

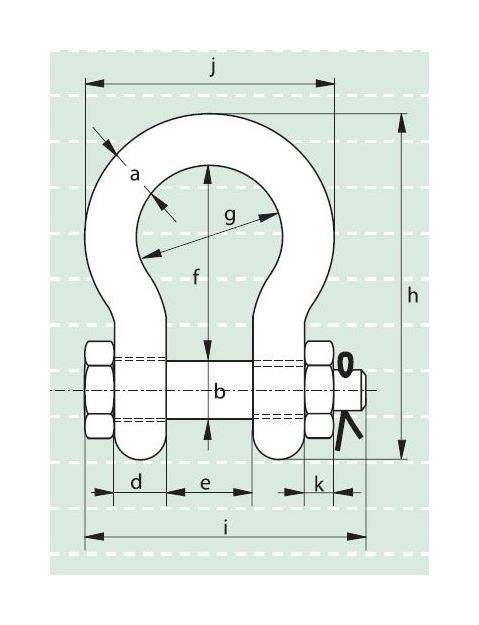

Product Specifications
Specifications Diam Bow A Inch
7/8

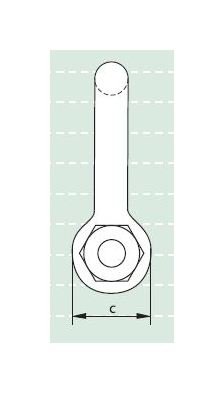

Specifications Diam Eye C Inch
2-3/32
Specifications Diam Pin B Inch
1
Specifications Length Bolt I Inch
5-5/32
Specifications Length H Inch
6-5/32
Specifications Length Inside F Inch
3-9/32
Specifications Thickness Nut K Inch
29/32
Specifications Weight Each Lbs
3.9
Specifications Width Bow G Inch
2-9/32
Specifications Width Eye D Inch
7/8
Specifications Width Inside E Inch
1-7/16
Specifications Width J Inch
4-3/16
Specifications Wll Tons
6.5
CAGE
0T9L4
NAICS
332722
PSC
5306
