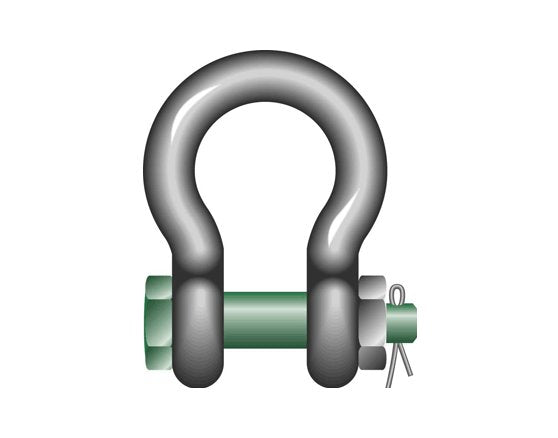

Green Pin Standard Bow Shackles with Safety Bolt
Green Pin Standard Bow Shackles with Safety Bolt
SKU:WIR-ef2e39
High-quality Green Pin Bow Shackles for secure lifting & towing, meets EN 13889 & U.S. Fed Spec RR-C-271 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Green Pin Standard Bow Shackles with Safety Bolt
$24.99
Quantity: 1
Claim Your Seller Account
Green Pin Standard Bow Shackles with Safety Bolt
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Green Pin Standard Bow Shackles with Safety Bolt are engineered to meet the stringent quality standards of EN 13889 and US Fed. Spec. RR-C-271. Each shackle is hot-dipped galvanized for enhanced durability. Made in Holland, these shackles ensure reliable performance in lifting and towing applications. With a Working Load Limit of 0.75 tons, these shackles offer a secure and versatile solution for wire rope loops.

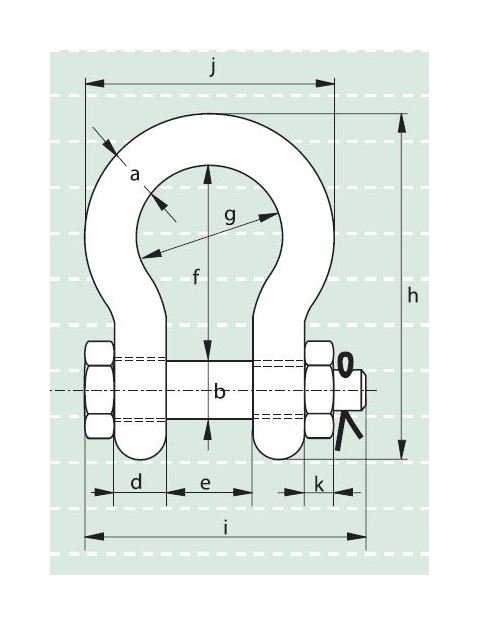

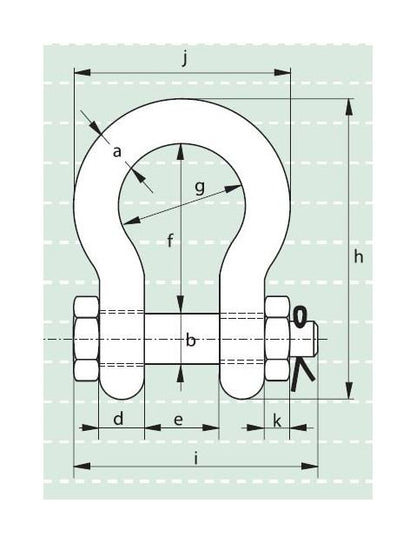

Product Specifications
Specifications Diam Bow A Inch
5/16

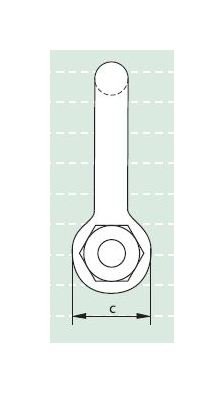

Specifications Diam Eye C Inch
13/16
Specifications Diam Pin B Inch
3/8
Specifications Length Bolt I Inch
2
Specifications Length H Inch
2-3/8
Specifications Length Inside F Inch
1-9/32
Specifications Thickness Nut K Inch
3/16
Specifications Weight Each Lbs
0.25
Specifications Width Bow G Inch
7/8
Specifications Width Eye D Inch
11/32
Specifications Width Inside E Inch
17/32
Specifications Width J Inch
1-11/16
Specifications Wll Tons
0.75
CAGE
0T9L4
NAICS
332722
PSC
5306
