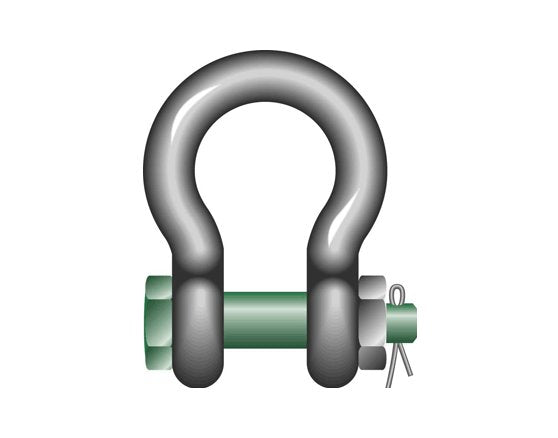

Green Pin Standard Bow Shackles with Safety Bolt

Green Pin Standard Bow Shackles with Safety Bolt

SKU:WIR-871c6c

Premium Green Pin bow shackles for lifting & towing, compliant with EN 13889 & US Fed. Spec. RR-C-271 standards.

Regular price $199.99
Regular price Sale price $199.99
Sale

Initiate Order

Green Pin Standard Bow Shackles with Safety Bolt

Green Pin Standard Bow Shackles with Safety Bolt

$199.99

Quantity: 1

Claim Your Seller Account

Green Pin Standard Bow Shackles with Safety Bolt

Green Pin Standard Bow Shackles with Safety Bolt

$199.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green Pin Standard Bow Shackles with Safety Bolt are engineered to meet EN 13889 standards and US Fed. Spec. RR-C-271 requirements, ensuring exceptional performance and safety. These shackles, hot-dip galvanized for durability, are made in Holland and feature a Working Load Limit (WLL) of 25 tons. With precise dimensions and a weight of 31.34 lbs each, these shackles are ideal for lifting and towing applications, offering reliability and robustness in every use.

Product Specifications

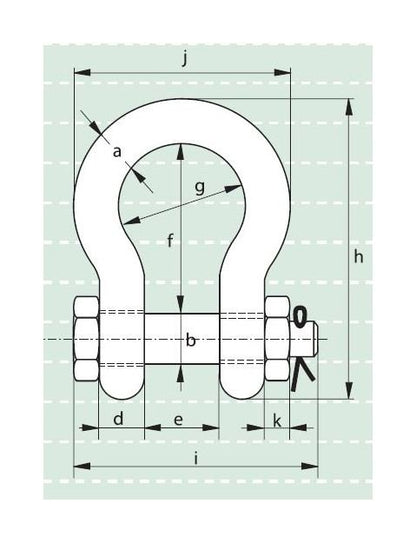

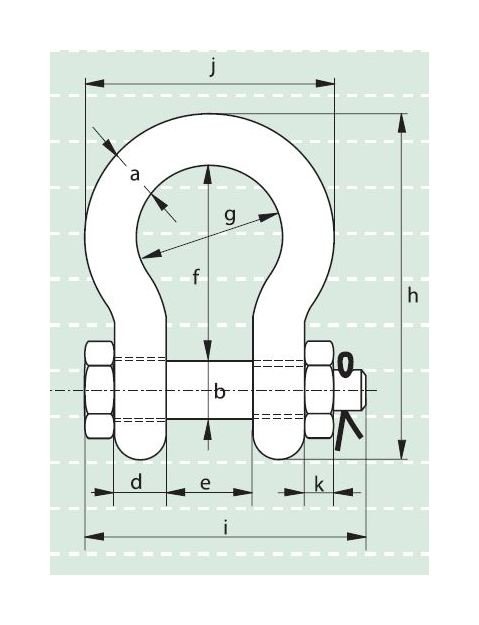

Specifications Diam Bow A Inch
1-3/4

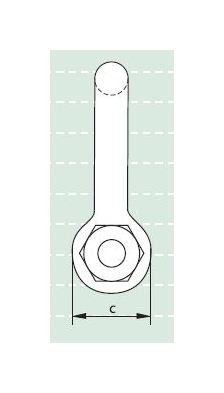

Specifications Diam Eye C Inch
4-1/8
Specifications Diam Pin B Inch
2
Specifications Length Bolt I Inch
9-19/32
Specifications Length H Inch
12-11/32
Specifications Length Inside F Inch
7
Specifications Thickness Nut K Inch
1-5/16
Specifications Weight Each Lbs
31.34
Specifications Width Bow G Inch
4-15/16
Specifications Width Eye D Inch
1-25/32
Specifications Width Inside E Inch
2-29/32
Specifications Width J Inch
8-29/32
Specifications Wll Tons
25
CAGE
0T9L4
NAICS
332722
PSC
5306
