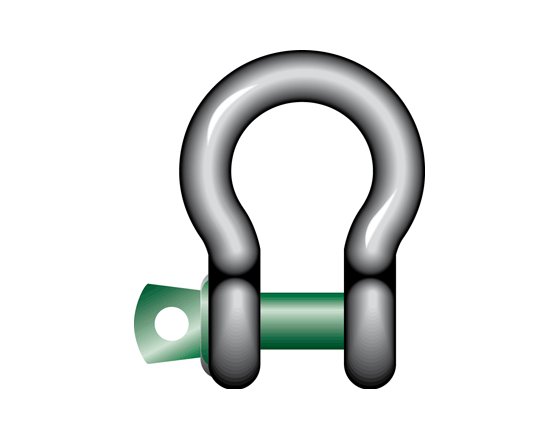

Green Pin Standard Bow Shackles with Screw Collar Pin

Green Pin Standard Bow Shackles with Screw Collar Pin

SKU:WIR-b3def1

High-quality Green Pin Bow Shackles with Screw Collar Pin, EN 13889 & US Fed. Spec RR-C-271 compliant, 9.5t WLL, hot-dipped galvanized finish.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

Green Pin Standard Bow Shackles with Screw Collar Pin

Green Pin Standard Bow Shackles with Screw Collar Pin

$49.99

Quantity: 1

Claim Your Seller Account

Green Pin Standard Bow Shackles with Screw Collar Pin

Green Pin Standard Bow Shackles with Screw Collar Pin

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green Pin Standard Bow Shackles with Screw Collar Pin are precision-engineered in Holland to meet the stringent EN 13889 standard and US Fed. Spec. RR-C-271 requirements. This shackle features a hot-dipped galvanized finish, ensuring exceptional durability and corrosion resistance. With a Working Load Limit of 9.5 tons, a 1-1/8'' bow diameter, and a 1-1/4'' pin diameter, this shackle is ideal for heavy-duty lifting and towing applications, making it a reliable choice for industrial and institutional use.

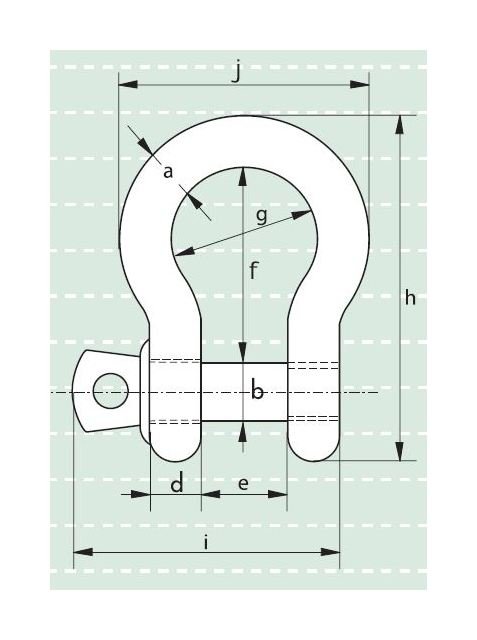

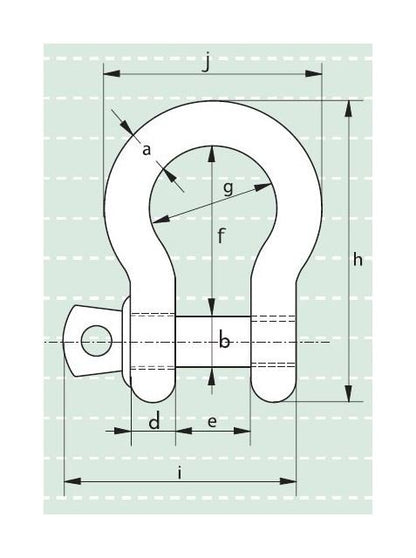

Product Specifications

Specifications Diam Bow A Inch
1-1/8

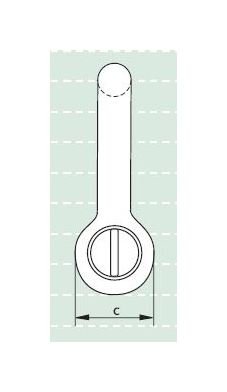

Specifications Diam Eye C Inch
2-5/8
Specifications Diam Pin B Inch
1-1/4
Specifications Length Bolt I Inch
6-3/16
Specifications Length H Inch
7-3/4
Specifications Length Inside F Inch
4-1/4
Specifications Weight Each Lbs
6.97
Specifications Width Bow G Inch
2-15/16
Specifications Width Eye D Inch
1-1/8
Specifications Width Inside E Inch
1-7/8
Specifications Width J Inch
5-3/8
Specifications Wll Tons
9.5
CAGE
0T9L4
NAICS
332999
PSC
5340
