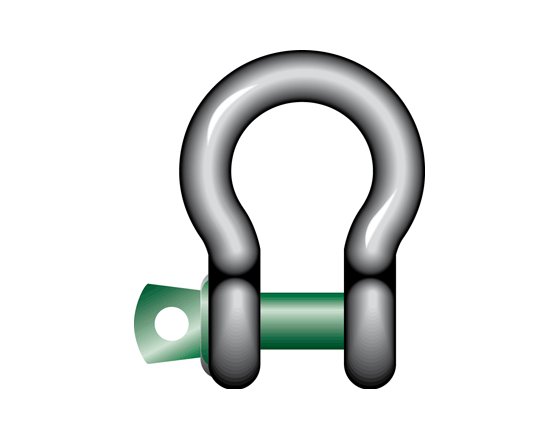

Green Pin Standard Bow Shackles with Screw Collar Pin

Name: Green Pin Standard Bow Shackles with Screw Collar Pin
Brand: Lexco Cable Manufacturing
SKU: WIR-fcbf90
Price: 25.99 USD
Availability: OutOfStock

SKU:WIR-fcbf90

Premium Holland-made bow shackles meeting EN 13889 & US Fed. Spec. RR-C-271. Ideal for lifting/towing, hot-dipped galvanized finish.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green PinÂ® Standard Bow Shackles with Screw Collar Pin are ideal for lifting or towing applications. Manufactured in Holland, these shackles meet EN 13889 and US Fed. Spec. RR-C-271 standards. With a Working Load Limit (WLL) of 1 ton, hot dipped galvanized finish, and precise dimensions, these shackles ensure durability and reliability in demanding environments.

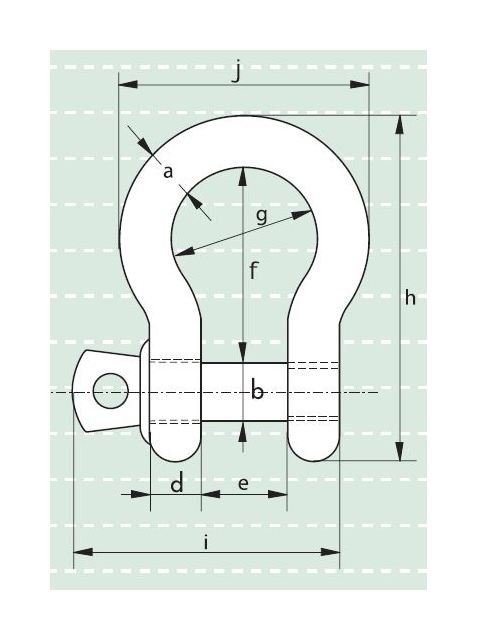

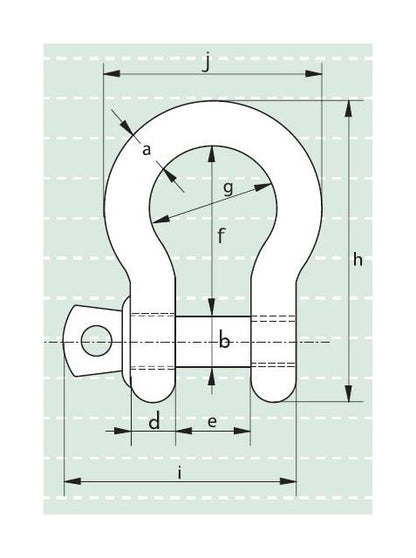

Product Specifications

Specifications Diam Bow A Inch

3/8

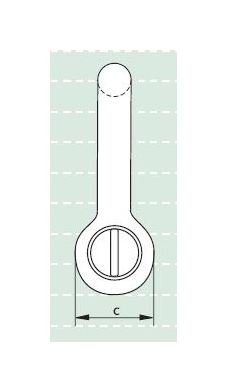

Specifications Diam Eye C Inch

29/32

Specifications Diam Pin B Inch

7/16

Specifications Length Bolt I Inch

2-3/16

Specifications Length H Inch

2-25/32

Specifications Length Inside F Inch

1-7/16

Specifications Weight Each Lbs

0.3

Specifications Width Bow G Inch

Specifications Width Eye D Inch

3/8

Specifications Width Inside E Inch

11/16

Specifications Width J Inch

1-15/16

Specifications Wll Tons

CAGE

0T9L4

NAICS

332999

PSC

5340

Green Pin Standard Bow Shackles with Screw Collar Pin
