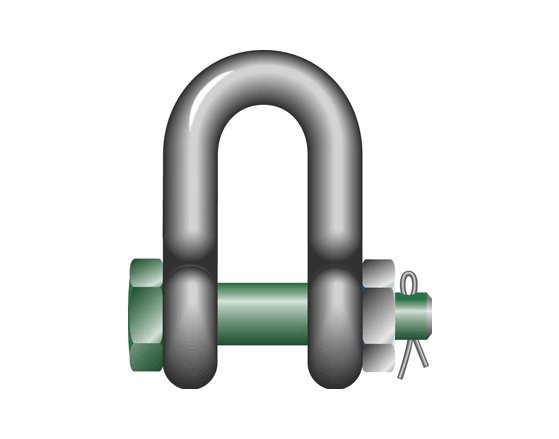

Green Pin Standard Dee Shackles with Safety Bolt

Name: Green Pin Standard Dee Shackles with Safety Bolt
Brand: Lexco Cable Manufacturing
SKU: WIR-399d25
Price: 59.99 USD
Availability: OutOfStock

SKU:WIR-399d25

Premium Green Pin shackles for secure lifting and towing operations. Meets EN 13889 & US Fed. Spec. RR-C-271 standards.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green Pin Standard Dee Shackles with Safety Bolt are meticulously crafted in Holland, meeting EN 13889 standards and US Fed. Spec. RR-C-271 requirements. With a Working Load Limit of 8.5 tons, hot dipped galvanization for durability, and precise dimensions, these shackles ensure secure lifting and towing operations. Ideal for wire rope loops, these shackles offer outstanding performance, reliability, and safety.

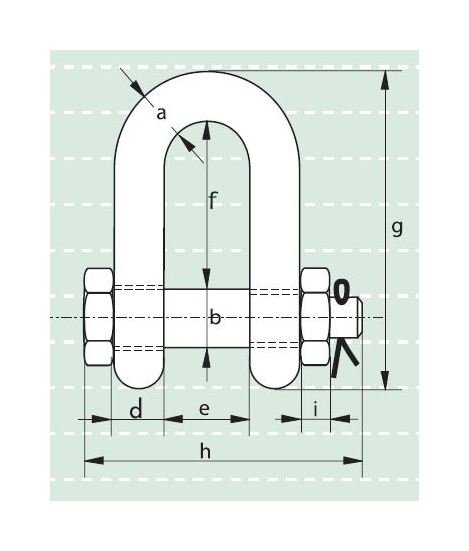

Product Specifications

Specifications Diam Bow A Inch

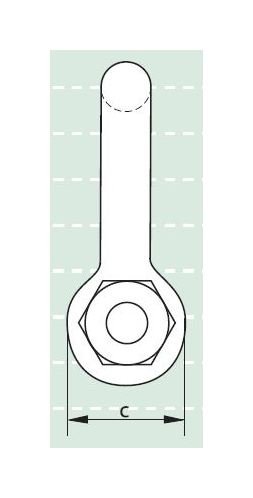

Specifications Diam Eye C Inch

2-11/32

Specifications Diam Pin B Inch

1-1/8

Specifications Length Bolt H Inch

5-15/16

Specifications Length G

6-5/16

Specifications Length Inside F Inch

3-11/32

Specifications Thickness Nut I Inch

Specifications Weight Each Lbs

5.42

Specifications Width Eye D Inch

Specifications Width Inside E Inch

1-23/32

Specifications Wll Tons

8.5

CAGE

0T9L4

NAICS

332722

PSC

5306
