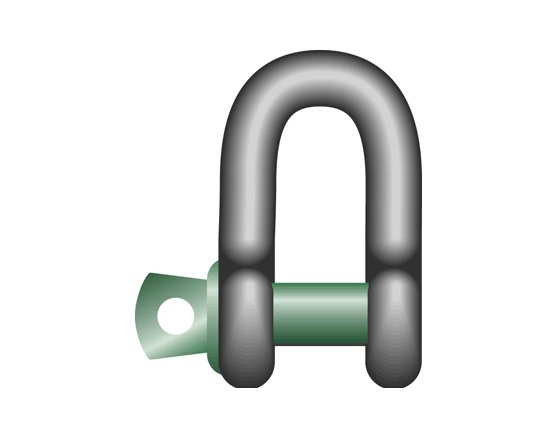

Green Pin Standard Dee Shackles with Screw Collar Pin

Name: Green Pin Standard Dee Shackles with Screw Collar Pin
Brand: Lexco Cable Manufacturing
SKU: WIR-605494
Price: 129.99 USD
Availability: OutOfStock

SKU:WIR-605494

High-quality Green Pin Standard Shackles with Screw Collar Pin for lifting/towing, WLL: 35 tons, Hot-dipped galvanized finish

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green Pin Standard Dee Shackles with Screw Collar Pin is a reliable and durable hardware tool designed to meet the performance requirements of US Federal Specification RR-C-271. Crafted in Holland and finished with hot-dipped galvanization, these shackles have a Working Load Limit (WLL) of 35 tons. With precise dimensions and a weight of 37.17 lbs each, these shackles are ideal for lifting and towing applications on wire rope loops.

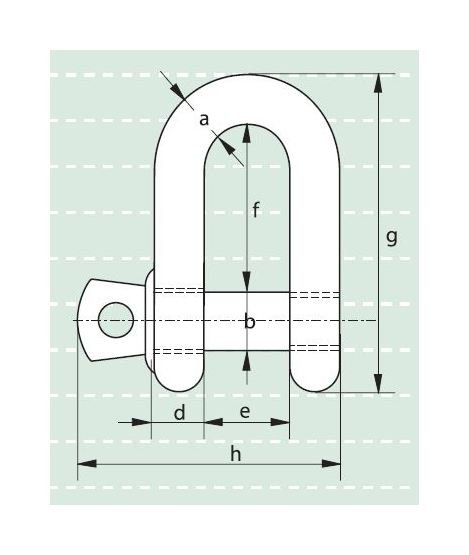

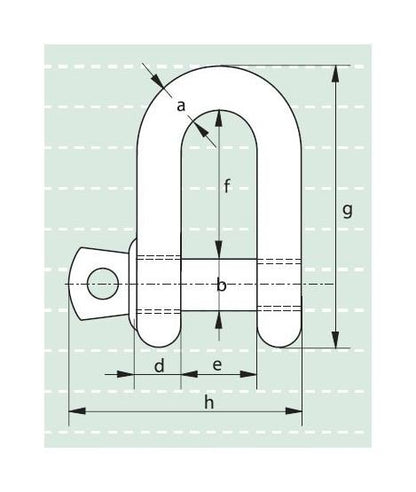

Product Specifications

Specifications Diam Bow A Inch

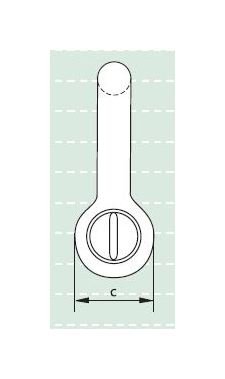

Specifications Diam Eye C Inch

4-11/32

Specifications Diam Pin B Inch

2-1/4

Specifications Length Bolt H Inch

11-3/32

Specifications Length G

13-1/8

Specifications Length Inside F Inch

6-3/4

Specifications Weight Each Lbs

37.17

Specifications Width Eye D Inch

1-31/32

Specifications Width Inside E Inch

3-9/32

Specifications Wll Tons

CAGE

0T9L4

NAICS

332999

PSC

5340

Green Pin Standard Dee Shackles with Screw Collar Pin
