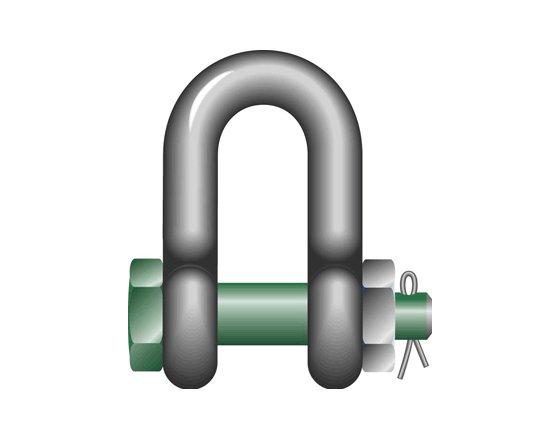

Green Pin Standard Shackles with Safety Bolt - Hot Dip Galvanized

Green Pin Standard Shackles with Safety Bolt - Hot Dip Galvanized

SKU:WIR-b2902f

Green Pin Standard Shackles with Safety Bolt - Heavy-duty shackles with safety bolt for secure lifting and towing operations.

Regular price $55.99
Regular price Sale price $55.99
Sale

Initiate Order

Green Pin Standard Shackles with Safety Bolt - Hot Dip Galvanized

Green Pin Standard Shackles with Safety Bolt - Hot Dip Galvanized

$55.99

Quantity: 1

Claim Your Seller Account

Green Pin Standard Shackles with Safety Bolt - Hot Dip Galvanized

Green Pin Standard Shackles with Safety Bolt - Hot Dip Galvanized

$55.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Green Pin Standard Shackles with Safety Bolt are designed to meet the stringent performance requirements of US Fed. Spec. RR-C-271. Manufactured in Holland, these shackles feature a hot-dipped galvanized finish for enhanced durability and corrosion resistance. With a Working Load Limit (WLL) of 6.5 tons and precise dimensions, including a 7/8 inch bow diameter and a 1 inch pin diameter, these shackles provide reliable support for lifting and towing applications. Built with safety in mind, the shackles are equipped with a sturdy safety bolt for added security.

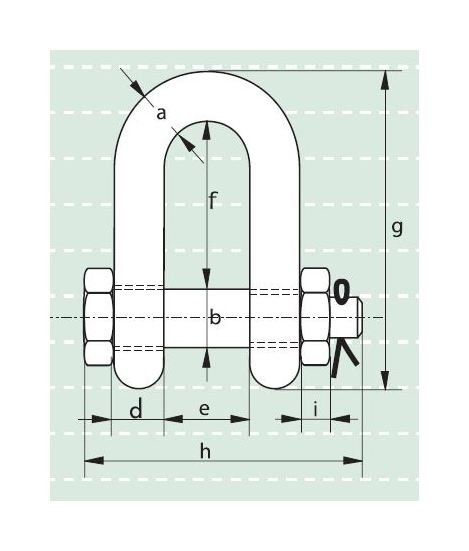

Product Specifications

Specifications Diam Bow A Inch
7/8

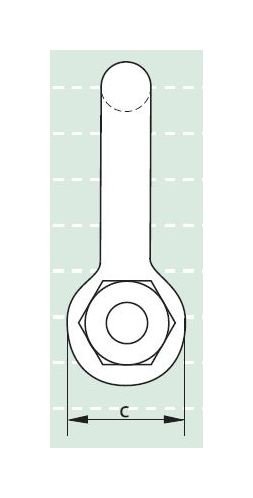

Specifications Diam Eye C Inch
2-3/32
Specifications Diam Pin B Inch
1
Specifications Length Bolt H Inch
5-5/32
Specifications Length G
5-11/16
Specifications Length Inside F Inch
2-7/8
Specifications Thickness Nut I Inch
29/32
Specifications Weight Each Lbs
3.66
Specifications Width Eye D Inch
7/8
Specifications Width Inside E Inch
1-7/16
Specifications Wll Tons
6.5
CAGE
0T9L4
NAICS
332722
PSC
5306
