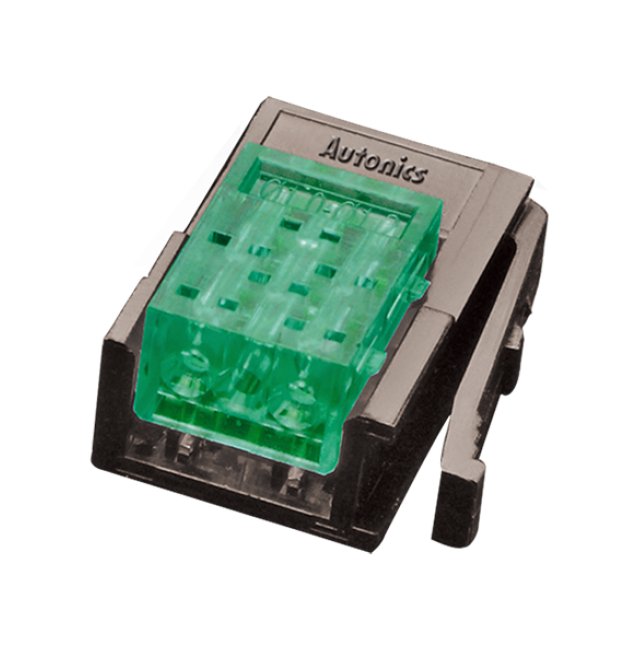

Green Wire Mount Plug Connector, 3-Pin, AWG20-22
Green Wire Mount Plug Connector, 3-Pin, AWG20-22
SKU:PRO-b8bfa8
Reliable Green Wire Mount Plug Connector for institutional needs, featuring C5210 gold terminals, UL94V-0 body, and 3.0A max current.
Regular price
$2.10
Regular price
Sale price
$2.10
Unit price
per
Initiate Order
Green Wire Mount Plug Connector, 3-Pin, AWG20-22
$2.10
Quantity: 1
Claim Your Seller Account
Green Wire Mount Plug Connector, 3-Pin, AWG20-22
$2.10
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Green Wire Mount Plug Connector is a high-quality sensor connector designed for reliability and performance. With a maximum AC/DC voltage of ~250V, this connector features C5210 gold-plated terminals for optimal conductivity. The body is constructed with UL94V-0 rated Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) material, ensuring durability. Meeting GSA requirements and FAR compliance factors, this connector is suitable for institutional/government procurement needs. It offers a maximum rated current of 3.0A and a secure wire range of 22-20 AWG, making it ideal for various connectivity applications.
Product Specifications
Specifications Body Material
Polycarbonate/Acrylonitrile Butadiene Styrene (ABS) (UL94V-0)
Specifications Case Material
Polycarbonate (UL94-V0)
Specifications Color
Green
Specifications Connector Type
Wire Mount Plug
Specifications Cover Color
Green
Specifications Cover Diameter
1.0 to 1.2 mm
Specifications List Price
2.10 USD
Specifications Maximum Alternating Current Acdirect Current Dc V
~250 V
Specifications Maximum Insertion Per Pin
1.96 N | 200 gf
Specifications Maximum Rated Current
3.0 A
Specifications Minimum Extraction Per Pin
0.49 N | 50 gf
Specifications Minimum Terminal Retention
1.4 kgf
Specifications Nominal Cross Section Area
0.32 to 0.5 mm²
Specifications Number Of Pins
3
Specifications Terminal Material
C5210 (Gold 0.2 μm)
Specifications Type
Sensor Connector
Specifications Weight
0.56 lb
Specifications Wire Cross Sectional Area
0.32 to 0.5 mm²
Specifications Wire Size
22-20 AWG
