Greenfield Reduced Wall Steel Flexible Conduit (FMC) - UL Listed

Name: Greenfield Reduced Wall Steel Flexible Conduit (FMC) - UL Listed
Brand: Anamet Electrical, Inc.
SKU: FLE-ab8a9f
Price: 129.99 USD
Availability: OutOfStock

SKU:FLE-ab8a9f

Versatile Greenfield Steel Flexible Conduit with Type RWS and UL Listing for reliable wiring solutions in diverse applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

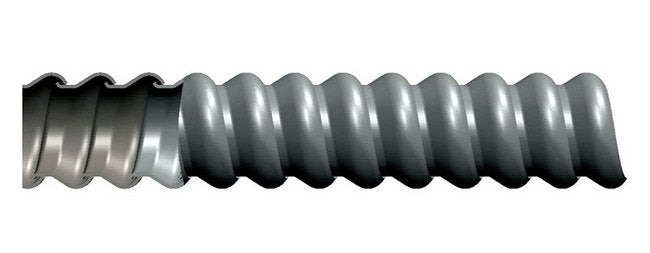

The Greenfield Reduced Wall Steel Flexible Conduit (FMC) is designed for versatility and durability. With a Type RWS specification and UL certification, this conduit offers a flexible raceway for wiring in electrical trade sizes ranging from 3/8" to 4". Made of hot-dipped zinc galvanized steel, it ensures reliability in various applications, meeting NEC requirements. The conduit's high crush resistance, continuous grounding contact, and compatibility with standard connectors make it ideal for exposed, concealed, and specialized settings such as elevators and escalators.

Product Specifications

Application 0

Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+450°F Maximum Temperature

Installation 0

Uses standard flexible metal conduit connectors.Continuous grounding contact.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+45086;F Maximum temperature.

Nec Articles 0

Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding. Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

4.0 in | 101.6 mm

Specifications Approx Weight Per 100 Ft

33 lbs | 14.97 kg

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

5503-22-00 | 69328 | BR-12 | RWS-3/4

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

UL Certification

Specifications Inside Diameter

0.812 to 0.835 in | 20.625 to 21.209 mm

Specifications Jacket Material

None

Specifications Length

25 ft | 7.62 m

Specifications Outside Diameter

1.045 to 1.105 in | 26.543 to 28.067 mm

Specifications Packaging

Standard Coils

Specifications Type

RWS
