Greenfield Reduced Wall Steel Flexible Metal Conduit (FMC)
Greenfield Reduced Wall Steel Flexible Metal Conduit (FMC)
SKU:FLE-c7dfc0
Greenfield Reduced Wall Steel Flexible Metal Conduit (FMC) - Flexible, durable, and UL listed conduit for secure wiring solutions.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Greenfield Reduced Wall Steel Flexible Metal Conduit (FMC)
$299.99
Quantity: 1
Claim Your Seller Account
Greenfield Reduced Wall Steel Flexible Metal Conduit (FMC)
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

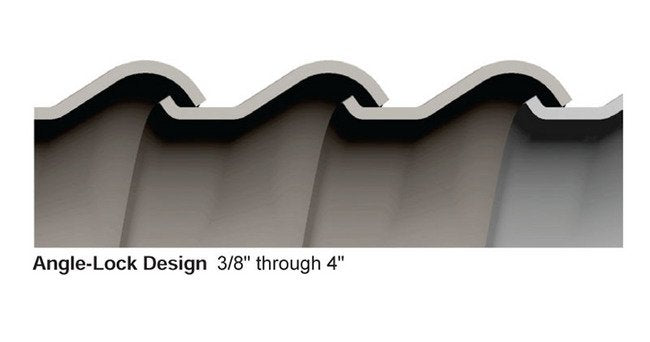

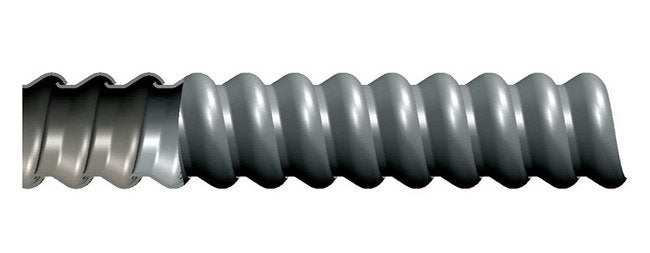

The Greenfield Reduced Wall Steel Flexible Metal Conduit (FMC) is a superior wiring solution designed for flexibility and durability. Constructed of continuously interlocked hot-dipped zinc galvanized steel, this UL listed conduit provides a secure raceway for wiring in electrical trade sizes ranging from 3/8" to 4". With a high crush resistance and capability to withstand temperatures up to +450°F, it is perfect for exposed, concealed, and specialized locations like elevators and escalators, meeting industry standards and compliance requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+450°F Maximum Temperature
Installation 0
Uses standard flexible metal conduit connectors.Continuous grounding contact.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+45086;F Maximum temperature.
Nec Articles 0
Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding. Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
12.5 in | 317.5 mm
Specifications Approx Weight Per 100 Ft
165 lbs | 74.84 kg
Specifications Core Material
Galvanized Steel
Specifications Electrical Trade Size
2-1/2 in | 63 mm
Specifications Industry Certifications
UL Certification
Specifications Inside Diameter
2.500 in | 63.500 to 0.000 mm
Specifications Jacket Material
None
Specifications Length
100 ft | 30 m
Specifications Outside Diameter
2.860 to 3.060 in | 72.644 to 77.724 mm
Specifications Packaging
REEL
Specifications Type
RWS
