Greenfield Type RWA Aluminum Flexible Metal Conduit

Name: Greenfield Type RWA Aluminum Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: FLE-6527fa
Price: 299.99 USD
Availability: OutOfStock

SKU:FLE-6527fa

Greenfield Type RWA Aluminum Flexible Metal Conduit - Flexible, durable, and UL listed. Complies with NEC regulations. Suitable for various applications.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

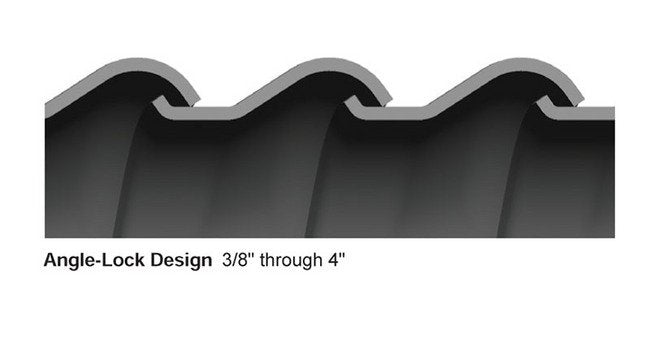

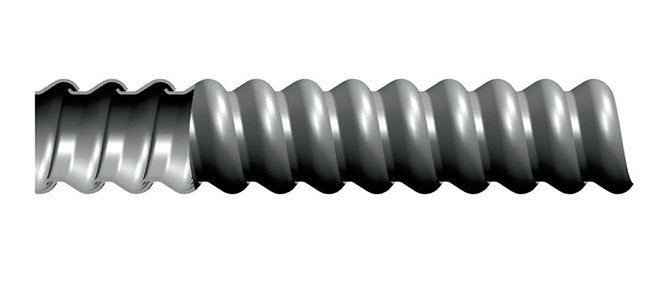

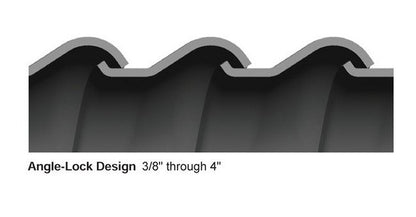

The Greenfield Type RWA Aluminum Flexible Metal Conduit is a flexible and durable solution for electrical installations. Made of continuously interlocked aluminum strip, this conduit is UL listed in sizes ranging from 3/8" to 4". With specifications meeting industry requirements, this conduit offers high crush resistance and can withstand temperatures up to +500°F, making it suitable for a variety of applications. Easy to install with standard connectors, it complies with NEC regulations, including Article 348, and is permitted for use in exposed and concealed locations, elevators, escalators, and more.

Product Specifications

Application 0

Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+500°F Maximum Temperature

Installation 0

Uses standard flexible metal conduit connectors.Light weight, easy to cut.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+50086;F Maximum temperature.

Nec Articles 0

Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding.Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

9.5 lbs | 4.31 kg

Specifications Core Material

Aluminum

Specifications Cross Reference

55-08-21-04 | 5602-60-00 | 69414 | ABR-11 | RWA-1/2

Specifications Electrical Trade Size

1/2 in | 16 mm

Specifications Industry Certifications

UL Certification

Specifications Inside Diameter

0.625 to 0.645 in | 15.875 to 16.383 mm

Specifications Jacket Material

None

Specifications Length

1000 ft | 304.8 m

Specifications Outside Diameter

0.860 to 0.920 in | 21.844 to 23.368 mm

Specifications Packaging

Standard Reels

Specifications Type

RWA
