Greenfield Type RWA Reduced Wall Aluminum Flexible Metal Conduit

Name: Greenfield Type RWA Reduced Wall Aluminum Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: FLE-cf401e
Price: 129.99 USD
Availability: OutOfStock

SKU:FLE-cf401e

Greenfield Type RWA Aluminum Flexible Metal Conduit - UL Listed, High Temperature Resistance

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

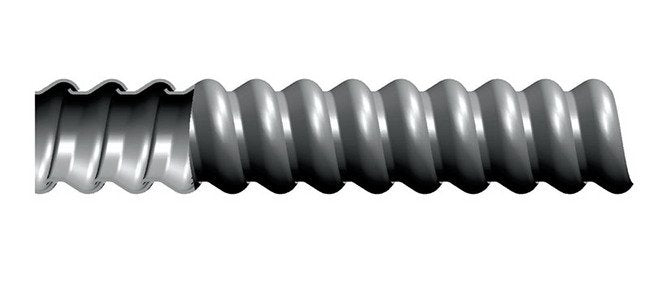

The Greenfield Type RWA Reduced Wall Aluminum Flexible Metal Conduit is crafted from continuously interlocked aluminum strips, offering exceptional flexibility and crush resistance. UL listed in sizes ranging from 3/8" to 4", this conduit is lightweight, easy to install, and suitable for various applications including exposed and concealed locations. Compliant with Article 348 NEC standards and featuring a high maximum temperature of +500°F, it meets the stringent requirements of UL1 and NEC 348, making it an ideal choice for industrial and commercial projects.

Product Specifications

Application 0

Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+500°F Maximum Temperature

Installation 0

Uses standard flexible metal conduit connectors.Light weight, easy to cut.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+50086;F Maximum temperature.

Nec Articles 0

Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding.Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

2.0 in | 50.8 mm

Specifications Approx Weight Per 100 Ft

6.5 lbs | 2.95 kg

Specifications Core Material

Aluminum

Specifications Cross Reference

55-08-20-04 | 5601-60-00 | 69401 | ABR-10 | RWA-3/8

Specifications Electrical Trade Size

3/8 in | 12 mm

Specifications Industry Certifications

UL Certification

Specifications Inside Diameter

0.375 to 0.393 in | 9.525 to 9.982 mm

Specifications Jacket Material

None

Specifications Length

1000 ft | 304.8 m

Specifications Outside Diameter

0.560 to 0.610 in | 14.224 to 15.494 mm

Specifications Packaging

Standard Reels

Specifications Type

RWA
