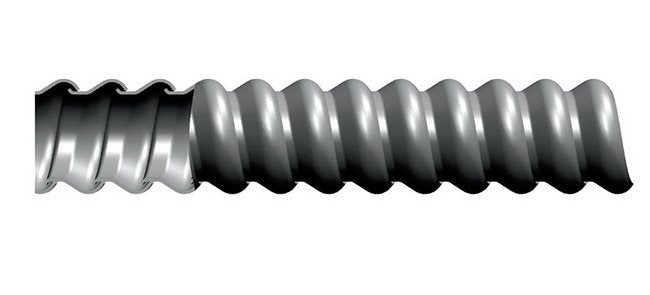

Greenfield Type RWA Reduced Wall Aluminum Flexible Metal Conduit (FMC)

Name: Greenfield Type RWA Reduced Wall Aluminum Flexible Metal Conduit (FMC)
Brand: Anamet Electrical, Inc.
SKU: FLE-7274c2
Price: 89.99 USD
Availability: OutOfStock

SKU:FLE-7274c2

Greenfield Type RWA Aluminum Flexible Metal Conduit - UL Listed, high crush resistance, suitable for diverse installations.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

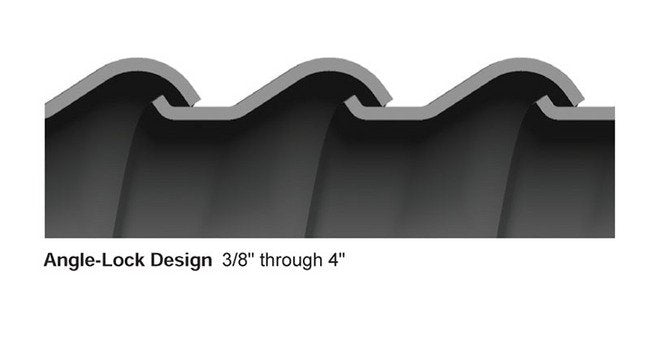

The Greenfield Type RWA Reduced Wall Aluminum Flexible Metal Conduit (FMC) is a high-quality conduit designed for industrial and institutional applications. Made of continuously interlocked aluminum strip, this UL listed conduit comes in a standard length of 100 ft. It features an inside diameter range of 2.000 to 2.080 inches and an outside diameter range of 2.350 to 2.450 inches, ensuring flexibility and durability. With a high crush resistance and a maximum temperature of +500°F, this conduit is suitable for a wide range of installations, from exposed to concealed locations. Meets various NEC articles such as 348 Flexible Metal Conduit and is compatible with standard connectors for easy installation.

Product Specifications

Application 0

Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+500°F Maximum Temperature

Installation 0

Uses standard flexible metal conduit connectors.Light weight, easy to cut.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+50086;F Maximum temperature.

Nec Articles 0

Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding.Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

10 in | 254 mm

Specifications Approx Weight Per 100 Ft

35 lbs | 15.88 kg

Specifications Core Material

Aluminum

Specifications Cross Reference

55-09-28-01 | 5607-22-00 | 69462 | ABR-16 | RWA-2

Specifications Electrical Trade Size

2 in | 53 mm

Specifications Industry Certifications

UL Certification

Specifications Inside Diameter

2.000 to 2.080 in | 50.800 to 52.832 mm

Specifications Jacket Material

None

Specifications Length

100 ft | 7.62 m

Specifications Outside Diameter

2.350 to 2.450 in | 59.690 to 62.230 mm

Specifications Packaging

Standard reel

Specifications Type

RWA

Greenfield Type RWA Reduced Wall Aluminum Flexible Metal Conduit (FMC)
