Greenfield Type RWS Flexible Steel Conduit (FMC)

Name: Greenfield Type RWS Flexible Steel Conduit (FMC)
Brand: Anamet Electrical, Inc.
SKU: FLE-206379
Price: 69.99 USD
Availability: OutOfStock

SKU:FLE-206379

Greenfield Type RWS Flexible Steel Conduit (FMC) - UL Listed, Sizes 3/8" to 4", High Crush Resistance, NEC Compliant

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

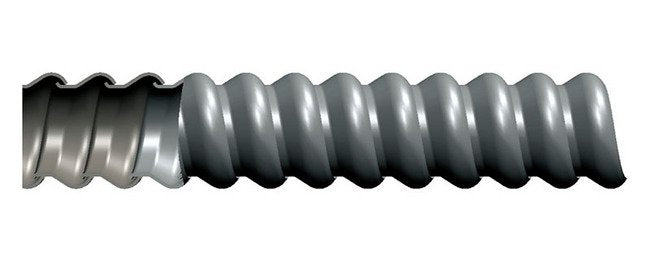

The Greenfield Type RWS Flexible Steel Conduit is a reliable solution for wiring projects, offering a flexible raceway constructed from hot-dipped zinc galvanized steel. This UL Listed conduit, available in electrical trade sizes from 3/8" to 4", provides excellent crush resistance and can be used in exposed, concealed, and specific industrial locations. It complies with NEC Articles 348 and 620.21, offers continuous grounding contact, and withstands temperatures up to +450°F.

Product Specifications

Application 0

Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+450°F Maximum Temperature

Installation 0

Uses standard flexible metal conduit connectors.Continuous grounding contact.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+45086;F Maximum temperature.

Nec Articles 0

Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding. Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

2.0 in | 50.8 mm

Specifications Approx Weight Per 100 Ft

18 lbs | 8.16 kg

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

5501-24-00 | 69308 | BR-10 | RWS-3/8

Specifications Electrical Trade Size

3/8 in | 12 mm

Specifications Industry Certifications

UL Certification

Specifications Inside Diameter

0.375 to 0.393 in | 9.525 to 9.982 mm

Specifications Jacket Material

None

Specifications Length

25 ft | 7.62 m

Specifications Outside Diameter

0.560 to 0.610 in | 14.224 to 15.494 mm

Specifications Packaging

Standard Coils

Specifications Type

RWS

Greenfield Type RWS Flexible Steel Conduit (FMC)
