Greenfield Type RWS Reduced Wall Steel Flexible Conduit

Name: Greenfield Type RWS Reduced Wall Steel Flexible Conduit
Brand: Anamet Electrical, Inc.
SKU: FLE-93cd74
Price: 79.99 USD
Availability: OutOfStock

SKU:FLE-93cd74

Durable Greenfield Type RWS Reduced Wall Steel Flexible Conduit for reliable wiring protection in various applications.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

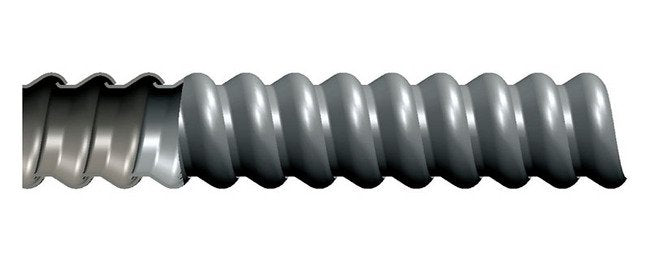

The Greenfield Type RWS Reduced Wall Steel Flexible Conduit is a durable and flexible raceway for wiring made of interlocked hot dipped zinc galvanized steel. This UL listed conduit comes in an electrical trade size of 3/8" and is suitable for use in exposed and concealed locations, elevators, escalators, and more. With a temperature resistance up to +450°F, it meets the requirements of UL and NEC standards, making it a reliable choice for your electrical installations.

Product Specifications

Application 0

Flexible with High Crush Resistance Meets Requirements of UL1 and NEC 348+450°F Maximum Temperature

Installation 0

Uses standard flexible metal conduit connectors.Continuous grounding contact.UL Listed Standard #1;, File # E98045.Manufactured in size range from 3/8" through 4".Complies with Article 348, NEC.Permitted to be used in exposed and concealed locations (Article 348.10); enclosed motor leads (Article 430.245(B); elevators, escalators, wheelchair lifts (Article 620.21).+45086;F Maximum temperature.

Nec Articles 0

Article 250.102, 250.118(5) and 250.134(B) Equipment Grounding. Article 300.22 (D) Information Technology EquipmentArticle 348 Flexible Metal Conduit. (FMC)Article 501.30 (B) Class I Div. 2.Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

2.0 in | 50.8 mm

Specifications Approx Weight Per 100 Ft

18 lbs | 8.16 kg

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

5501-24-00 | 69309 | BR-10 | RWS-3/8

Specifications Electrical Trade Size

3/8 in | 12 mm

Specifications Industry Certifications

UL Certification

Specifications Inside Diameter

0.375 to 0.393 in | 9.525 to 9.982 mm

Specifications Jacket Material

None

Specifications Length

50 ft | 15.24 m

Specifications Outside Diameter

0.560 to 0.610 in | 14.224 to 15.494 mm

Specifications Packaging

Standard Coils

Specifications Type

RWS

Greenfield Type RWS Reduced Wall Steel Flexible Conduit
