Experience exceptional performance with the Greenray Industries OCXO YH1441 Series offering precise frequency control from 10 to 100MHz. This compact SMT crystal oscillator features Stratum 3 compliance, making it ideal for Test & Measurement and Instrumentation applications. With outstanding stability across temperature ranges and low phase noise levels, this OCXO ensures reliable operation in critical systems like ground radar, air traffic control, communication systems, and more.
Product Specifications
Applications Applications
Ground radarAir traffic control systemEmergency wireless communications transceiverClock reference for analyzers or synthesizersEthernet synchronizationCommunication systemGround station RF telemetry systemsMultiband terminalUpconverter
Electrical Characteristics Maximum Direct Current Dc Supply Volt
12.6 V | 15.7 V | 3.6 V | 5.25 V
Electrical Characteristics Maximum Frequency Versus Load For A 1
5 ppb
Electrical Characteristics Maximum Frequency Versus Voltage For
3 ppb
Electrical Characteristics Maximum Harmonics At Sinewave Output
-20 dBc
Electrical Characteristics Maximum Input Power Idle At 25 Degree
2 W
Electrical Characteristics Maximum Input Power Warm Up 5 Min
5 W
Electrical Characteristics Maximum Nominal Frequency At Sinewave
100 MHz
Electrical Characteristics Maximum Supply Current
25 mA
Electrical Characteristics Minimum Direct Current Dc Supply Volt
3.0 V | 4.75 V | 11.4 V | 14.3 V
Electrical Characteristics Minimum Level 50 Ohms Load At Sinewav
0 dBM
Electrical Characteristics Minimum Nominal Frequency At Sinewave
10 MHz
Electrical Characteristics Note For Frequency Stability Please C
Other Stability Available
Electrical Characteristics Aging Per Day After 30 Days
2 ppb
Electrical Characteristics Direct Current Dc Supply Volt
12.0 V | 15.0 V | 3.3 V | 5.0 V
Electrical Characteristics Electronic Frequency Control
5 ppm
Electrical Characteristics Frequency Stability At 0 To 5
100 ppb
Electrical Characteristics Frequency Stability At 10 To
150 ppb
Electrical Characteristics Frequency Stability At 20 To
200 ppb
Electrical Characteristics Frequency Stability At 40 To
500 ppb
Electrical Characteristics Load At Sinewave Output
50 Ohms
Electrical Characteristics Warm Up Time Within 50 Parts
5 min
Environmental And Mechanical Specifications Shock
StandardMIL-STD-202Method, Condition213, Cond CDescription1,500 g, 0.5 ms half-sine
Environmental And Mechanical Specifications Vibration
StandardMIL-STD-202Method, Condition204, Cond ADescription50 g, 20 to 2,000 Hz, swept sine
Features Features
Stratum 3 CompliantIdeal for Test & Measurement, Instrumentation application
Phase Noise Performance Phase Noise At 100 Megahertz Mhz
-160 dBc/Hz
Recommendation And General Information Marking
Line 1: Greenray logoLine 2: ModelLine 3: FrequencyLine 4: Serial Number + Data Code (YYWW)
Recommendation And General Information Operating Temperature
-40 to +70 ºC
Recommendation And General Information Package Finish
Stainless Steel and Nickel-plated Kovar
Recommendation And General Information Package Weight
8 g
Recommendation And General Information Shipping
Tray Pack
Recommendation And General Information Soldering Instruction
Hand | Reflow Soldering
Recommendation And General Information Storage Temperature
-45 to +75 ºC
Recommendation And General Information Terminal Finish
Gold plated is standard. SnPb 63/37 is available

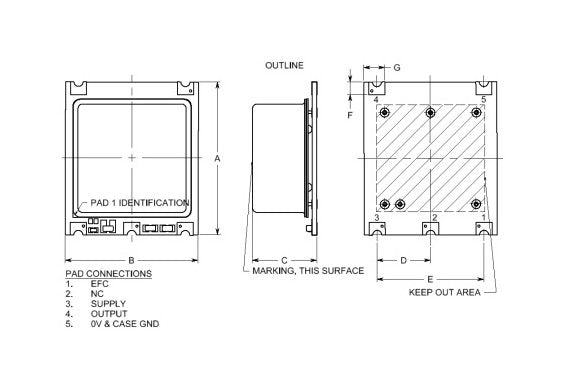

Specifications Sizes Dimensions Details Smt Package
25.4 x 22.1 mm
