Greenray Industries TCXO 100MHz Crystal Oscillator
Greenray Industries TCXO 100MHz Crystal Oscillator
SKU:TCX-4fc00d
Ultra-reliable TCXO 100MHz Crystal Oscillator for high-vibration applications with superior phase noise performance.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Greenray Industries TCXO 100MHz Crystal Oscillator
$249.99
Quantity: 1
Claim Your Seller Account
Greenray Industries TCXO 100MHz Crystal Oscillator
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Greenray Industries TCXO 100MHz Crystal Oscillator, model T1282, is designed for high vibration and shock-sensitive applications, offering ultra-low acceleration sensitivity and superior phase noise performance. With a rugged and radiation-tolerant package, this TCXO ensures reliable operation in high orbit transponders, LEO micro/nano satellites, and RF telemetry systems. Its features include 50 krad (Si) total ionizing dose tolerance, precise electronic frequency control, and excellent phase noise performance under extreme environmental conditions. Ideal for institutional and government buyers requiring high reliability and performance.
Product Specifications
Applications Applications
High orbit transpondersLow orbit satellites (nano/micro satellites)RF telemetry systemsMultiband terminalUpconverter
Benefits Benefits
TCXO performance in a rugged, go-anywhere, radiation tolerant packageIdeal for high orbit transponders, LEO micro/nano satellites and more
Direct Current Dc Supply Maximum Direct Current Dc Supply Voltag
3.6 V | 5.25 V
Direct Current Dc Supply Maximum Supply Current
30 mA
Direct Current Dc Supply Minimum Direct Current Dc Supply Voltag
3.0 V | 4.75 V
Direct Current Dc Supply Direct Current Dc Supply Voltag
3.3 V | 5.0 V
Electrical Characteristics Maximum Acceleration Sensitivity
0.07 ppb/g | 0.3 ppb/g | 0.8 ppb/g
Electrical Characteristics Maximum Acceleration Sensitivity At N
1 ppm
Electrical Characteristics Maximum Aging Tolerance For 1 Year
1 ppm
Electrical Characteristics Maximum Frequency Versus Load For A 5
0.1 ppm
Electrical Characteristics Maximum Frequency Versus Voltage For
0.3 ppm
Electrical Characteristics Maximum Level At 15 Power Factor Pf L
0.2 "0" Level V
Electrical Characteristics Maximum Nominal Frequency At Compleme
100 MHz
Electrical Characteristics Maximum Risefall Time
10 ns
Electrical Characteristics Minimum Level At 15 Power Factor Pf L
VDD-0.2 "1" Level V
Electrical Characteristics Minimum Nominal Frequency At Compleme
40 MHz
Electrical Characteristics Note For Frequency Stability
Other stability available, please contact factory
Electrical Characteristics Note For Maximum Acceleration Sensiti
Acceleration Sensitivity is worst axis tested at 90 Hz, 10 g
Electrical Characteristics Note For Electronic Frequency
EFC = 0 to VDD Positive slope
Electrical Characteristics Electronic Frequency Control
5 ppm
Electrical Characteristics Frequency Stability At 20 To
3 ppm
Electrical Characteristics Frequency Stability At 40 To
5 ppm
Environmental Shock
StandardMIL-STD-202FMethod, Condition213, KDescription30 g peak, sawtooth, 11 ms
Environmental Vibration
StandardMIL-STD-202FMethod, Condition214, I.FDescription0.3 PSD, 20.71 g RMS, 3min/axis
Features Features

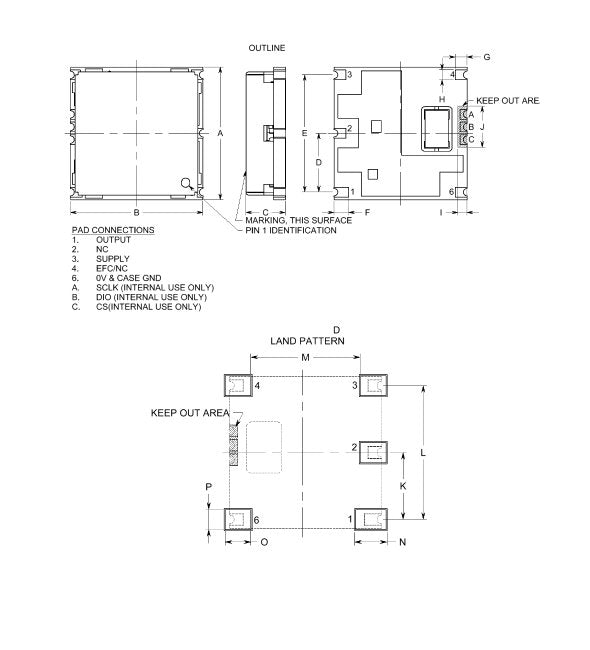

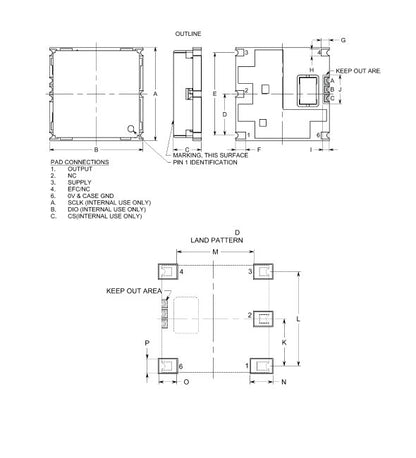

50 krad (Si) total ionizing doseExcellent phase noise performance under high shock/high vibration conditionsRugged package for high reliability; ideally suited for mobile applicationsg-Sensitivity down to a typical 0.07 ppgEFC for precise tuning or phase locking apps17.3 mm sq. packageSquare wave CMOS output
Phase Noise Performance Phase Noise At 10 Megahertz Mhz
-160 dBc/Hz
Radio Frequency Rf Output Sinewave Maximum Symmetry
60 %
Radio Frequency Rf Output Sinewave Minimum Symmetry
40 %
Radio Frequency Rf Output Sinewave Load
15 pF
Radio Frequency Rf Output Sinewave Symmetry
50 %
Recommendation And General Information Marking
Line 1: Greenray logo Line 2: ModelLine 3: FrequencyLine 4: Serial Number + Data Code (YYWW)Line 5: Lot ID
Recommendation And General Information Operating Temperature
-40 to +85 ºC
Recommendation And General Information Package Weight
3 g
Recommendation And General Information Shipping
Tape and Reel | Tray Pack
Recommendation And General Information Soldering Instruction
Reflow
