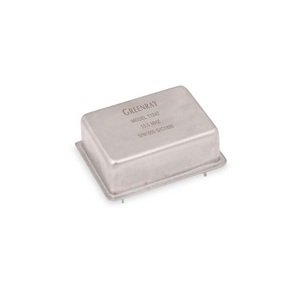

The Greenray Industries TCXO 50MHz Maximum Nominal Frequency Temperature-Compensated Crystal Oscillator, T1247 model, offers exceptional frequency stability over a wide temperature range. With a compact, rugged design and low power consumption, this oscillator provides OCXO-like performance in demanding environments. Its precise frequency control, minimal phase noise, and RF output make it ideal for telecommunications, high-shock electronics, mobile radio, and airborne communications applications.
Product Specifications
Applications Applications
TelecommunicationsHigh-shock electronicsMobile radioMobile instrumentationAirborne communicationsWireless communicationsMicrowave receivers
Direct Current Dc Supply Direct Current Dc Supply Voltage
3.3 V | 5 V
Direct Current Dc Supply Maximum Direct Current Dc Supply Voltag
3.6 V | 5.25 V
Direct Current Dc Supply Maximum Supply Current
35 mA
Direct Current Dc Supply Minimum Direct Current Dc Supply Voltag
3 V | 4.75 V
Direct Current Dc Supply Direct Current Dc Supply Voltag
3.3 V | 5.0 V
Electrical Characteristics Aging Per Year After 14 Days Operatio
1 ppm
Electrical Characteristics Maximum Acceleration Sensitivity
0.7 ppb/g | 2.5 ppb/g
Electrical Characteristics Maximum Frequency Versus Voltage At 5
0.3 ppm
Electrical Characteristics Maximum Nominal Frequency At Compleme
50 MHz
Electrical Characteristics Maximum Warm Up Time
10 ms
Electrical Characteristics Minimum Electronic Frequency Control
7 ppm
Electrical Characteristics Minimum Nominal Frequency At Compleme
10 MHz
Electrical Characteristics Frequency Stability At 20 To
30 ppb
Electrical Characteristics Frequency Stability At 40 To
50 ppb
Environmental Random Vibration
Standard MIL-STD-202Method, Condition214, Cond I-JDescription1 PSD, 37.80 rms G
Environmental Shock
Standard MIL-STD-202Method, Condition213, Cond FDescription1,500 g, 0.5 ms half-sine
Environmental Sine Vibration
Standard MIL-STD-202Method, Condition204, Cond DDescription20 g, 20 to 2,000 Hz
Features Features

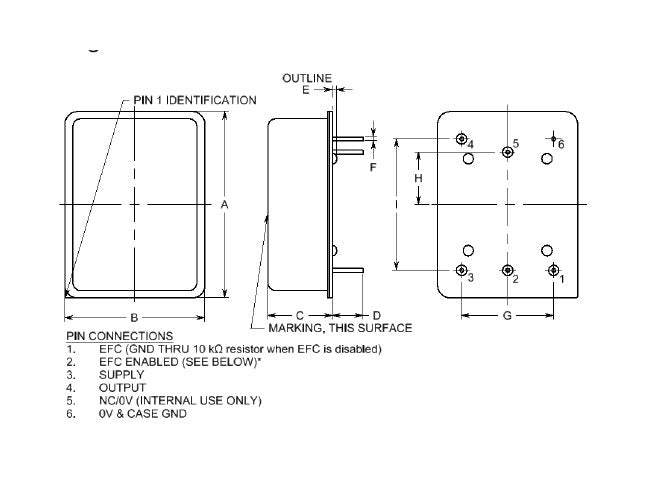

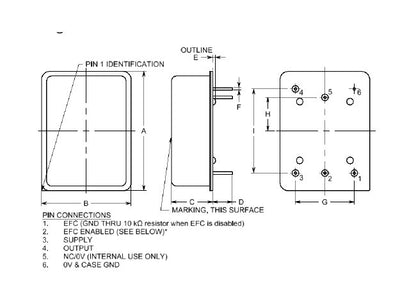

36.1 x 26.9 mm Euro Package, 6-pinCMOS outputExtended, long-term stability performance
Phase Noise Performance Phase Noise At 10 Megahertz Mhz
-155 dBc/Hz
Radio Frequency Rf Output Sinewave Maximum Level At 33 Volt V Su
+ 0.2 V "0" Level
Radio Frequency Rf Output Sinewave Maximum Level At 50 Volt V Su
+ 0.2 V "0" Level
Radio Frequency Rf Output Sinewave Maximum Symmetry For Low Volt
60 %
Radio Frequency Rf Output Sinewave Minimum Level At 33 Volt V Su
+ 2.8 V "1" Level
Radio Frequency Rf Output Sinewave Minimum Level At 50 Volt V Su
+ 4.5 V "1" Level
Radio Frequency Rf Output Sinewave Minimum Symmetry Of Metal Oxi
40 %
Radio Frequency Rf Output Sinewave Note For 33 Volt V Voltage Mi
15 pF Load
Radio Frequency Rf Output Sinewave Load At Complementary
15 pF
Radio Frequency Rf Output Sinewave Symmetry Of Metal Oxi
50 %
Recommendation And General Information Marking
Line 1: Greenray logo + ModelLine 2: FrequencyLine 3: Serial number + Data code (YYWW)
Recommendation And General Information Operating Temperature
-40 to +85 ºC
Recommendation And General Information Package Weight
3 g
Recommendation And General Information Shipping
Tray package
Recommendation And General Information Soldering Instruction
Solder by hand
Specifications Sizes Dimensions Details Smt Compact Package
36.1 x 26.9 mm
