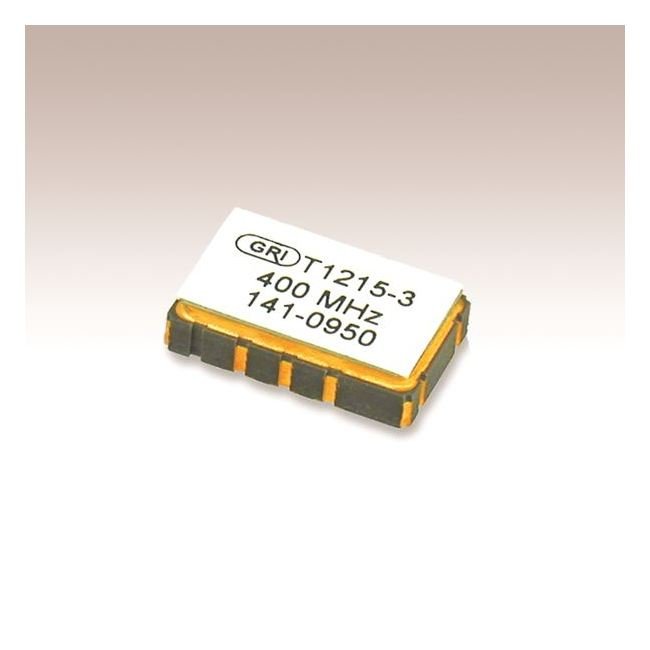

The Greenray Industries TCXO 750 Kilohertz to 800 Megahertz Frequency Temperature-Compensated Crystal Oscillator is a high-performance solution designed for reliable operation under high shock and vibration conditions. With a ruggedized hermetic package and a wide frequency range, this crystal oscillator is suitable for various applications including telecommunications, RF telemetry systems, and satellite communications. It offers precise frequency stability across temperature variations, reduced acceleration sensitivity, and multiple output options to meet diverse industry requirements. This product complies with MIL screening standards, ensuring high reliability and long-term stability performance.
Product Specifications
Applications Applications
TelecommunicationsRF telemetry systemsMultiband terminalUpconverterGNSSSatellite communicationsInstrumentation
Direct Current Dc Supply Maximum Direct Current Dc Supply Voltag
3.6 V | 5.25 V
Direct Current Dc Supply Maximum Offset Voltage For Low Voltage
1.375 V
Direct Current Dc Supply Maximum Supply Current At Complementary
6 mA
Direct Current Dc Supply Maximum Supply Current For Low Voltage
80 mA
Direct Current Dc Supply Minimum Direct Current Dc Supply Voltag
2.7 V | 4.75 V
Direct Current Dc Supply Minimum Offset Voltage For Low Voltage
1.125 V
Direct Current Dc Supply Note For Supply Voltage
+5.0V supply is only available for CS and CL outputs from 10 MHz to 50 MHz
Direct Current Dc Supply Direct Current Dc Supply Voltag
3.3 V | 5.0 V
Direct Current Dc Supply Offset Voltage For Low Voltage
1.250 V
Electrical Characteristics Maximum Acceleration Sensitivity
0.7 ppb/g | 2.5 ppb/g
Electrical Characteristics Maximum Aging For 10 Years
±6 ppm
Electrical Characteristics Maximum Aging For 20 Years
±10 ppm
Electrical Characteristics Maximum Aging Per Year
±1 ppm
Electrical Characteristics Maximum Frequency Versus Voltage For
0.3 ppm
Electrical Characteristics Maximum Level At 15 Power Factor Pf L
0.3 "0" Level
Electrical Characteristics Maximum Nominal Frequency
150 MHz | 50 MHz | 800 MHz
Electrical Characteristics Maximum Risefall Time
4 ns
Electrical Characteristics Maximum Risefall Time For Low Voltage
0.7 ns
Electrical Characteristics Minimum Level At 15 Power Factor Pf L
VDD-0.3 "1" Level
Electrical Characteristics Minimum Nominal Frequency
0.75 MHz | 10 MHz | 20 MHz
Electrical Characteristics Aging Per Year
±0.5 ppm
Electrical Characteristics Risefall Time For Low Voltage
0.8 ns
Radio Frequency Rf Output Sinewave Maximum Differential Output V
450 mV
Radio Frequency Rf Output Sinewave Maximum Output Voltage For Lo
VDD-1.620 "0" level V
Radio Frequency Rf Output Sinewave Maximum Symmetry For Low Volt
55 %
Radio Frequency Rf Output Sinewave Minimum Differential Output V
250 mV
Radio Frequency Rf Output Sinewave Minimum Output Voltage
0.3 Vpp
Radio Frequency Rf Output Sinewave Minimum Output Voltage For Lo
VDD-1.025 "1" level V
Radio Frequency Rf Output Sinewave Minimum Symmetry For Low Volt
45 %
Radio Frequency Rf Output Sinewave Differential Output V
350 mV
Radio Frequency Rf Output Sinewave Output Voltage
10 Vpp
Radio Frequency Rf Output Sinewave Symmetry For Low Volt
50 %
