Greenray T1220 TCXO 10-50MHz Temperature-Compensated Crystal Oscillator
Greenray T1220 TCXO 10-50MHz Temperature-Compensated Crystal Oscillator
SKU:TCX-90db43
Greenray T1220 TCXO: Precision performance in a compact design for critical applications
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
Greenray T1220 TCXO 10-50MHz Temperature-Compensated Crystal Oscillator
$139.99
Quantity: 1
Claim Your Seller Account
Greenray T1220 TCXO 10-50MHz Temperature-Compensated Crystal Oscillator
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

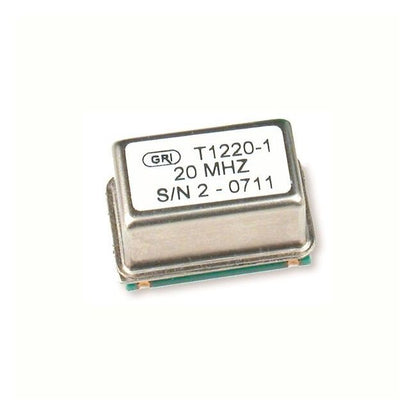

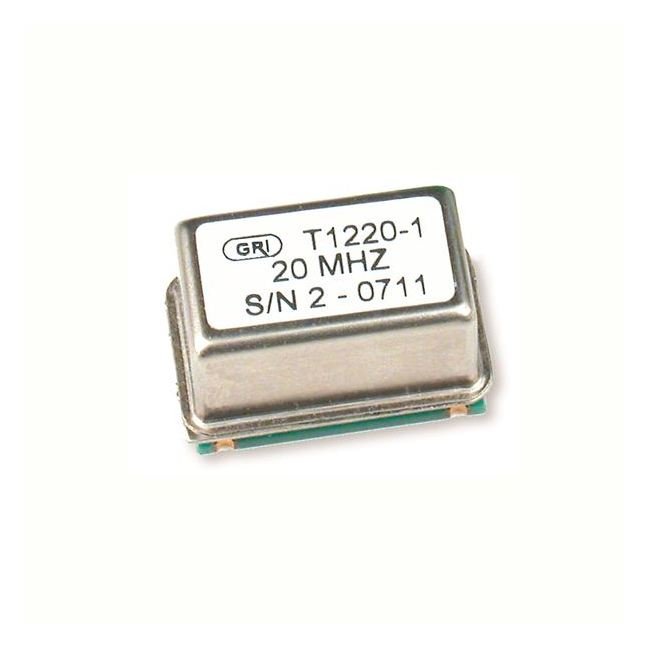

The Greenray T1220 TCXO is a high-precision crystal oscillator offering exceptional frequency stability over a wide temperature range (-40°C to +85°C). With OCXO-like performance in a compact, rugged design, this oscillator features low power consumption and precise frequency control. Ideal for telecommunications, mobile radio, and airborne communications, it comes in a 14-pin DIP package with CMOS or clipped Sine output, ensuring temperature stability to ±0.03 ppm. Trust in its extended, long-term stability for critical applications.
Product Specifications
Applications Applications
TelecommunicationsHigh-shock electronicsMobile radioMobile instrumentationAirborne communicationsWireless communicationsMicrowave receivers
Direct Current Dc Supply Maximum Direct Current Dc Supply Voltag
3.6 V | 5.25 V
Direct Current Dc Supply Maximum Supply Current
25 mA
Direct Current Dc Supply Minimum Direct Current Dc Supply Voltag
3.0 V | 4.75 V
Direct Current Dc Supply Direct Current Dc Supply Voltag
3.3 V | 5.0 V
Electrical Characteristics Maximum Acceleration Sensitivity
0.7 ppb/g | 2.5 ppb/g
Electrical Characteristics Maximum Aging Per Year After 14 Days
±0.5 ppm
Electrical Characteristics Maximum Frequency Versus Load At 10 C
0.1 ppm
Electrical Characteristics Maximum Frequency Versus Voltage For
0.1 ppm
Electrical Characteristics Maximum Nominal Frequency
50 MHz
Electrical Characteristics Maximum Warm Up Time
10 ms
Electrical Characteristics Minimum Nominal Frequency
10 MHz
Electrical Characteristics Note For Nominal Frequency
CMOS SquarewaveClipped Sinewave
Electrical Characteristics Electronic Frequency Control
7 ppm
Electrical Characteristics Frequency Stability At 20 To
50 ppm
Electrical Characteristics Frequency Stability At 40 To
100 ppm
Environmental Random Vibration
Standard - MIL-STD-202Method, Condition - 214, Cond I-JDescription - 1 PSD, 37.80 rms G
Environmental Shock
Standard - MIL-STD-202Method, Condition - 213, Cond FDescription - 1,500 g, 0.5 ms half-sine
Environmental Sine Vibration
Standard - MIL-STD-202Method, Condition - 204, Cond DDescription - 20 g, 20 to 2,000 Hz,
Features Features

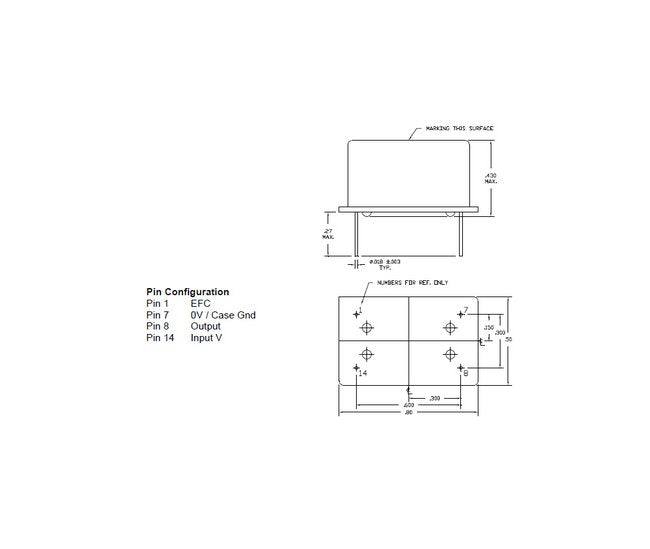

14-pin full DIP package3.3 or 5 VDC supplyCMOS or clipped Sine outputTemperature Stability to ±0.03 ppm (-40°C to +85°C)Extended, long-term stability performance
Phase Noise Performance Phase Noise At 10 Megahertz Mhz
-155 dBc/Hz
Radio Frequency Rf Output Sinewave Maximum Level At 15 Power Fac
+0.2 V "0" level
Radio Frequency Rf Output Sinewave Maximum Symmetry Of Metal Oxi
60 %
Radio Frequency Rf Output Sinewave Minimum Level
0.8 Vpp
Radio Frequency Rf Output Sinewave Minimum Level At 15 Power Fac
+4.5 V "1" Level
Radio Frequency Rf Output Sinewave Load At 10 Kiloohm Ko
10 pF
Radio Frequency Rf Output Sinewave Load At Complementary
15 pF
Radio Frequency Rf Output Sinewave Symmetry Of Metal Oxi
50 %
Recommendation And General Information Marking
Line 1: Greenray logo + ModelLine 2: FrequencyLine 3: Serial number + Data code (YYWW)
Recommendation And General Information Operating Temperature
-40 to 85 ºC
Recommendation And General Information Package Weight
3 g
Recommendation And General Information Shipping
Tray package
Recommendation And General Information Soldering Instruction
Solder by hand
