The Greenray T58 TCXO 52MHz Crystal Oscillator is a high-performance timing solution designed for applications requiring very low g-Sensitivity and tight temperature stability. With a frequency range of 10 to 52 MHz and temperature stability to ±50 Parts Per Billion, this oscillator offers exceptional performance in demanding environments. It features a rugged 5.0 x 3.2 mm package, ensuring durability and reliability. Ideal for telecommunications, mobile radio, airborne communications, and more, this oscillator provides very high frequency stability across a wide temperature range.
Product Specifications
Applications Applications
Telecommunications High-shock electronics Mobile radio Mobile instrumentation Airborne communications Wireless communications Microwave receivers Telecom Stratum 3 Smart munitions
Benefits Benefits
Very high frequency stability and a wide temperature range - ideal for a wide variety of apps including 5G, Stratum3, mobile radio, mobile instrumentation, airborne & wireless comms, high shock electronics, and microwave receivers.
Direct Current Dc Supply Maximum Direct Current Dc At Clipped Si
3 mA
Direct Current Dc Supply Maximum Direct Current Dc At Complement
6 mA
Direct Current Dc Supply Maximum Direct Current Dc Supply Voltag
3.6 V
Direct Current Dc Supply Minimum Direct Current Dc Supply Voltag
3.0 V
Direct Current Dc Supply Direct Current Dc Supply Voltag
3.3 V
Electrical Characteristics Maximum Acceleration Sensitivity
3.0 x10-10/g | 5.0 x10-10/g
Electrical Characteristics Maximum Aging Tolerance For 10 Years
4.0 ppm
Electrical Characteristics Maximum Aging Tolerance For 1 Year
1.0 ppm
Electrical Characteristics Maximum Frequency Versus Reflow After
1.0 ppm
Electrical Characteristics Maximum Nominal Frequency At 25 Degre
52 MHz
Electrical Characteristics Minimum Nominal Frequency At 25 Degre
10 MHz
Electrical Characteristics Frequency Stability At 40 To
0.05 ppm
Electrical Characteristics Frequency Stability At 45 To
0.1 ppm
Electrical Characteristics Voltage Control
8.0 ppm
Environmental Shock
Standard MIL-STD-202GMethod, Condition213DescriptionCustomer Requirements | 30,000 g
Environmental Vibration
Standard MIL-STD-202GMethod, Condition214, I-FDescription20 g, 20 Hz to 2000 Hz, swept sine
Features Features
Low g-Sensitivity and Tight Stability in a compact, SMT package
Phase Noise Performance Phase Noise At 20 Megahertz Mhz
-159 dBc/Hz
Phase Noise Performance Phase Noise Static At 20 Megaher
-160 dBc/Hz
Radio Frequency Rf Output Sinewave Maximum Level At 33 Volt V Su
+ 0.2 V "0" Level
Radio Frequency Rf Output Sinewave Maximum Output Level At Clipp
+ 0.8 Vpp
Radio Frequency Rf Output Sinewave Maximum Symmetry
60 %
Radio Frequency Rf Output Sinewave Minimum Level At 33 Volt V Su
+ 2.8 V "1" Level
Radio Frequency Rf Output Sinewave Minimum Symmetry
40 %
Radio Frequency Rf Output Sinewave Load
15 pF
Radio Frequency Rf Output Sinewave Load At 10 Kiloohm Ko
10 pF
Radio Frequency Rf Output Sinewave Symmetry
50 %
Specifications Frequency Range
10 to 52 MHz
Specifications G Sensitivity
<3 x 10-10 /g

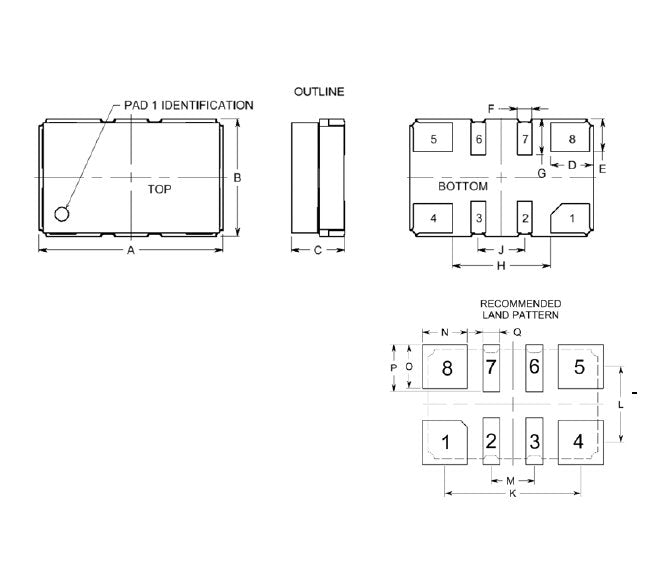

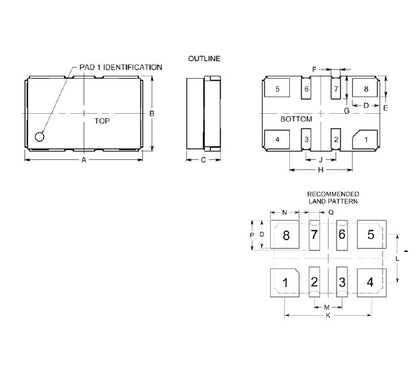

Specifications Rugged Package
5.0 x 3.2 mm
Specifications Temperature Stability To 50 Parts Per Billion Pbb
-40 to 85 ºC
