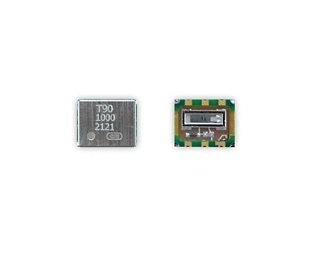

Greenray T90 Series TCXO 50MHz Crystal Oscillator
Greenray T90 Series TCXO 50MHz Crystal Oscillator
SKU:TCX-76970f
Reliable Greenray T90 Series TCXO 50MHz Crystal Oscillator for critical applications requiring high stability and durability.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Greenray T90 Series TCXO 50MHz Crystal Oscillator
$99.99
Quantity: 1
Claim Your Seller Account
Greenray T90 Series TCXO 50MHz Crystal Oscillator
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Greenray T90 Series TCXO 50MHz Crystal Oscillator is a high-performance solution delivering tight stability in a compact and robust design. With a maximum nominal frequency of 50MHz and typical frequency stability of ±0.5 ppm over a wide temperature range, this oscillator ensures reliable performance in demanding conditions. With features such as low g-sensitivity, high shock and vibration resistance, and a temperature stability of ±0.5 ppm over -40 to +85°C, it is ideal for telecommunications, aerospace, and military applications. The T90 Series meets stringent industry standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications Applications
TelecommunicationsHigh-shock electronicsMobile radioMobile instrumentationAirborne communicationsWireless communicationsMicrowave receiversSmart munitions
Direct Current Dc Supply Maximum Direct Current Dc Supply Voltag
5.25 V
Direct Current Dc Supply Maximum Input Current
20 mA
Direct Current Dc Supply Minimum Direct Current Dc Supply Voltag
4.75 V
Direct Current Dc Supply Direct Current Dc Supply Voltag
5.0 V
Electrical Characteristics Maximum Acceleration Sensitivity
2.5 ppb/g
Electrical Characteristics Maximum Aging For 1 Year Tolerance At
1 ppm
Electrical Characteristics Maximum Frequency Versus Reflow After
1 ppm
Electrical Characteristics Maximum Nominal Frequency At 25 Degre
50 MHz
Electrical Characteristics Minimum Nominal Frequency At 25 Degre
10 MHz
Electrical Characteristics Aging For 1 Year Tolerance At
0.5 ppm
Electrical Characteristics Electronic Frequency Control
5 ppm
Electrical Characteristics Frequency Stability At 20 To
0.5 ppm
Electrical Characteristics Frequency Stability At 40 To
0.5 ppm | 1 ppm
Electrical Characteristics Frequency Stability At 55 To
2.0 ppm
Environmental Shock
Standard MIL-STD-202GMethod, Condition213, CNote100 g, 5ms, Sawtooth
Environmental Vibration
Standard MIL-STD-202GMethod, Condition204, ANote0.3 PSD, 20.71 g RMS
Features Features
Tight Stability and Low g-SensitivityHigh Shock and Vibration Options availableTemperature Stability of ±0.5 ppm over -40 to +85°C
Radio Frequency Rf Output Sinewave Maximum Level
+0.2 V "0" level
Radio Frequency Rf Output Sinewave Maximum Symmetry
60 %
Radio Frequency Rf Output Sinewave Minimum Level
+4.1 V "1" level
Radio Frequency Rf Output Sinewave Minimum Symmetry
40 %
Radio Frequency Rf Output Sinewave Load At Complementary
15 pF
Radio Frequency Rf Output Sinewave Symmetry
50 %
Recommendation And General Information Marking
Line 1: ModelLine 2: Serial NumberLine 3: Date Code (YYWW)Line 4: Greenray logo
Recommendation And General Information Operating Temperature Ran
-55 to +95 ºC
Recommendation And General Information Package Weight
< 3 g
Recommendation And General Information Shipping
Tray Pack
Recommendation And General Information Soldering Instruction
Hand Solder | Solder Reflow
Recommendation And General Information Storage Temperature Range
-60 to +105 ºC
Recommendation And General Information Terminal Finish
Gold (E) is standard. SnPb 63/37 (non-RoHS) or AgCu (RoHS) available.

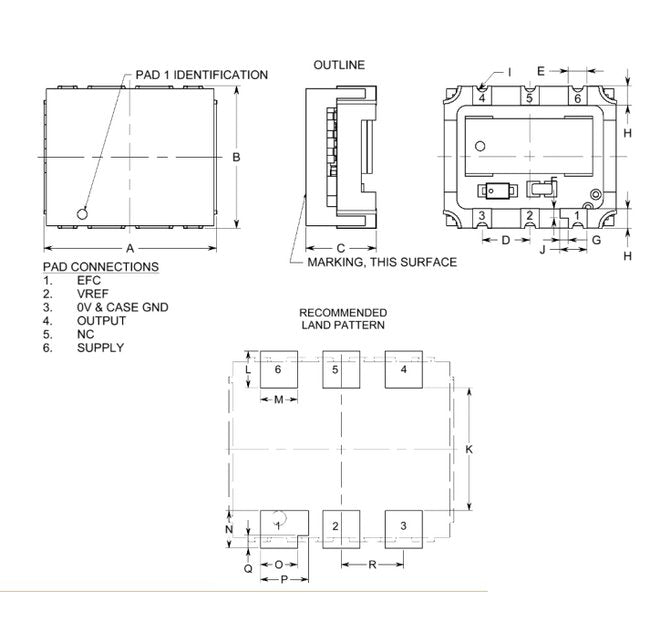

Specifications Package
9.1 x 7.5 mm
Specifications Package Finish
Metal Lid
