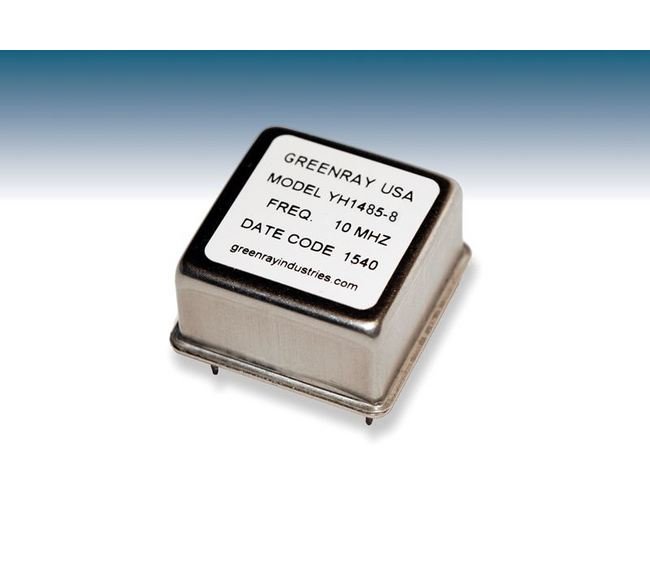

Greenray TCXO 10-300MHz Crystal Oscillator
Greenray TCXO 10-300MHz Crystal Oscillator
SKU:TCX-27ad53
Precision Greenray TCXO 10-300MHz Crystal Oscillator for stable frequency control in compact design.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Greenray TCXO 10-300MHz Crystal Oscillator
$89.99
Quantity: 1
Claim Your Seller Account
Greenray TCXO 10-300MHz Crystal Oscillator
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Greenray TCXO 10-300MHz Crystal Oscillator is a high-performance, temperature-compensated oscillator ideal for precision frequency control. With a frequency range of 10-300 MHz, this oscillator offers tight stability and low profile SMT packaging. It delivers a sinewave output with minimal harmonics and positive slope frequency adjustment, ensuring precise and reliable performance in a compact form factor. Designed with industry-leading specifications, including temperature stability options and electrical characteristics, this TCXO meets the stringent requirements of both consumer and institutional buyers.
Product Specifications
Direct Current Dc Supply Direct Current Dc Input Supply Voltage
+3.3 V | 5.0 V
Electrical Characteristics Aging Per Year
<1 ppm
Electrical Characteristics Frequency Versus Supply
±1 x 10-7 for a 5% Change
Radio Frequency Rf Output Sinewave Note For Symmetry
Squarewave Version
Radio Frequency Rf Output Sinewave Symmetry
50 %
Radio Frequency Rf Output Sinewave Symmetry Tolerance
±10 %
Specifications Maximum Frequency
300 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
0 to Vsupply EFC
Specifications Ordering Example
ZT601-T57-3.3(Model-Stability-Input V)
Specifications Output
Sinewave, 0 dBm minimum into 50 ohms
Specifications Pin Configuration
Pin 1 - Output | Pin 2 - Supply Voltage | Pin 3 - 0 V and Case Gnd | Pin 5 - 0 V and Case Gnd | Pin 6 - 0 V and Case Gnd
Specifications Positive Slope Frequency Adjust
±5 ppm
Specifications Sinewave Version Harmonics
-20 dBc
Specifications Voltage Control
+/-5ppm
Temperature Stability Option G27
Temperature Range: -10 to +60 ºC | Tolerance: ±2 x 10-7
Temperature Stability Option N37
Temperature Range: -20 to +70 ºC | Tolerance: ±3 x 10-7
Temperature Stability Option T16
Temperature Range: -40 to +85 ºC | Tolerance: ±1 x 10-6
Temperature Stability Option T57
Temperature Range: -40 to +85 ºC | Tolerance: ±5 x 10-7
