The Greenray TCXO 10-50MHz Frequency Temperature-Compensated Crystal Oscillator is a precision crystal oscillator designed for ultra-low G-sensitivity applications. With a rugged SMT construction and a frequency range spanning from 10MHz to 50MHz, this oscillator delivers reliable performance in demanding environments. It offers output options of Clipped Sinewave or CMOS Squarewave, with excellent temperature stability across a wide range of -40 to +85 degrees Celsius. The Greenray TCXO is characterized by superior phase noise performance, precise frequency control, and low power consumption, making it an ideal choice for industrial, military, and aerospace applications.
Product Specifications
Direct Current Dc Supply Direct Current Dc Input Supply Voltage
+3.3 V | 5.0 V
Direct Current Dc Supply Maximum Input Current
6 mA
Direct Current Dc Supply Tolerance For Direct Current Dc Supply
±5 %
Electrical Characteristics Aging Per Year After 14 Days Operatio
⤠±5 ppm
Electrical Characteristics Frequency Versus Load
±1 x 10-7 for a 10% Change
Electrical Characteristics Frequency Versus Supply
±1 x 10-7 for a 5% Change
Electrical Characteristics Warm Up Time In 10 Millisecond Ms
Within ±1 ppm
Phase Noise Performance 100 Hertz Hz Frequency Offset
-123 dBc/Hz
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-157 dBc/Hz
Phase Noise Performance 10 Hertz Hz Frequency Offset
-95 dBc/Hz
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-155 dBc/Hz
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-145 dBc/Hz
Phase Noise Performance Note For Phase Noise
Typical 10 MHz
Radio Frequency Rf Output Sinewave Load
15 pF/10 kohm
Radio Frequency Rf Output Sinewave Symmetry
50 %
Radio Frequency Rf Output Sinewave Symmetry Tolerance
±10 %
Specifications Maximum Frequency
50 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
0 to Vcc EFC, 50 kohm input Z
Specifications Ordering Example
T1307-C-3.3-10.0 MHz(Model-Output-Input V-Frequency)
Specifications Output
Clipped Sinewave (Option S) | CMOS Squarewave (Option C)

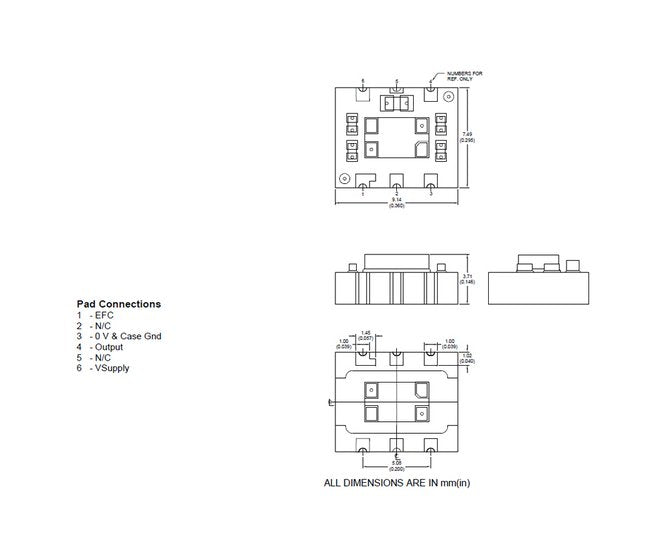

Specifications Pad Connections
1 - EFC | 2 - N/C | 3 - 0 V and Case Gnd | 4 - Output | 5 - N/C | 6 - Supply Voltage
Specifications Positive Slope Frequency Adjust
±7.0 ppm
Specifications Total Gamma G Sensitivity
â¤7 x 10-11 /g
Specifications Voltage Control
+/-5ppm
Temperature Stability Temperature Range
-40 to +85 ºC
Temperature Stability Tolerance For 40 To 85 Degrees Celsius C T
±1 x 10-6
