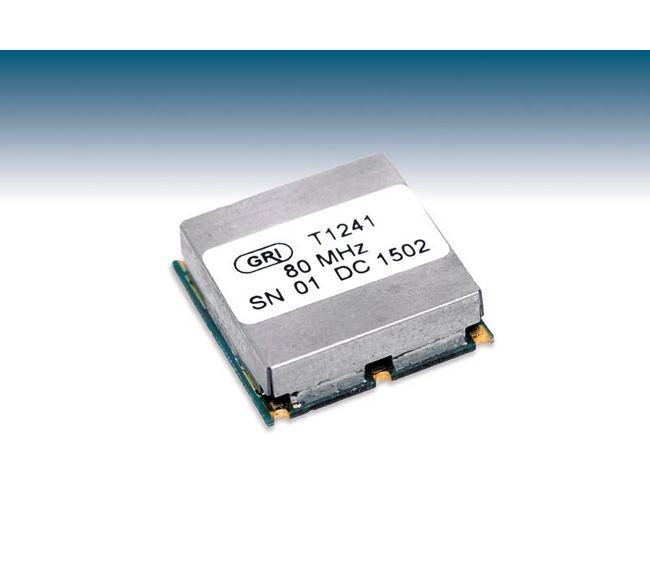

Greenray TCXO 10-50MHz Frequency Temperature-Compensated Crystal Oscillator
Greenray TCXO 10-50MHz Frequency Temperature-Compensated Crystal Oscillator
SKU:TCX-67d371
High-precision Greenray TCXO with 10-50MHz range, RoHS compliant, ideal for RF output applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Greenray TCXO 10-50MHz Frequency Temperature-Compensated Crystal Oscillator
$49.99
Quantity: 1
Claim Your Seller Account
Greenray TCXO 10-50MHz Frequency Temperature-Compensated Crystal Oscillator
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Greenray TCXO 10-50MHz Frequency Temperature-Compensated Crystal Oscillator is a high-quality precision oscillator designed for applications requiring tight stability and low supply current. With a frequency range of 10-50 MHz and a supply voltage of 5.0V, this TCXO delivers reliable performance. Featuring industry-standard RoHS compliance, positive slope frequency adjustment, and a wide range of temperature stability options, it meets the stringent requirements of government and institutional procurement standards. Ideal for radio frequency output applications and environments with demanding vibration and shock conditions.
Product Specifications
Direct Current Dc Supply Direct Current Dc Input Supply Voltage
+3.3 V | 5.0 V
Direct Current Dc Supply Supply Current For High Density Complem
<6 mA
Direct Current Dc Supply Supply Current For Sine
<3 mA
Direct Current Dc Supply Tolerance For Direct Current Dc Supply
±5 %
Electrical Characteristics Aging Per Year At 10 Megahert
<0.5 ppm
Environmental Shock
Per MIL-STD-202G, Method 213, Condition F (Shock level available up to 50000 g!)
Environmental Vibration
Per MIL-STD-202G, Method 214, Condition I-F
Radio Frequency Rf Output Sinewave High Density Complementary Me
50 %
Radio Frequency Rf Output Sinewave Output Level
HCMOS - T71 - +0.2 V Maximum to +4.2 V Minimum (15 pF Load) | SINE - +0.8 V Peak-Peak Typical into 10 pF/100 kohm Load
Radio Frequency Rf Output Sinewave Tolerance For High Density Co
±10 %
Specifications Industry Standards
RoHS (Restriction of Hazardous Substances) Compliant
Specifications Input Voltage
5.0 V
Specifications Low G Sensitivity Option Lg
â¤7 x 10-10 /g
Specifications Maximum Frequency
50 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
Via 0 to Vcc control V, positive slope
Specifications Ordering Example
T71-T27-LG-20.0 MHz(Model-Stability-G Sense-Frequency)
Specifications Output
HCMOS

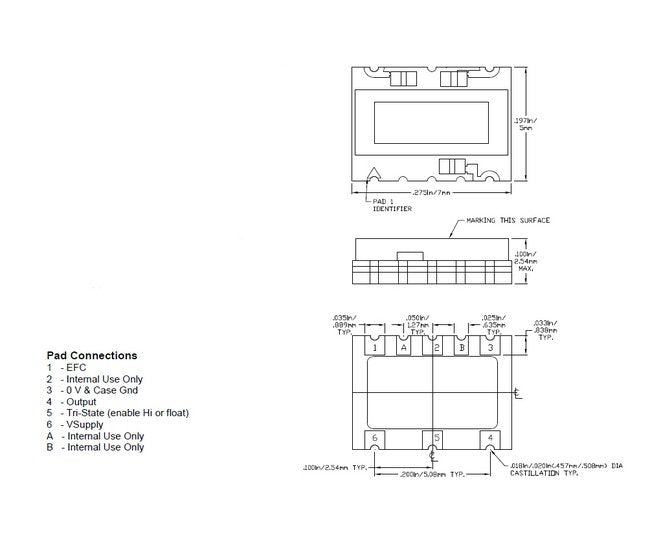

Specifications Pad Connections
1 - EFC | 2 - Internal Use Only | 3 - 0 V and Case Gnd | 4 - Output | 5 - Tri-State (Enable Hi or Float) | 6 - Supply Voltage | A - Internal Use Only | B - Internal Use Only
Specifications Positive Slope Frequency Adjust
±7 ppm
Specifications Standard Sd Option
â¤2.5 x 10-9 /g
Specifications Voltage Control
+/-5ppm
Temperature Stability Note For Temperature Stability
Other stabilities available.
Temperature Stability Option G17
Temperature Range: -10 to +60 ºC | Tolerance: ±0.1 ppm
Temperature Stability Option N17
Temperature Range: -20 to +70 ºC | Tolerance: ±0.1 ppm
Temperature Stability Option T27
Temperature Range: -40 to +85 ºC | Tolerance: ±0.2 ppm
Temperature Stability Option T37
Temperature Range: -40 to +85 ºC | Tolerance: ±0.3 ppm
Temperature Stability Option V16
Temperature Range: -55 to +95 ºC | Tolerance: ±1.0 ppm
