Greenray TCXO 10-50MHz Sinewave Crystal Oscillator
Greenray TCXO 10-50MHz Sinewave Crystal Oscillator
SKU:TCX-587e5b
Greenray TCXO 10-50MHz: Stable, low supply current, compact design for precise frequency control in RF applications.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Greenray TCXO 10-50MHz Sinewave Crystal Oscillator
$59.99
Quantity: 1
Claim Your Seller Account
Greenray TCXO 10-50MHz Sinewave Crystal Oscillator
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Greenray TCXO 10-50MHz Temperature-Compensated Crystal Oscillator (TCXO) offers exceptional stability and low supply current for precise frequency control in a compact 7.00 x 5.00 x 2.01 mm package. With a frequency range from 10 to 50 MHz, positive slope frequency adjustment, and RoHS compliance, this TCXO ensures reliable performance in demanding RF applications. Choose from various temperature stability options like -40 to +85 °C with tolerances as low as ±0.1 ppm. Enjoy seamless integration with pad connections for easy installation and long-term reliability. Ideal for both consumer and institutional buyers seeking top-tier crystal oscillators for advanced RF systems.
Product Specifications
Direct Current Dc Supply Direct Current Dc Input Supply Voltage
+3.3 V | 5.0 V
Direct Current Dc Supply Supply Current For High Density Complem
<6 mA
Direct Current Dc Supply Supply Current For Sine
<3 mA
Direct Current Dc Supply Tolerance For Direct Current Dc Supply
±5 %
Electrical Characteristics Aging Per Year At 10 Megahert
<0.5 ppm
Environmental Shock
Per MIL-STD-202G, Method 213, Condition F (Shock level available up to 50000 g!)
Environmental Vibration
Per MIL-STD-202G, Method 214, Condition I-F
Radio Frequency Rf Output Sinewave High Density Complementary Me
50 %
Radio Frequency Rf Output Sinewave Output Level
SINE - +0.8 V Peak-Peak Typical into 10 pF/100 kohm Load
Radio Frequency Rf Output Sinewave Tolerance For High Density Co
±10 %
Specifications Industry Standards
RoHS (Restriction of Hazardous Substances) Compliant
Specifications Input Voltage
3.3 V
Specifications Low G Sensitivity Option Lg
â¤7 x 10-10 /g
Specifications Maximum Frequency
50 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
Via 0 to Vcc control V, positive slope
Specifications Ordering Example
T72-T27-LG-20.0 MHz(Model-Stability-G Sense-Frequency)
Specifications Output
Clipped Sinewave

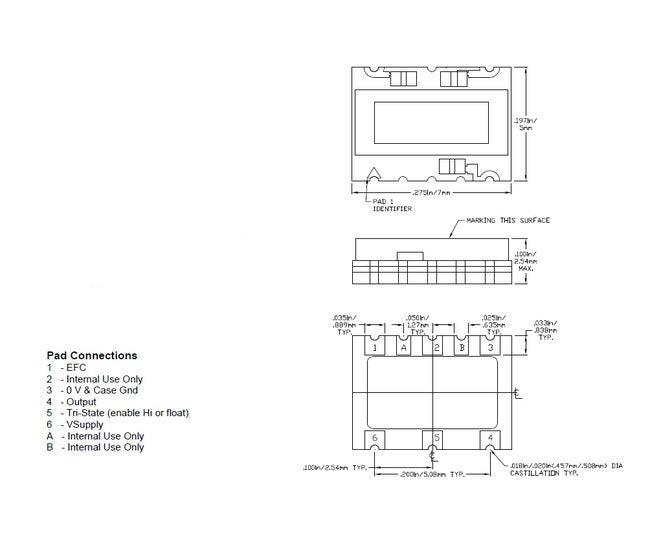

Specifications Pad Connections
1 - EFC | 2 - Internal Use Only | 3 - 0 V and Case Gnd | 4 - Output | 5 - Tri-State (Enable Hi or Float) | 6 - Supply Voltage | A - Internal Use Only | B - Internal Use Only
Specifications Positive Slope Frequency Adjust
±7 ppm
Specifications Standard Sd Option
â¤2.5 x 10-9 /g
Specifications Voltage Control
+/-5ppm
Temperature Stability Note For Temperature Stability
Other stabilities available.
Temperature Stability Option G17
Temperature Range: -10 to +60 ºC | Tolerance: ±0.1 ppm
Temperature Stability Option N17
Temperature Range: -20 to +70 ºC | Tolerance: ±0.1 ppm
Temperature Stability Option T27
Temperature Range: -40 to +85 ºC | Tolerance: ±0.2 ppm
Temperature Stability Option T37
Temperature Range: -40 to +85 ºC | Tolerance: ±0.3 ppm
Temperature Stability Option V16
Temperature Range: -55 to +95 ºC | Tolerance: ±1.0 ppm
