Greenray TCXO 10-50MHz Temperature-Compensated Crystal Oscillator
Greenray TCXO 10-50MHz Temperature-Compensated Crystal Oscillator
SKU:TCX-afd2e2
Reliable Greenray TCXO 10-50MHz crystal oscillator for precise frequency control and stability in demanding applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Greenray TCXO 10-50MHz Temperature-Compensated Crystal Oscillator
$129.99
Quantity: 1
Claim Your Seller Account
Greenray TCXO 10-50MHz Temperature-Compensated Crystal Oscillator
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

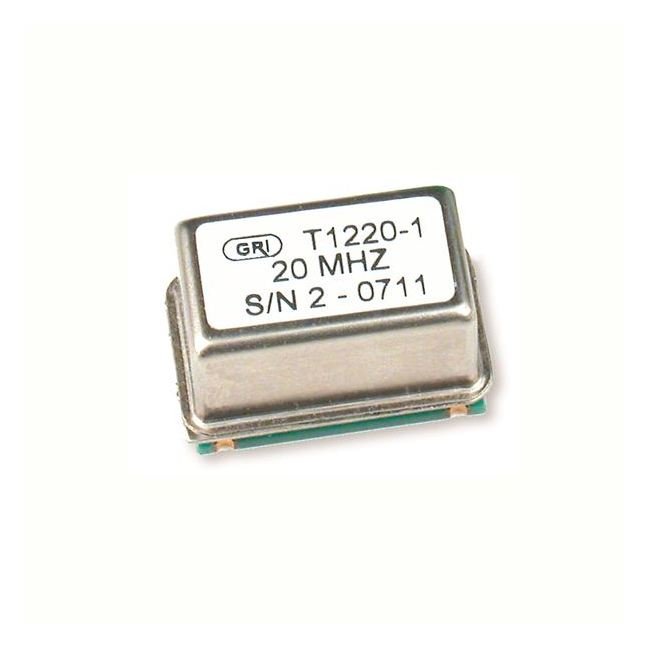

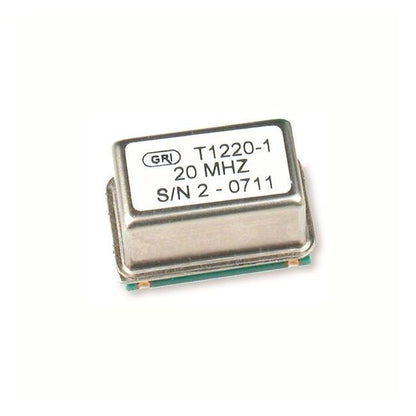

The Greenray TCXO 10-50MHz crystal oscillator offers precise frequency stability and temperature compensation, ideal for demanding applications. With a frequency range of 10MHz to 50MHz, tight stability, and clipped sinewave output, this oscillator ensures reliable performance. Featuring positive slope frequency adjust, voltage control, and exceptional phase noise performance, it meets the stringent requirements of both consumer and institutional buyers. Moreover, its environmental durability and MIL-STD compliance make it a reliable choice for various industries.
Product Specifications
Direct Current Dc Supply Direct Current Dc Input Supply Voltage
+3.3 V | 5.0 V
Direct Current Dc Supply Maximum Input Current
25 mA
Direct Current Dc Supply Tolerance For Direct Current Dc Supply
±5 %
Electrical Characteristics Aging Per Year
±5 x 10-7
Electrical Characteristics Available Lg Option Acceleration Sens
â¤7 x 10-9 /g
Electrical Characteristics Frequency Versus Supply
±1 x 10-7 for a 5% Change
Electrical Characteristics Standard Sd Option Acceleration Sensi
â¤2.5 x 10-9 /g
Environmental Random Vibration
Per MIL-STD-202, Method 112, Condition I-J
Environmental Shock
Per MIL-STD-202, Method 213, Condition F
Environmental Sine Vibration
Per MIL-STD-202, Method 204, Condition D
Phase Noise Performance 100 Hertz Hz Frequency Offset
-120 dBc/Hz
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-155 dBc/Hz
Phase Noise Performance 10 Hertz Hz Frequency Offset
-90 dBc/Hz
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-150 dBc/Hz
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-140 dBc/Hz
Phase Noise Performance Note For Phase Noise
Typical 10 MHz, CMOS
Radio Frequency Rf Output Sinewave Load
10 pF/10 kohm
Radio Frequency Rf Output Sinewave Note For Symmetry
Squarewave Version
Radio Frequency Rf Output Sinewave Symmetry
50 %
Radio Frequency Rf Output Sinewave Symmetry Tolerance
±10 %
Recommendation And General Information Storage Temperature Range
-55 to +95 ºC
Specifications Maximum Frequency
50 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
Via 0 to Vsupply EFC
Specifications Ordering Example
T1221-T58-3.3-10 MHz(Model-Stability-Input V-Frequency)
Specifications Output
Clipped Sinewave

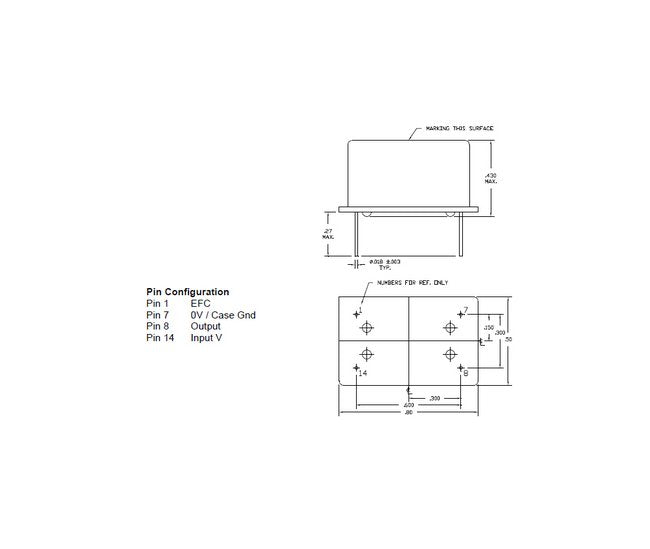

Specifications Pin Configuration
Pin 1 - EFC | Pin 14 - Input Voltage | Pin 7 - 0 V and Case Gnd | Pin 8 - Output
Specifications Positive Slope Frequency Adjust
±7 ppm
Specifications Voltage Control
+/-5ppm
Temperature Stability Note For Temperature Stability
(fmax-fmin)/2xfmin; EFC at center of range. Trim effect â¤Â±0.1 ppm over 0 to vs EFC and temperature. Hysteresis not included.
Temperature Stability Option T38
Temperature Range: -40 to +85 ºC | Tolerance: ±3 x 10-8
Temperature Stability Option T58
Temperature Range: -40 to +85 ºC | Tolerance: ±5 x 10-8
