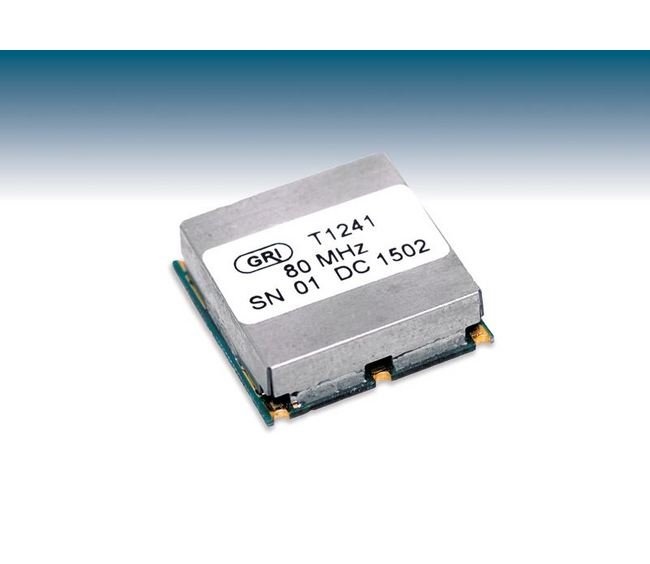

The Greenray TCXO 10-50MHz Frequency Temperature-Compensated Crystal Oscillator is a high-performance solution designed for precise frequency control in challenging environments. With a frequency range of 10 MHz to 50 MHz and a compact size of 9.14 x 7.49 x 3.71 mm, this TCXO offers ultra-low G-sensitivity and a CMOS squarewave output signal. It boasts exceptional stability with features like temperature compensation, +/-5ppm voltage control, and impressive phase noise performance. Whether for consumer electronics or institutional applications, this TCXO delivers reliable performance and accuracy.
Product Specifications
Direct Current Dc Supply Direct Current Dc Input Supply Voltage
+3.3 V | 5.0 V
Direct Current Dc Supply Maximum Input Current
20 mA
Direct Current Dc Supply Tolerance For Direct Current Dc Supply
±5 %
Electrical Characteristics Aging Per Year After 14 Days Operatio
±5 ppm
Electrical Characteristics Frequency Versus Load
±1 x 10-7 for a 10% Change
Electrical Characteristics Frequency Versus Supply
±1 x 10-7 for a 5% Change
Electrical Characteristics Warm Up Time In 10 Millisecond Ms
Within ±1 ppm
Phase Noise Performance 100 Hertz Hz Frequency Offset
-130 dBc/Hz
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-162 dBc/Hz
Phase Noise Performance 10 Hertz Hz Frequency Offset
-100 dBc/Hz
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-162 dBc/Hz
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-155 dBc/Hz
Phase Noise Performance Note For Phase Noise
Typical 10 MHz, +5.0 V
Radio Frequency Rf Output Sinewave Load
15 pF/10 kohm
Radio Frequency Rf Output Sinewave Symmetry
50 %
Radio Frequency Rf Output Sinewave Symmetry Tolerance
±10 %
Specifications Maximum Frequency
50 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
0 to Vcc EFC, 50 kohm input Z
Specifications Ordering Example
T1300-5.0-10.0 MHz(Model-Input V-Frequency)
Specifications Output
CMOS Squarewave
Specifications Pad Connections

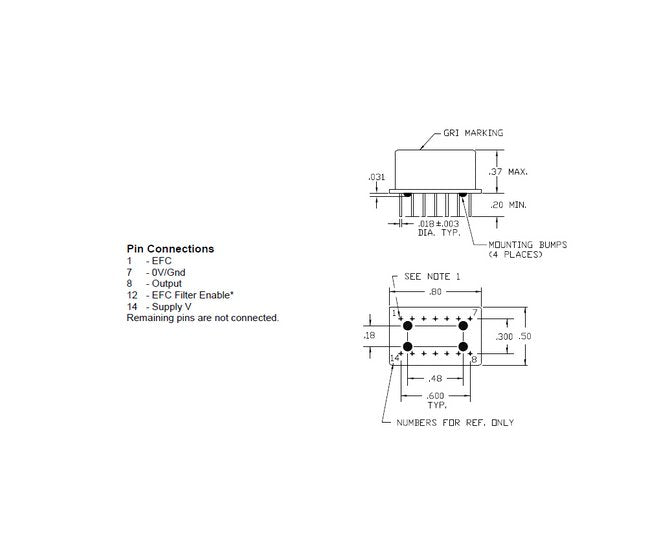

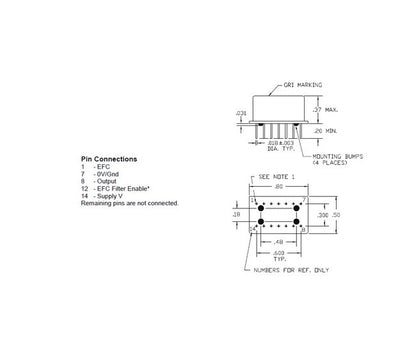

1 - EFC | 12 - EFC Filter Enable (EFC input is through a low pass filter for phase noise reduction. The filter may be disabled for faster response by grounding Pin 12. The filter is enabled if the pin is floating or at logic "1" (+5V)) | 14 - 3 - Supply Voltage | 7 - 0 V/Gnd | 8 - Output | Remaining pins are not connected.
Specifications Positive Slope Frequency Adjust
±6.0 ppm
Specifications Total Gamma G Sensitivity
â¤7 x 10-11 /g
Specifications Short Term
8 x 10-11
Specifications Voltage Control
+/-5ppm
Temperature Stability Temperature Range
-40 to +85 ºC
Temperature Stability Tolerance For 40 To 85 Degrees Celsius C T
±2 x 10-6
