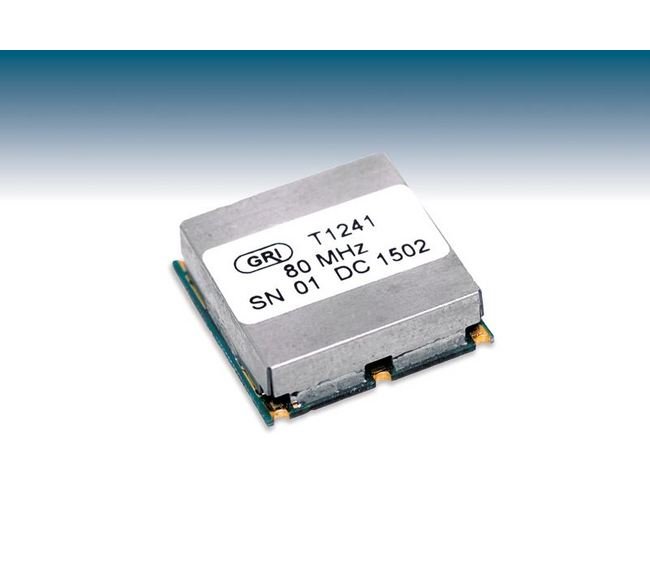

Greenray TCXO 50-100 MHz Temperature-Compensated Crystal Oscillator
Greenray TCXO 50-100 MHz Temperature-Compensated Crystal Oscillator
SKU:TCX-6ab684
Achieve precision and stability with the Greenray TCXO 50-100MHz Crystal Oscillator. Ideal for critical applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Greenray TCXO 50-100 MHz Temperature-Compensated Crystal Oscillator
$129.99
Quantity: 1
Claim Your Seller Account
Greenray TCXO 50-100 MHz Temperature-Compensated Crystal Oscillator
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Greenray TCXO 50-100MHz Frequency Temperature-Compensated Crystal Oscillator is engineered for high-frequency stability and precision in demanding applications. With a sinewave output signal and compact dimensions of 17.27 x 17.27 x 5.08 mm, this oscillator ensures exceptional performance. It boasts voltage stability of ±3.0 ppm, temperature range up to -55 to +95°C, and superior phase noise performance. Ideal for government and institutional procurement, it meets stringent MIL-STD-202F standards for vibration and shock resistance.
Product Specifications
Direct Current Dc Supply Direct Current Dc Input Supply Voltage
5.0 V
Direct Current Dc Supply Supply Current
<25 mA
Electrical Characteristics Aging Per Year
<1.0 ppm
Electrical Characteristics Maximum Total Stability
±5 ppm
Environmental Shock
Per MIL-STD-202F, Method 213 (90g's pk, 1/2 sine, 5 ms)
Environmental Vibration
Per MIL-STD-202F, Method 214, Condition II H, 3 min/axis
Phase Noise Performance 100 Hertz Hz Frequency Offset
-102 dBc/Hz Static
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-145 dBc/Hz Static
Phase Noise Performance 10 Hertz Hz Frequency Offset
-75 dBc/Hz Static
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-140 dBc/Hz Static
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-125 dBc/Hz Static
Phase Noise Performance Note For Phase Noise
Typical at 100 MHz
Radio Frequency Rf Output Sinewave Load Stability
±3.0 ppm
Radio Frequency Rf Output Sinewave Output Level
+3 dBm ±2 dBm into a 50 ohm load
Recommendation And General Information Storage Temperature Range
-55 to +105 ºC
Specifications G Sensitivity
â¤7 x 10-10 /g
Specifications Maximum Frequency
100 MHz
Specifications Maximum Harmonic And Subs
-40 dBc
Specifications Minimum Frequency
50 MHz
Specifications Note For Frequency Adjustment
0 to +5.0 V EFC
Specifications Ordering Example
T121-T57-100.0 MHz(Model-Stability-Frequency)
Specifications Output
Sinewave

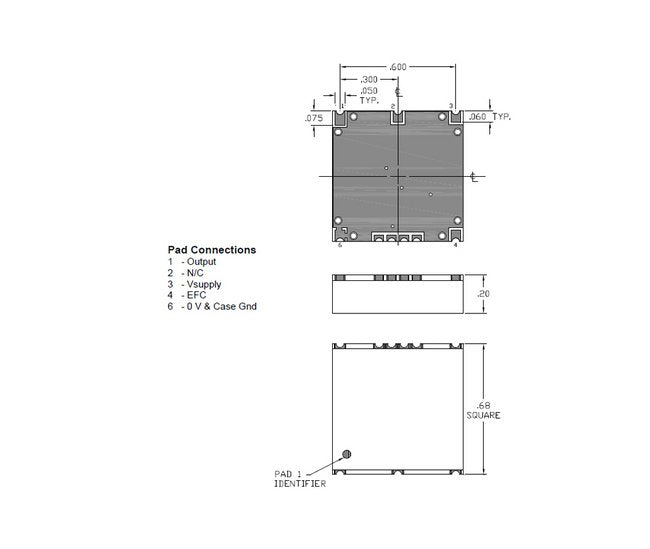

Specifications Pad Connections
1 - Output | 2 - N/C | 3 - Supply Voltage | 4 - EFC | 6 - 0 V and Case Gnd
Specifications Positive Slope Frequency Adjust
±7 ppm
Specifications Voltage Control
+/-5ppm
Specifications Voltage Stability
±3.0 ppm
Temperature Stability Option T16
Temperature Range: -40 to +85 ºC | Tolerance: ±1.0 ppm
Temperature Stability Option T57
Temperature Range: -40 to +85 ºC | Tolerance: ±0.5 ppm
Temperature Stability Option V36
Temperature Range: -55 to +95 ºC | Tolerance: ±3.0 ppm
