Greenray TCXO 650Hz-5.0MHz Temperature-Compensated Crystal Oscillator
Greenray TCXO 650Hz-5.0MHz Temperature-Compensated Crystal Oscillator
SKU:TCX-6a93bd
Precision Greenray TCXO with 650Hz-5.0MHz range, CMOS output, ±3.0 ppm voltage stability, and rugged design.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Greenray TCXO 650Hz-5.0MHz Temperature-Compensated Crystal Oscillator
$49.99
Quantity: 1
Claim Your Seller Account
Greenray TCXO 650Hz-5.0MHz Temperature-Compensated Crystal Oscillator
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your electronic systems with the Greenray TCXO 650Hz to 5.0MHz Temperature-Compensated Crystal Oscillator. This ultra-low frequency TCXO offers a rugged SMT package with a frequency range of 650Hz to 5MHz, providing a CMOS Squarewave output signal. With exceptional voltage stability of ±3.0 ppm and positive slope typical frequency adjust of ±7 ppm, this oscillator ensures precise and reliable performance. Designed for demanding applications, it features various temperature stability options, including options for temperature ranges from -20 to +85 ºC with tolerances as low as ±0.3 ppm. The Greenray TCXO also meets stringent MIL-STD-202F standards for vibration and shock resistance, making it ideal for industrial and government applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Direct Current Dc Supply Direct Current Dc Input Supply Voltage
+3.3 V | 5.0 V
Direct Current Dc Supply Maximum Input Current
<20 mA
Direct Current Dc Supply Tolerance For Direct Current Dc Supply
±5 %
Electrical Characteristics Aging Per Year
<0.5 ppm
Environmental Shock
Per MIL-STD-202F, Method 213 (90g's pk, 1/2 sine, 5 ms)
Environmental Vibration
Per MIL-STD-202F, Method 214, Condition II F
Radio Frequency Rf Output Sinewave Load Stability
±3.0 ppm
Radio Frequency Rf Output Sinewave Output Level
0 to +0.2 Maximum to Vcc -0.2 V Minimum
Radio Frequency Rf Output Sinewave Symmetry
50 %
Radio Frequency Rf Output Sinewave Symmetry Tolerance
±10 %
Recommendation And General Information Storage Temperature Range
-54 to +105 ºC
Specifications Maximum Frequency
5 MHz
Specifications Minimum Frequency
650 Hz
Specifications Note For Frequency Adjustment
With 0 to +3.0 VDC EFC
Specifications Ordering Example
T124-T16-3.3-10.0 kHz(Model-Stability-Input V-Frequency)
Specifications Output
CMOS Squarewave

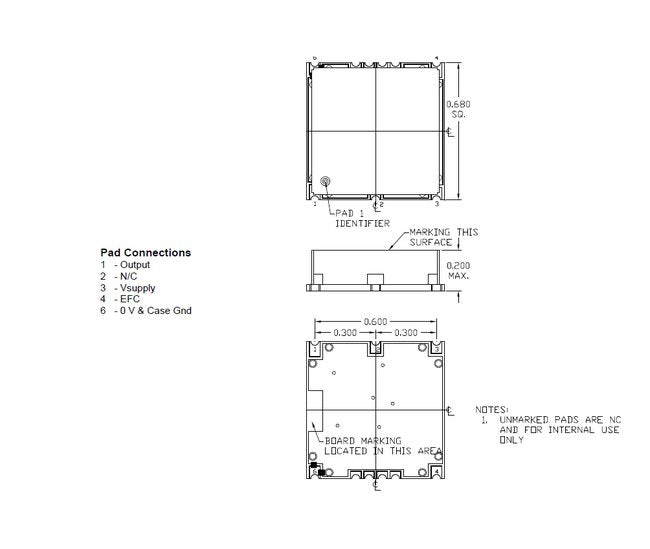

Specifications Pad Connections
1 - Output | 2 - N/C | 3 - Supply Voltage | 4 - EFC | 6 - 0 V and Case Gnd
Specifications Positive Slope Frequency Adjust
±7 ppm
Specifications Voltage Control
+/-5ppm
Specifications Voltage Stability
±3.0 ppm
Temperature Stability Option N37
Temperature Range: -20 to +70 ºC | Tolerance: ±0.3 ppm
Temperature Stability Option N57
Temperature Range: -20 to +70 ºC | Tolerance: ±0.5 ppm
Temperature Stability Option T16
Temperature Range: -40 to +85 ºC | Tolerance: ±1.0 ppm
Temperature Stability Option T37
Temperature Range: -40 to +85 ºC | Tolerance: ±0.3 ppm
Temperature Stability Option T57
Temperature Range: -40 to +85 ºC | Tolerance: ±0.5 ppm
