The Greenray TCXO 10 to 300 Megahertz (MHz) Frequency Temperature-Compensated Crystal Oscillator offers low noise operation with tight stability, suitable for a wide frequency range. Encased in a low-profile SMT package, it provides a square wave output signal in a compact form factor. With temperature stability options ranging from -10 to +85°C, and precise frequency control of +/-5 ppm, this TCXO ensures reliable performance for applications requiring high precision timing.
Product Specifications
Direct Current Dc Supply Direct Current Dc Input Supply Voltage
+3.3 V | 5.0 V
Electrical Characteristics Aging Per Year
<1 ppm
Electrical Characteristics Frequency Versus Supply
±1 x 10-7 for a 5% Change
Radio Frequency Rf Output Sinewave Note For Symmetry
Squarewave Version
Radio Frequency Rf Output Sinewave Symmetry
50 %
Radio Frequency Rf Output Sinewave Symmetry Tolerance
±10 %
Specifications Maximum Frequency
300 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
0 to Vsupply EFC
Specifications Output
Squarewave, ACMOS (Available at 10 to 125 MHz Only)

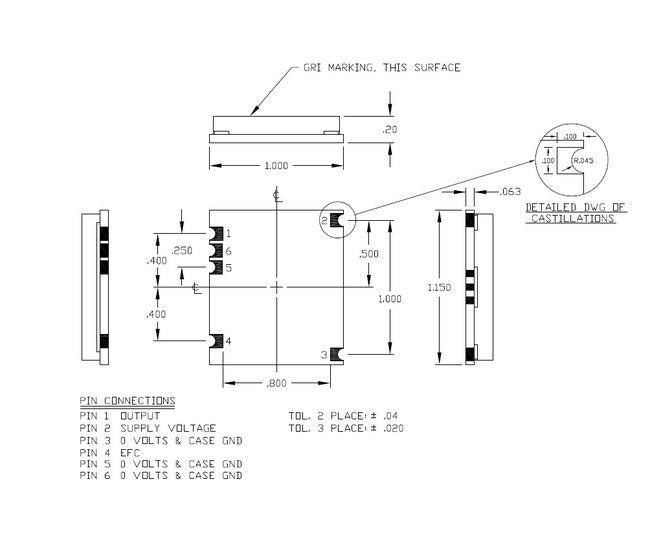

Specifications Pin Configuration
Pin 1 - Output | Pin 2 - Supply Voltage | Pin 3 - 0 V and Case Gnd | Pin 5 - 0 V and Case Gnd | Pin 6 - 0 V and Case Gnd
Specifications Positive Slope Frequency Adjust
±5 ppm
Specifications Sinewave Version Harmonics
-20 dBc
Specifications Voltage Control
+/-5ppm
Temperature Stability Option G27
Temperature Range: -10 to +60 ºC | Tolerance: ±2 x 10-7
Temperature Stability Option N37
Temperature Range: -20 to +70 ºC | Tolerance: ±3 x 10-7
Temperature Stability Option T16
Temperature Range: -40 to +85 ºC | Tolerance: ±1 x 10-6
Temperature Stability Option T57
Temperature Range: -40 to +85 ºC | Tolerance: ±5 x 10-7
