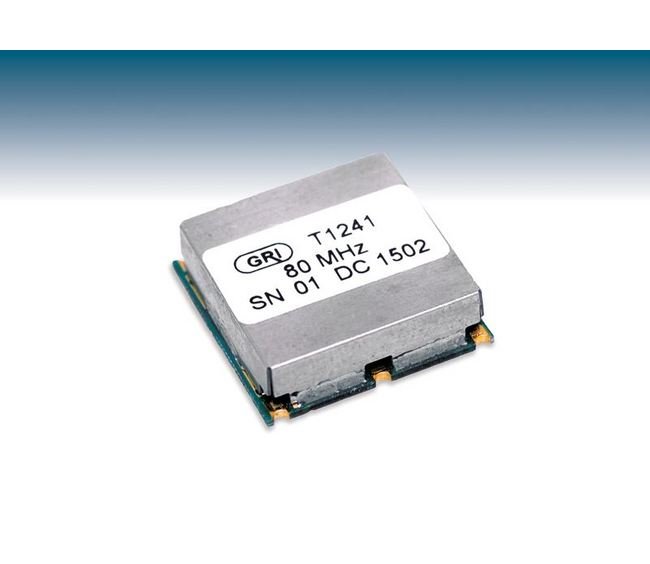

Greenray TCXO Megahertz Frequency Temperature-Compensated Crystal Oscillator
Greenray TCXO Megahertz Frequency Temperature-Compensated Crystal Oscillator
SKU:TCX-87303f
High-precision TCXO with 10-50 MHz frequency range, low phase noise, RoHS compliant, and temperature-stable.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Greenray TCXO Megahertz Frequency Temperature-Compensated Crystal Oscillator
$99.99
Quantity: 1
Claim Your Seller Account
Greenray TCXO Megahertz Frequency Temperature-Compensated Crystal Oscillator
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience high precision and low phase noise with the Greenray TCXO Megahertz Frequency Temperature-Compensated Crystal Oscillator. With a frequency range of 10 to 50 MHz and tight stability, this oscillator delivers reliable performance in various applications. It meets RoHS compliance standards and offers temperature stability options to suit different environmental conditions. The TCXO also features excellent phase noise performance, direct current supply capabilities, and robust environmental resilience.
Product Specifications
Direct Current Dc Supply Direct Current Dc Input Supply Voltage
5.0 V
Direct Current Dc Supply Input Current
<15 mA
Direct Current Dc Supply Note For Input Current
Output sink/source current (15 pF load).
Direct Current Dc Supply Tolerance For Direct Current Dc Supply
±5 %
Electrical Characteristics Aging For 10 Years
<±5.0 ppm
Electrical Characteristics Aging Per Year
<1 ppm
Electrical Characteristics Electronic Frequency Control Efc Char
+0.5 V to +4.5 V EFC | Input I - <50 uA | Input Z - 100 kohms
Electrical Characteristics Frequency Versus Input Voltage
±1 x 10-7 for a 5% Change
Electrical Characteristics Risefall Time
<3 ns
Environmental Note For Environmental
Unit can be reflowed, recommend peak temperature of 220 ºC for 10 sec maximum.
Environmental Random Vibration
Per MIL-STD-202, Method 214, Condition IA
Environmental Shock
Per MIL-STD-202, Method 213, Condition C
Phase Noise Performance 100 Hertz Hz Frequency Offset
-120 dBc/Hz at 50 MHz | -135 dBc/Hz at 10 MHz
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-155 dBc/Hz at 50 MHz | -163 dBc/Hz at 10 MHz
Phase Noise Performance 10 Hertz Hz Frequency Offset
-105 dBc/Hz at 10 MHz | -90 dBc/Hz at 50 MHz
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-150 dBc/Hz at 50 MHz | -165 dBc/Hz at 10 MHz
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-140 dBc/Hz at 50 MHz | -155 dBc/Hz at 10 MHz
Phase Noise Performance Note For Phase Noise
Phase noise can vary depending on required stability. Phase noise will be sample tested only
Radio Frequency Rf Output Sinewave Load
10 to 15 pF
Radio Frequency Rf Output Sinewave Symmetry
50 %
Radio Frequency Rf Output Sinewave Symmetry Tolerance
±10 %
Recommendation And General Information Storage Temperature Range
-55 to +85 ºC
Specifications Industry Standards
RoHS (Restriction of Hazardous Substances) Compliant
Specifications Maximum Frequency
50 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Frequency Adjustment
Settable to nominal for 10 years
Specifications Output
Capable of Sink/Source of up to 15 mA | CMOS Squarewave

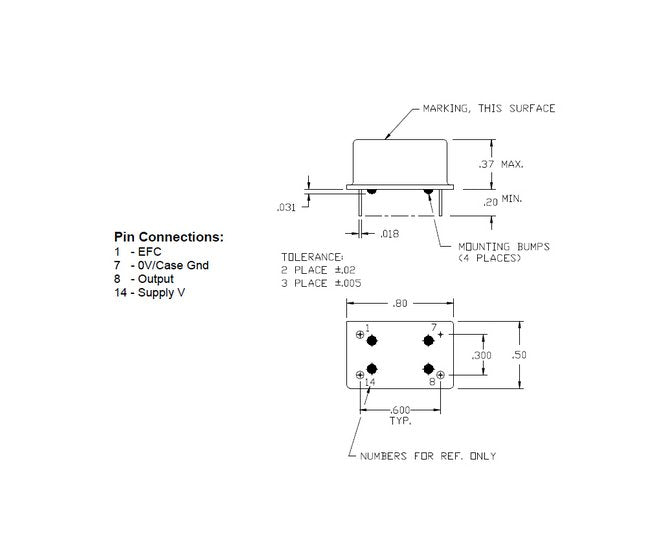

Specifications Pin Configuration
1 - EFC | 14 - Supply Voltage | 7 - 0 V and Case Gnd | 8 - Output
Specifications Positive Slope Frequency Adjust
±5 ppm
Specifications Voltage Control
+/-5ppm
Temperature Stability Note For Temperature Stability
100% testNot all stabilities are available at all frequencies.
Temperature Stability Option B57
Temperature Range: -0 to +50 ºC | Tolerance: ±5 x 10-7
Temperature Stability Option N16
Temperature Range: -20 to +70 ºC | Tolerance: ±1 x 10-6
Temperature Stability Option N26
Temperature Range: -20 to +70 ºC | Tolerance: ±2 x 10-6
Temperature Stability Option T16
Temperature Range: -40 to +85 ºC | Tolerance: ±1 x 10-6
Temperature Stability Option T36
Temperature Range: -40 to +85 ºC | Tolerance: ±3 x 10-6
