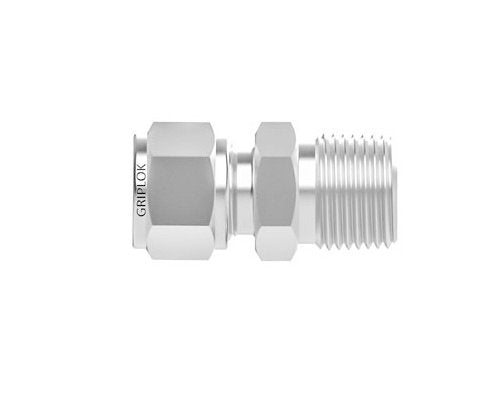

Griplok 1/16 Tube Fitting Male Connector
Griplok 1/16 Tube Fitting Male Connector
SKU:SSP-1c4ff1
Durable Griplok male connector with 1/16 tube fitting x 1/8-27 MNPT, 316 SS construction. Ideal for instrumentation tube fittings.
Regular price
$16.35
Regular price
Sale price
$16.35
Unit price
per
Initiate Order
Griplok 1/16 Tube Fitting Male Connector
$16.35
Quantity: 1
Claim Your Seller Account
Griplok 1/16 Tube Fitting Male Connector
$16.35
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Griplok 1/16 Tube Fitting Male Connector is expertly crafted from high-quality 316 SS, ensuring durability and reliability for various industrial applications. This straight male connector features a 1/16-inch tube fitting on one end and a 1/8-27 MNPT on the other, providing secure and leak-resistant connections. With precise dimensions meeting industry standards, this Griplok connector offers easy installation and maintenance, making it ideal for instrumentation tube fitting applications.

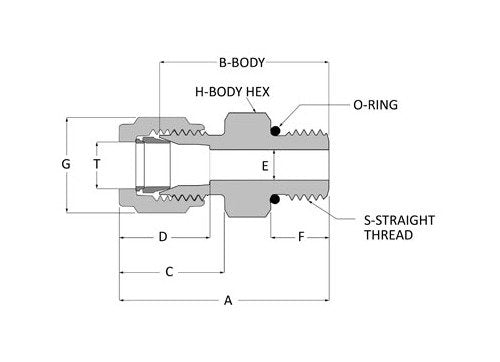

Product Specifications
Dimensions A
1.09 in
Dimensions B
0.88 in
Dimensions C
0.49 in
Dimensions D
0.40 in
Dimensions E
0.05 in
Dimensions F Minimum
0.38 in
Dimensions G
5/16 in
Dimensions H
7/16 in
Dimensions P
1/8 in
Dimensions T
1/16 in
Specifications Body Material
316 SS
Specifications Brand Series
Griplok
Specifications Connection 1 Size
1/16 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/8 in
Specifications Connection 2 Type
MNPT
Specifications End Connections
TF x MNPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications List Price
16.35 USD
Specifications Production Category
1
Specifications Shape
Straight
Category 6
Griplok® Tube Fittings
